HPE StoreOnce 4500 Backup system
The HPE StoreOnce 4500 Backup system consists of a server unit with 12 x 2TB disks. The
disks in the first two slots are used for the operating system and filesystem; the remaining disks
are used for data storage. It supports connection of up to three expansion shelves (Capacity
Upgrade Kits); storage must be expanded when an additional shelf is added to the base
configuration. The expansion shelf has either 12 x 2 TB disks or 12 x 4 TB disks.

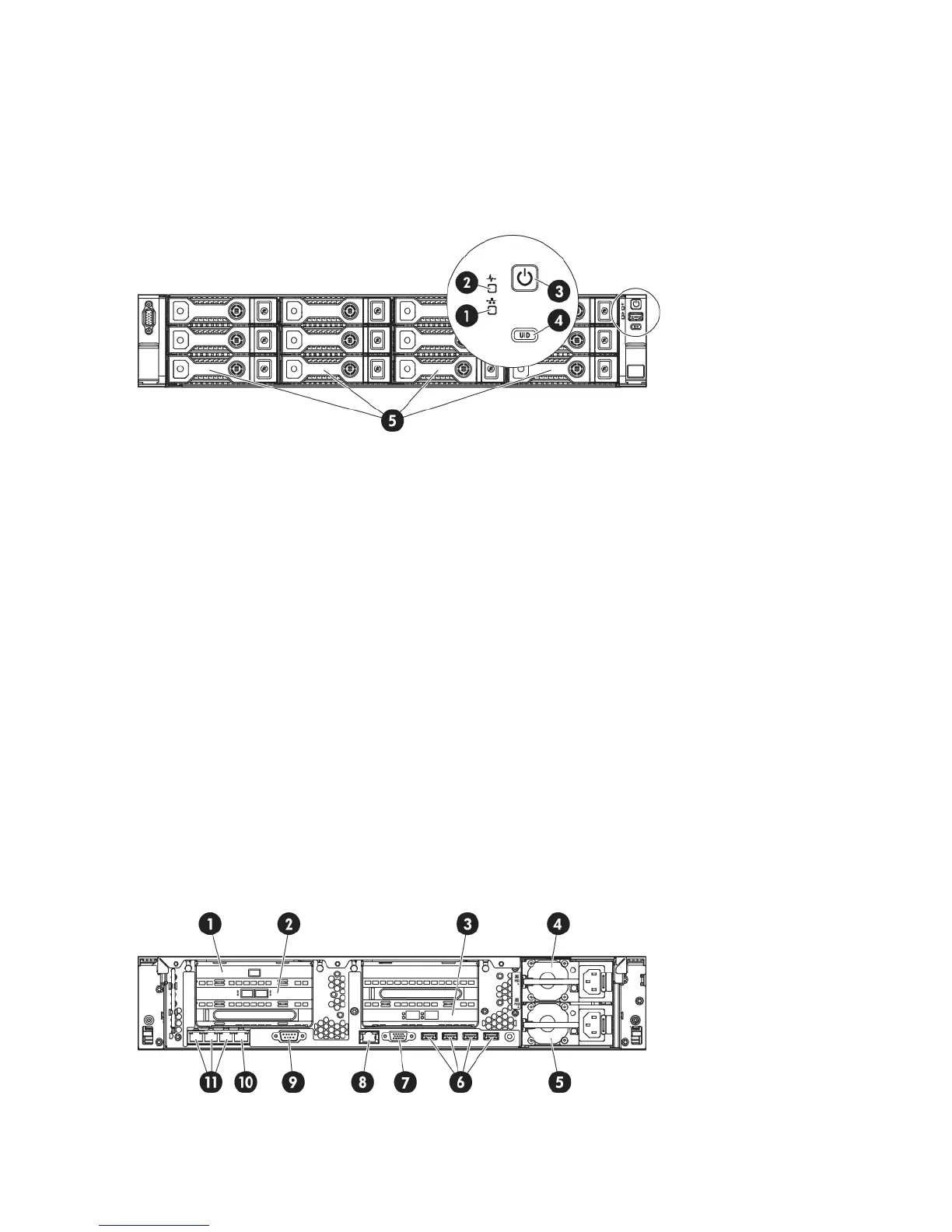

Figure 19 Front view of the HPE StoreOnce 4500 Backup system
Off: no network connection or network not configured1. NIC status LED
Steady green: network connected
Flashing green: network activity
Steady green: Hardware is performing correctly2. System Health LED
Flashing amber: degraded condition
Flashing red: critical condition, such as power supply or fan failure
Steady green: Power connected, device ready to use3. Power On button/LED
Flashing green: performing power on sequence
Steady amber: Device switched off or in hibernation with power connected
Steady blue: identifies the unit
Off: No power connected
Steady blue identifies the StoreOnce Backup system in the rack.4. UID button
Flashing blue: remote management or firmware upgrade in progress
The drives in bays 1 and 2 contain the operating system and filesystem. The
drives in the other bays are used for data storage.
5. Hot plug drives
The following diagram illustrates the rear view of the HPE StoreOnce 4500 Backup.
Figure 20 Rear view of the HPE StoreOnce 4500 Backup m
2. FC card 11. RAID controller 1
4. Power supply bay 13. 10 GbE card
44 LEDs on StoreOnce Backup systems
