Expansion shelves
The hot-plug drives in StoreOnce 4500 and 4700 expansion shelves have two LEDs. (StoreOnce
2700 and StoreOnce 2900 Backup systems do not support expansion shelves.)

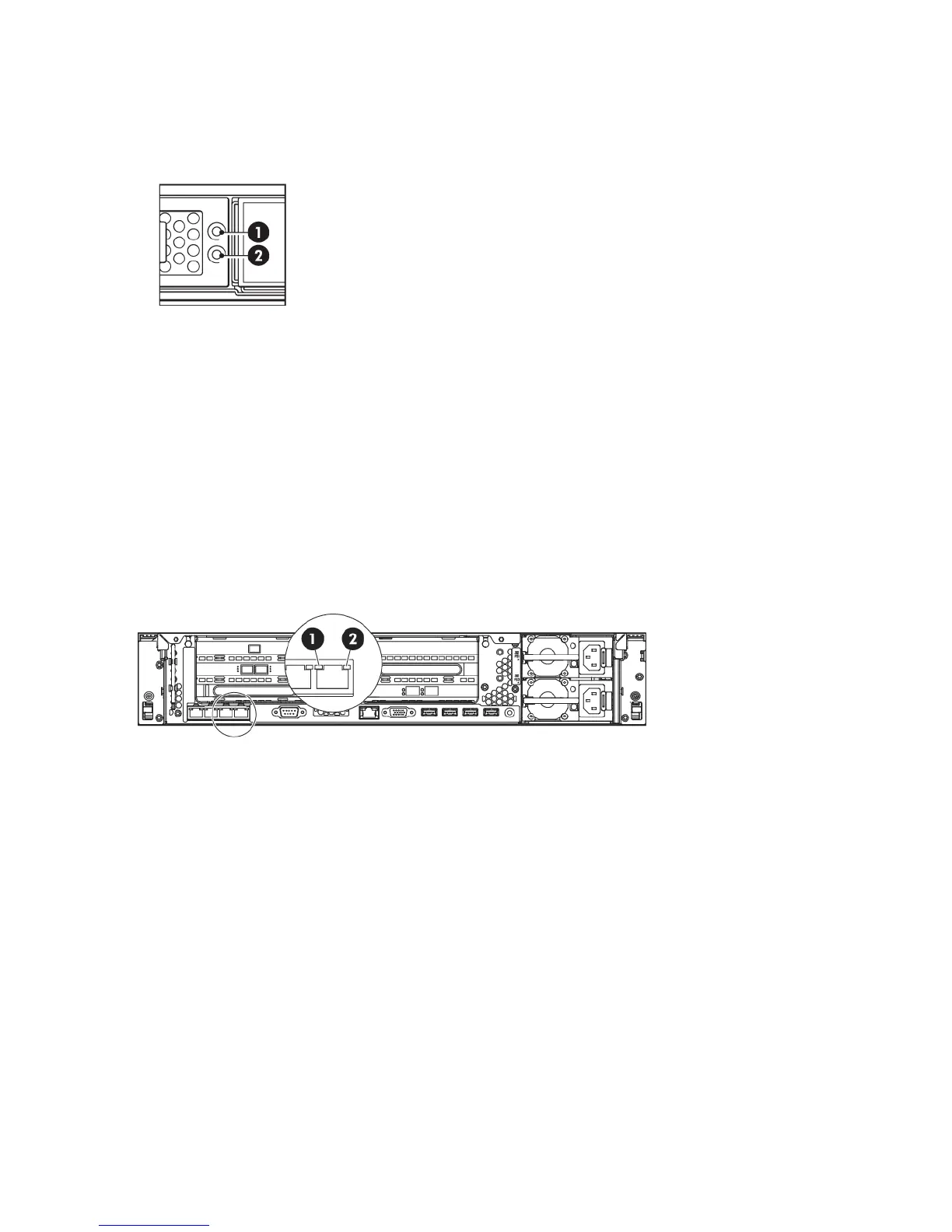

Figure 26 Drive LEDs (expansion shelves)
Steady green: Online, no activity1. Disk Online LED
Flashing green: Ongoing disk activity
Steady amber: Disk has failed
Flashing amber: Predictive disk failure
Off: The disk is not a part of RAID
Steady blue: identifies a specific disk within the unit. The LED can be beaconed on and
off from the StoreOnce Management Console.
2. Disk beacon LED
1 Gbit ethernet port LEDs
The 1 Gbit ethernet LAN ports have two LEDs on the rear of the HPE StoreOnce Backup system.
Figure 27 1 Gbit ethernet LAN port LEDs (example shows HPE StoreOnce 4500 Backup)
Steady green: The LAN connection is using 10 Mbps/100
Mbps link.
1. LAN network speed LED indicator
Steady amber: The LAN connection is using a 1 Gbit
ethernet link.
Off: No connection.
Flashing green: Ongoing network data activity.2. LAN activity status LED indicator
Off: No network data activity or no connection.
10 Gbit ethernet card LEDs
Each 10 Gbit ethernet card has two LEDs, as illustrated below.
50 LEDs on StoreOnce Backup systems
