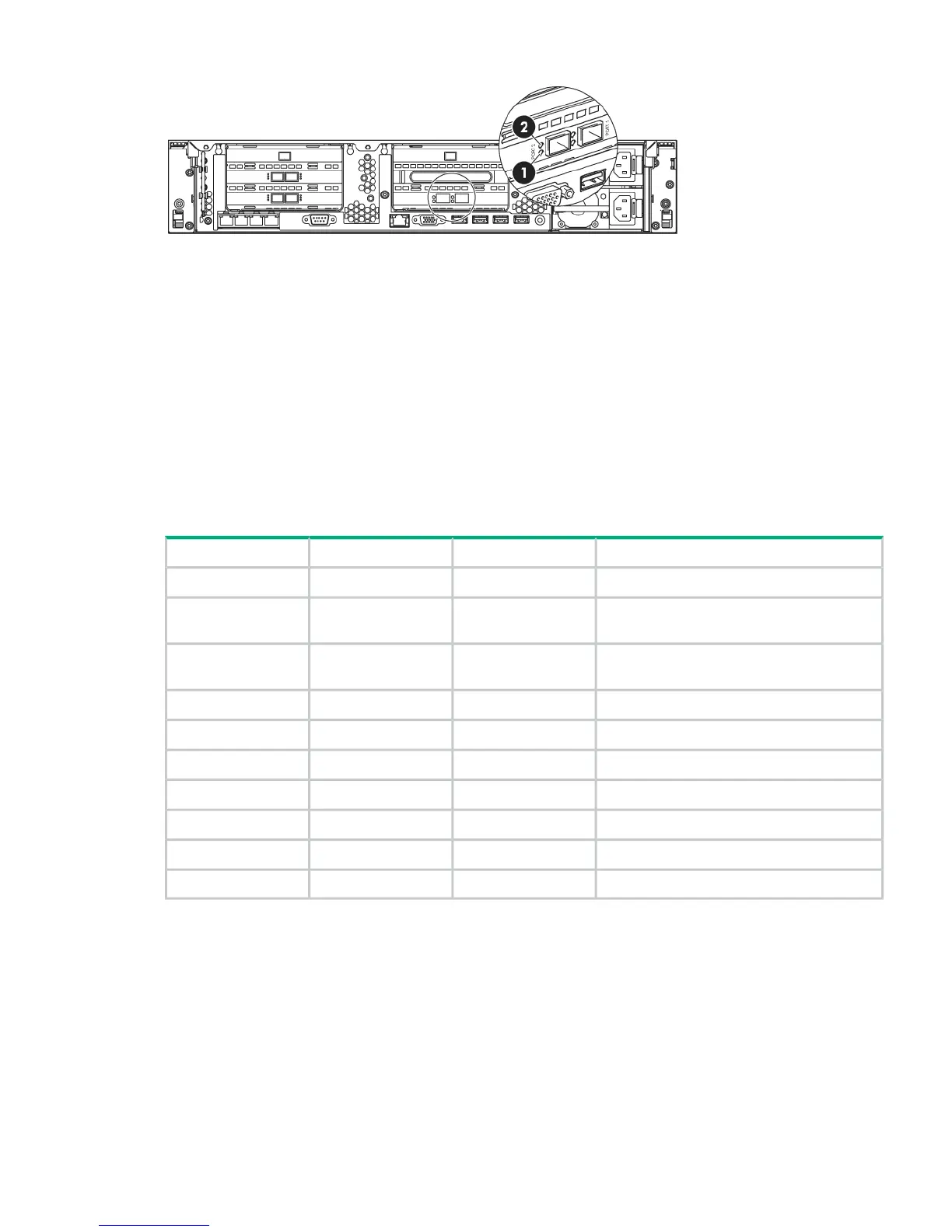

Figure 28 10 Gbit ethernet card LEDs (example shows HPE StoreOnce 4700 Backup)
Off: No link to the adapter is established. The adapter is
not receiving power or the cable connection is faulty
1. Link
On (yellow): Link to the adapter is established. The adapter
is receiving power and the cable connection is good.
Flashing green: Ongoing network data activity. The adapter
is sending or receiving network data at up to 10 Gb/s
2. Activity
Off: No network data activity or no connection.
Fibre Channel card LEDs
There are three LEDs adjacent to each FC port, if you have an HPE StoreOnce Backup system
that supports Fibre Channel.
Table 12 FC card LEDs
ActivityAmber LEDGreen LEDYellow LED
Power Off (OK)OffOffOff
Power on before or after software initialization.
Awaiting HBA software initialization.
OnOnOn
Power on after software initialization. Link not
initialized.
FlashingFlashingFlashing
Software fault (OK)Alternately flashingAlternately flashingAlternately flashing
Connected at: 2 Gb/sOnOffOff
Activity at 2 Gb/s (OK)FlashingOffOff
Connected at 4 Gb/sOffOnOff
Activity at 4 Gb/s (OK)OffFlashingOff
Connected at 8 Gb/sOffOffOn
Activity at 8 Gb/sOffOffFlashing
Fibre Channel card LEDs 51
