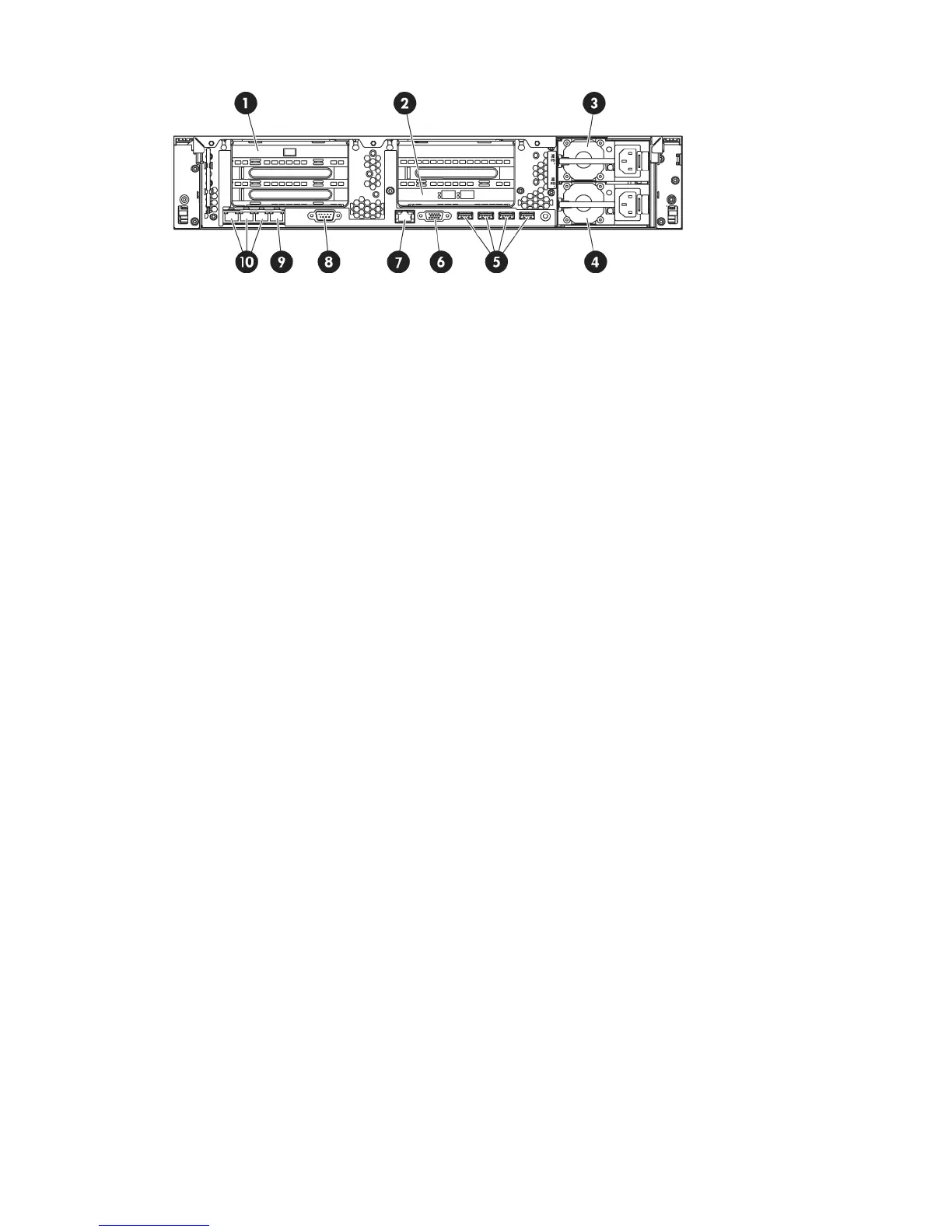

Figure 22 Rear view of the HPE StoreOnce 2900 Backup system
2. 10 GbE card1. RAID controller 1
4. Power supply bay 23. Power supply bay 1
6. Video/monitor connector5. USB connectors (4)
8. Serial connector7. iLO4 port, do not use for data connection
10. 1 GbE network ports 2, 3 and 49. 1 GbE network port 1, connect for Quick Install
HPE StoreOnce 2900 Backup system 47
