HP Synergy 480 Gen10 - Mezzanine Connector Definitions

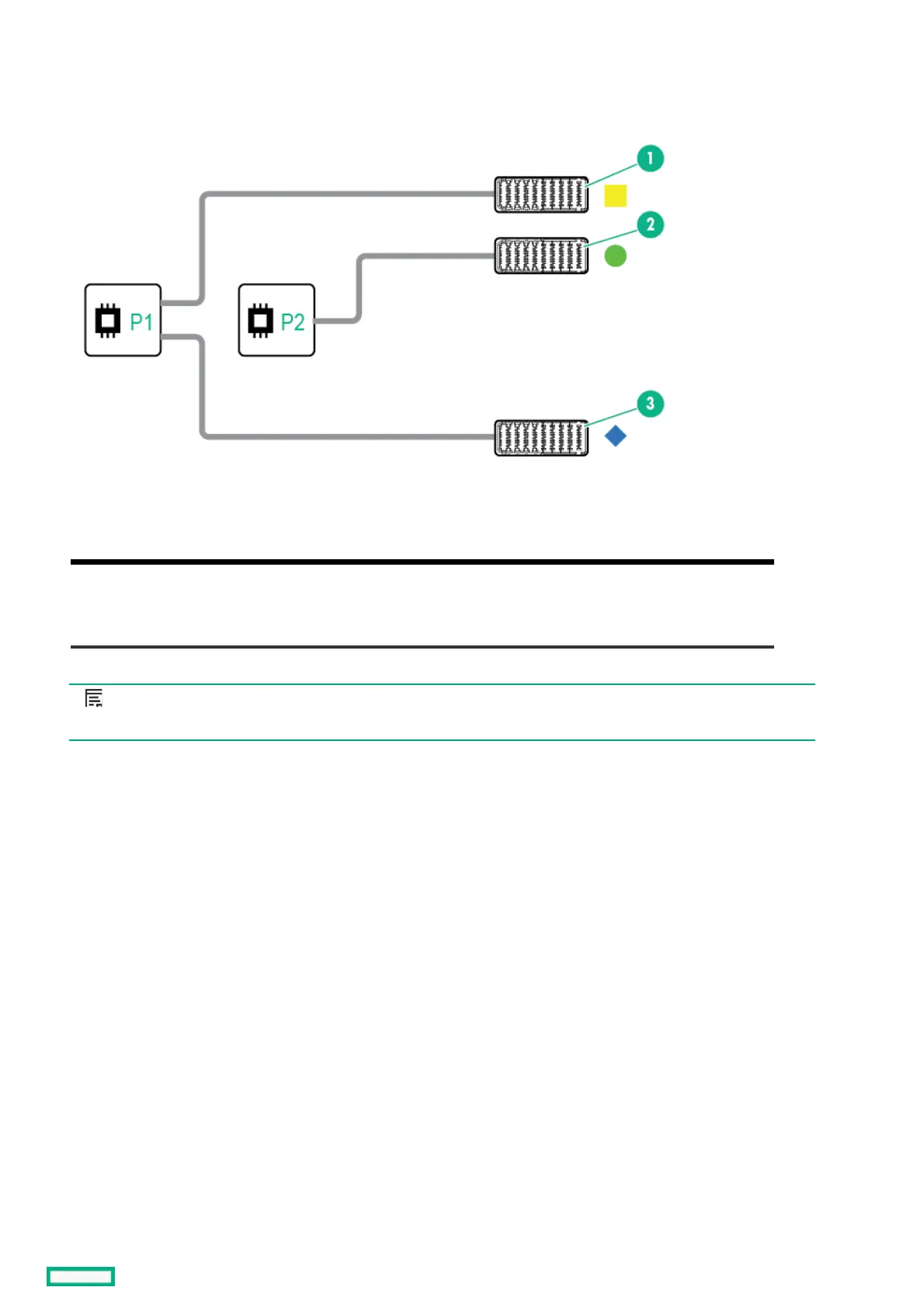

Mezzanine connector definitionsMezzanine connector definitions
ItemItem Connector identificationConnector identification Supported card typesSupported card types FabricFabric Supported ICM baysSupported ICM bays
1 Mezzanine connector 1 (M1)* Type C and Type D 1 ICM 1 and 4
2 Mezzanine connector 2 (M2)** Type C and Type D 2 ICM 2 and 5
3 Mezzanine connector 3 (M3) Type C only 3 ICM 3 and 6
NOTE:NOTE:
Hewlett Packard Enterprise recommends that you install P416ie-m on mezzanine 1.
* When an NVIDIA Tesla M6 GPU FIO Adapter for HPE Synergy 480 Gen10 compute module is installed in mezzanine connector 1,
mezzanine connector 2 is not available for additional mezzanine cards.
** When installing a mezzanine option on mezzanine connector 2, processor 2 must be installed.
