HP Synergy 480 Gen10 - Front Panel Components and LEDs

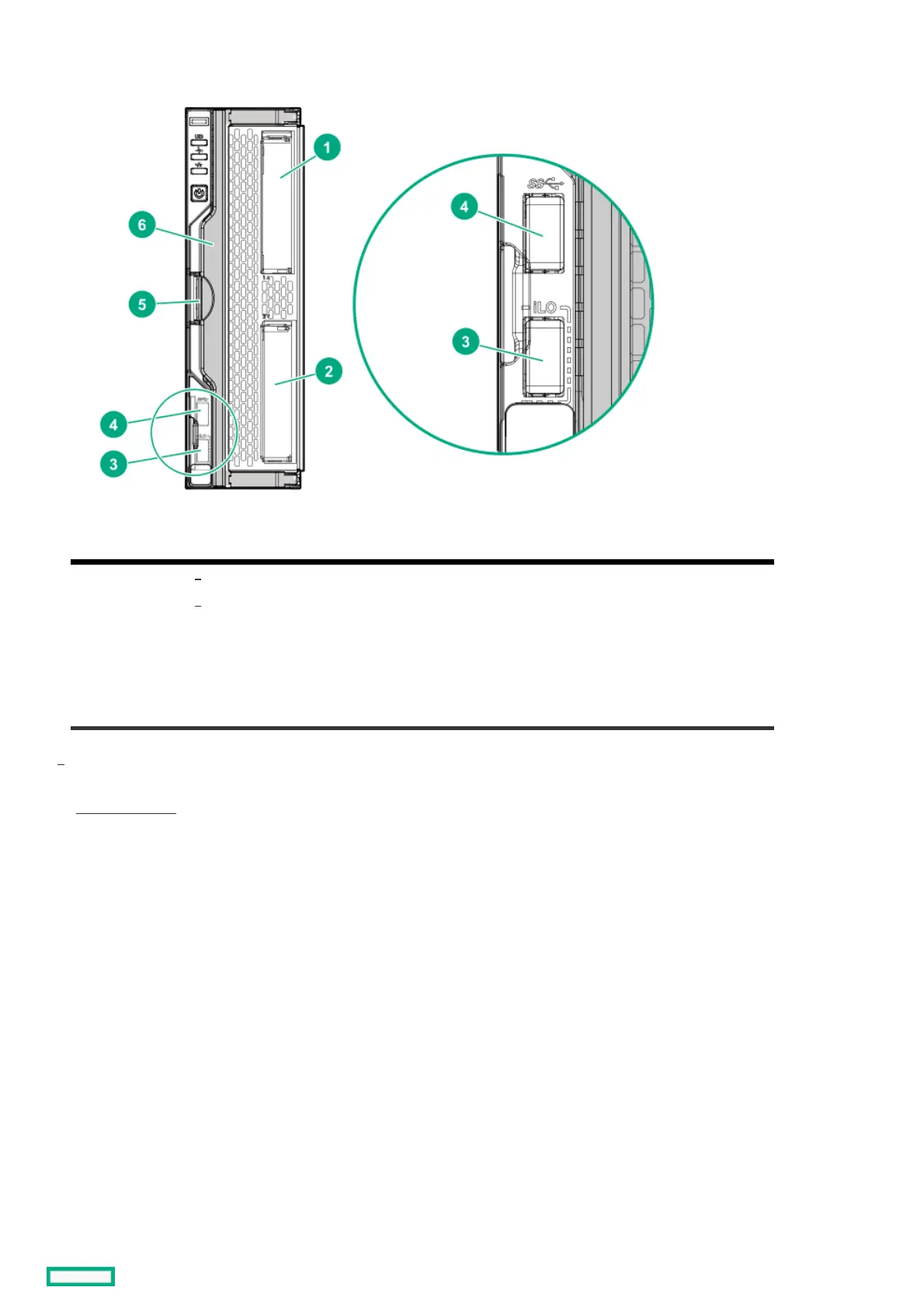

Front panel componentsFront panel components
ItemItem DescriptionDescription
1 Drive bay 1
2 Drive bay 2
3 External USB iLO Service Port (169.254.1.2) - located behind the Serial label pull tab
4 External USB 3.0 connector (located behind the Serial label pull tab)
5 Compute module handle release latch
6 Compute module handle
If uFF drives (the SFF Flash Storage Adapter) are installed in the drive bays, the drive bay numbering is different. For more
information, see
Drive numbering
.
1
1
1
Front panel components 7
