HP Z8 G4 Maintenance And Service Guide

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as
the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to
the internal components of the computer.
5. Remove the access panel.
6. Locate the battery and battery holder on the system board.
NOTE: On some computer models, it may be necessary to remove an internal component to gain access
to the battery.
7. Depending on the type of battery holder on the system board, complete the following instructions to
replace the battery.

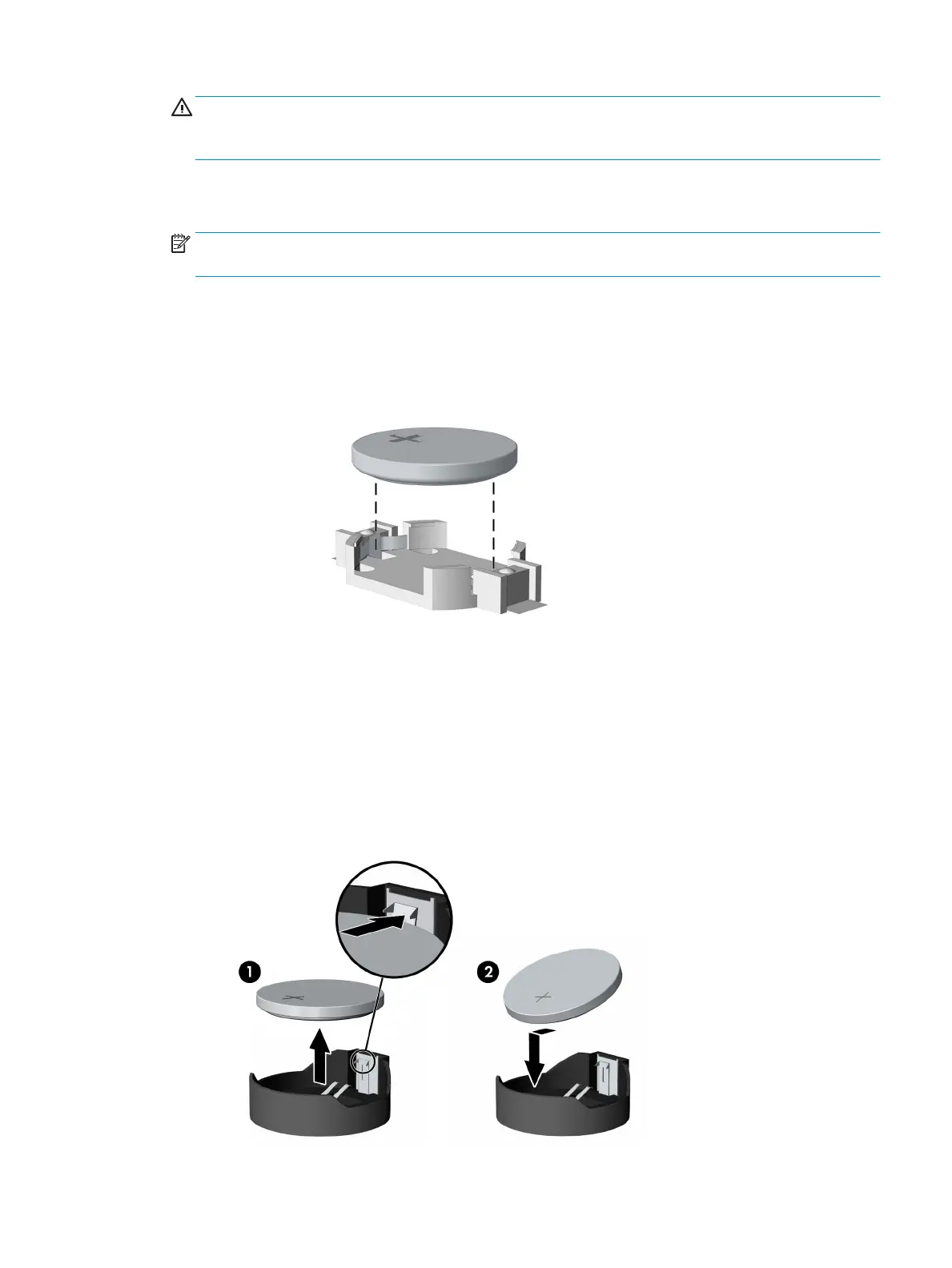

Type 1
a. Lift the battery out of its holder.
b. Slide the replacement battery into position, positive side up. The battery holder automatically secures
the battery in the proper position.
Type 2
a. To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of
the battery (2).
95

HP Z8 G4 Specifications

General

Display included	No
Keyboard included	Yes
Power supply	1125 W
Operating system architecture	64-bit
Audio chip	Realtek ALC221
Product type	Workstation
Market positioning	Business
Motherboard chipset	Intel C622
Chassis type	Tower
Product color	Black
Country of origin	China
Number of 3.5\" bays	4
Number of 5.25\" bays	2
PCI Express x8 slots	3
Headphone outputs	1
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	-
Total storage capacity	1000 GB
Memory slots	24x DIMM
Internal memory	8 GB
Memory channels	Hepta-channel
Memory clock speed	2666 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 8 GB
Tcase	77 °C
Stepping	U0
Processor cache	11 MB
Processor model	4108
System bus rate	- GT/s
Processor socket	LGA 3647 (Socket P)
Processor threads	16
Processor codename	Skylake
Processor frequency	1.8 GHz
Processor cache type	L3
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	3 GHz
Thermal Design Power (TDP)	85 W
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2400 MHz
Maximum internal memory supported by processor	768 GB
Scalability	2S
Processor code	SR3GJ
Processor ARK ID	123544
Intel TSX-NI version	1.00
Processor package size	76.0 x 56.5 mm
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2

Weight and Dimensions

Depth	551.2 mm
Width	215.9 mm
Height	444.5 mm
Weight	22400 g
