Right panel
1. Prepare the computer for disassembly (see Preparation for disassembly on page 17).

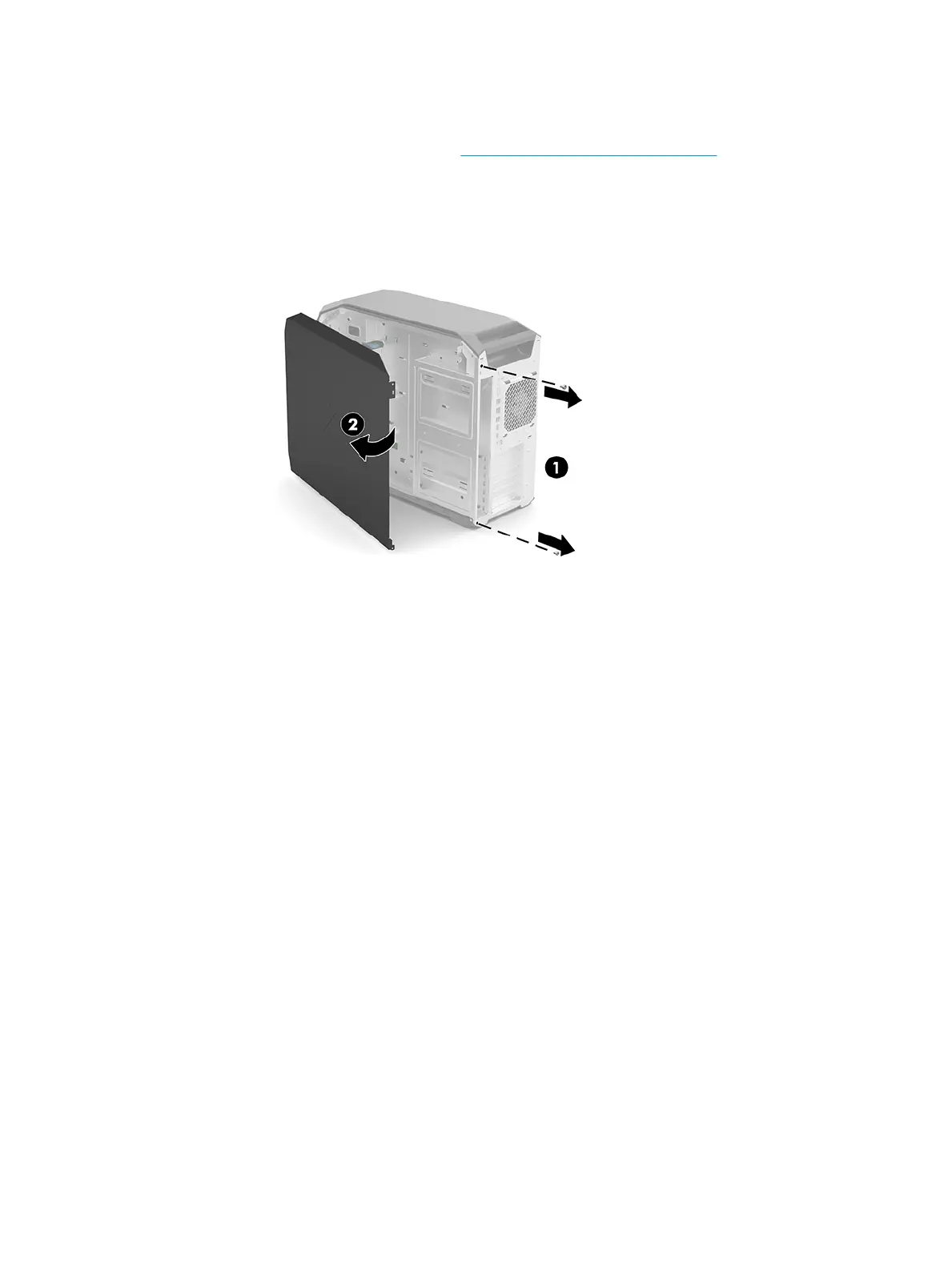

2. Position the computer with the right side toward you.
3. Remove the two Torx15 M3.3×7.0 screws (1) that secure the right panel to the computer.
4. Remove the right panel (2) by swinging the right edge away from the computer.
Reverse this procedure to install the right panel.
20 Chapter 4 Removal and replacement procedures
