Top cover
1. Prepare the computer for disassembly (see Preparation for disassembly on page 17).

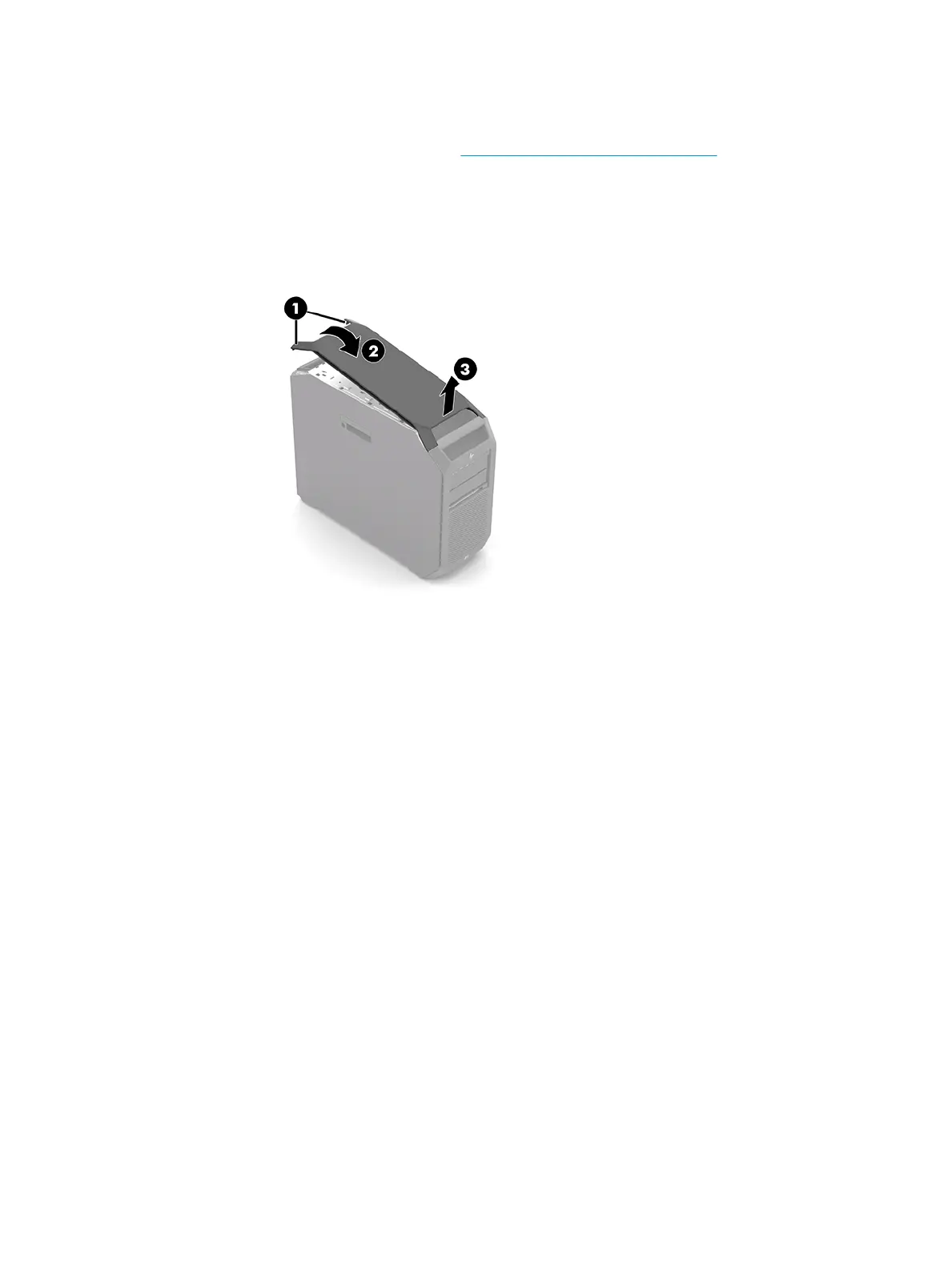

2. Position the computer in the upright position with the right side toward you.
3. Release the two tabs (1) on the rear panel from the computer.
4. Swing the rear edge of the top cover (2) away from the computer.
5. Remove the top cover (3).
6. Remove the top cover.
Reverse this procedure to install the top cover.
18 Chapter 4 Removal and replacement procedures
