Access panel
1. Prepare the computer for disassembly (see Preparation for disassembly on page 17).

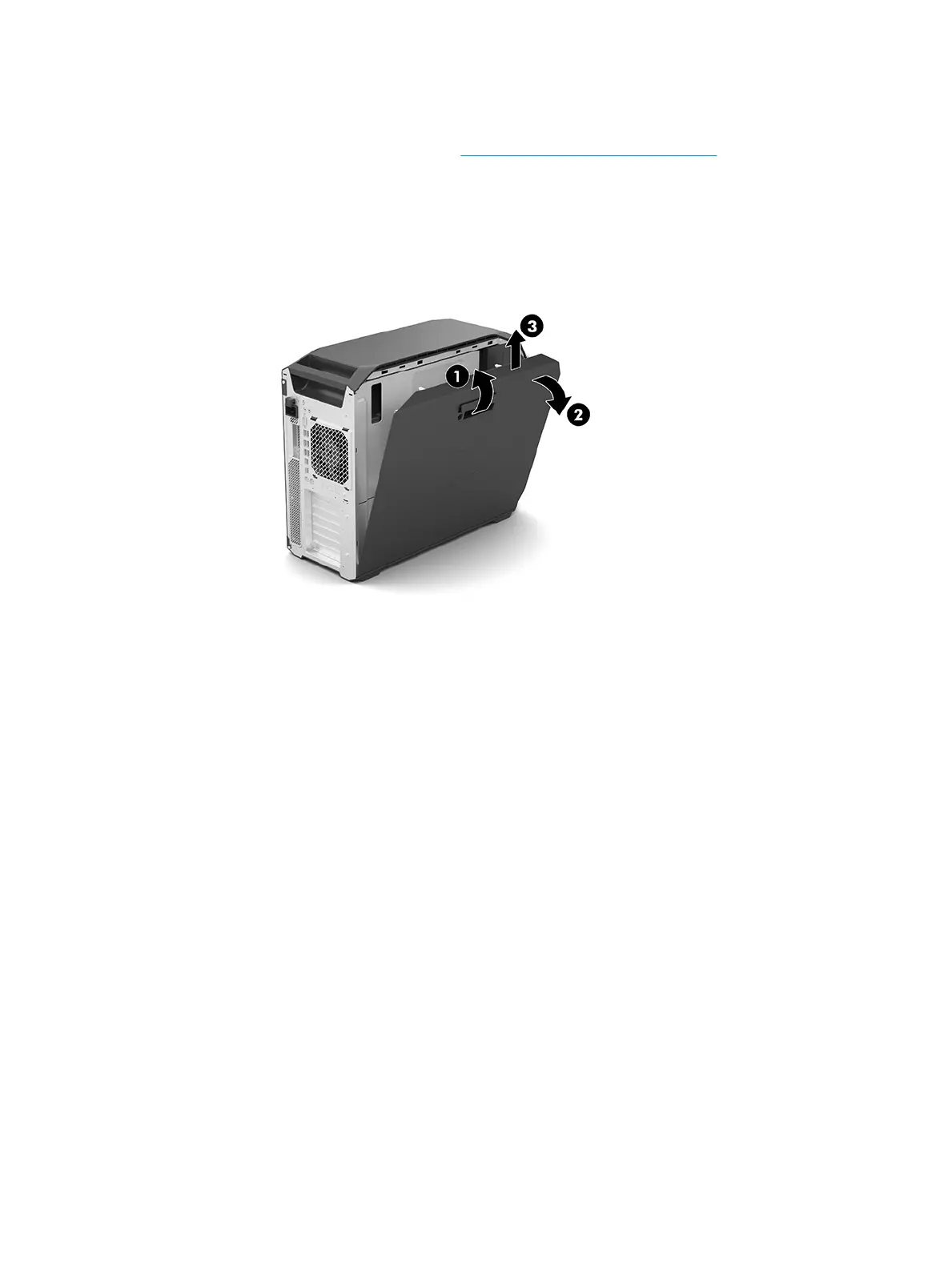

2. Position the computer with the left side toward you.
3. Swing the access panel release latch (1) up.
4. Use the access panel release latch to swing the top edge of the access panel (2) away from the computer.
5. Remove the access panel (3) by lifting it straight up.
Reverse this procedure to install the access panel.
22 Chapter 4 Removal and replacement procedures
