HPE Aruba Networking CX 6200 Series User Manual

Label
Description
1
24p 1G Base-T ports
2 System status LEDs
3
x4 10G SFP ports (x2 MACsec Enabled / x2 LRM Enabled)
4
LED mode select button
5 USB Type-C serial console port
6 USB Type-A Auxilary port
7 Identification tab
8 RJ-45 console port
9 10/100/1000 Mbps Out-of-Band Management port
Table 6: Switch and Port LEDs: Labels and Description

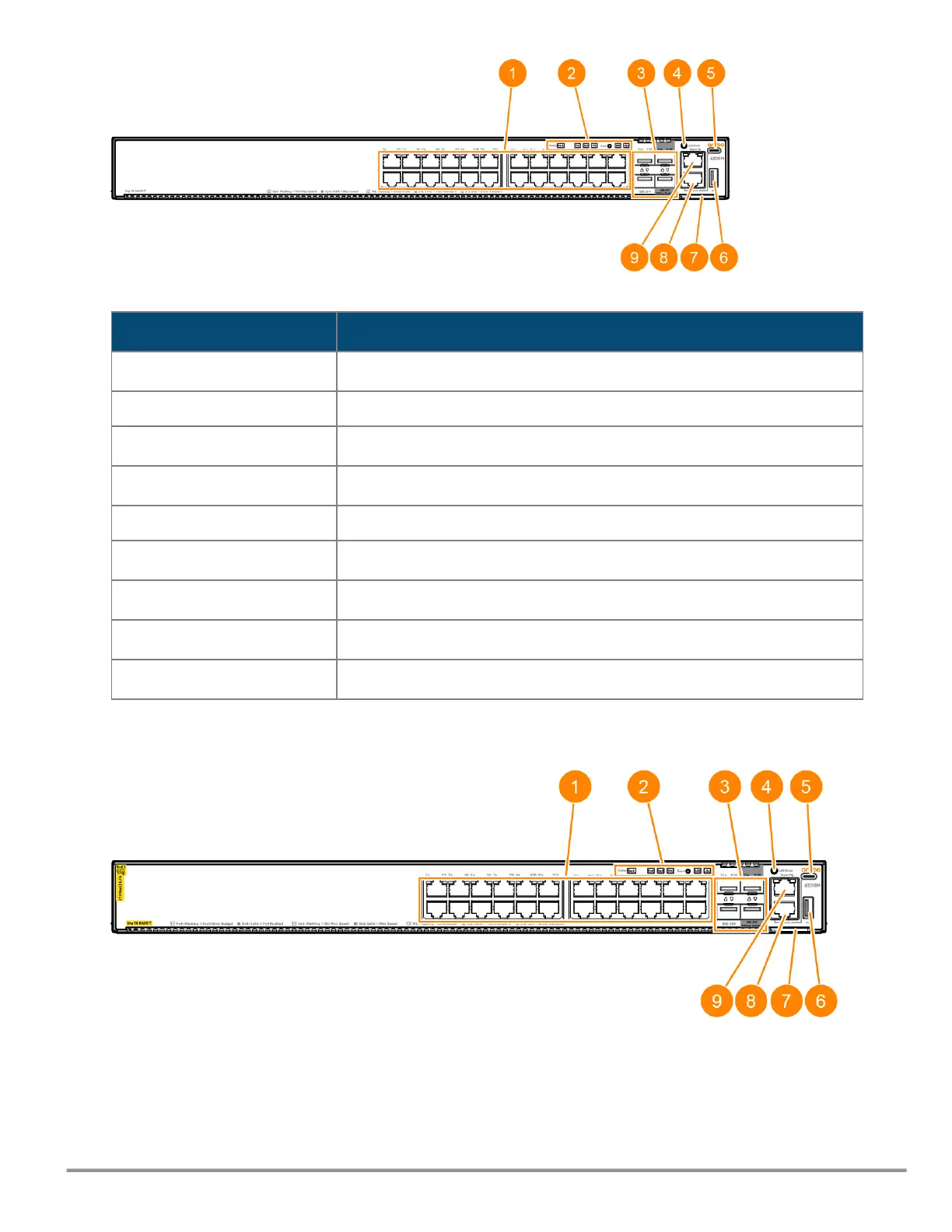

Figure 2 Switch and port LEDs for 6200M switches:HPEAruba Networking CX 6200M 24G Class4 PoE 4SFP+
switch (R8Q68A) and HPEAruba Networking CX 6200M 24G class4 PoE 4SFP+ TAA switch (R8V09A)
HPE Aruba Networking CX 6200F/M Switch Series Installation and Getting Started Guide |
13

HPE Aruba Networking CX 6200 Series Specifications

General

Brand	HPE
Model	Aruba Networking CX 6200 Series
Category	Switch
Language	English
