HPE Aruba Networking CX 6200 Series User Manual

Introducing the switches | 14
Label
Description
1 24p 1GBase-T Class4 PoE ports
2 System Status LEDs
3 x4 10G SFP ports (x2 MACsec Enabled / x2 LRM Enabled)
4 LED mode select button
5 USB Type-C serial console port
6 USB Type-A Auxiliary port
7 Identification tab
8 RJ-45 console port
9 10/100/1000 Mbps Out-of-Band Management port
Table 7: Switch and Port LEDs: Labels and Description

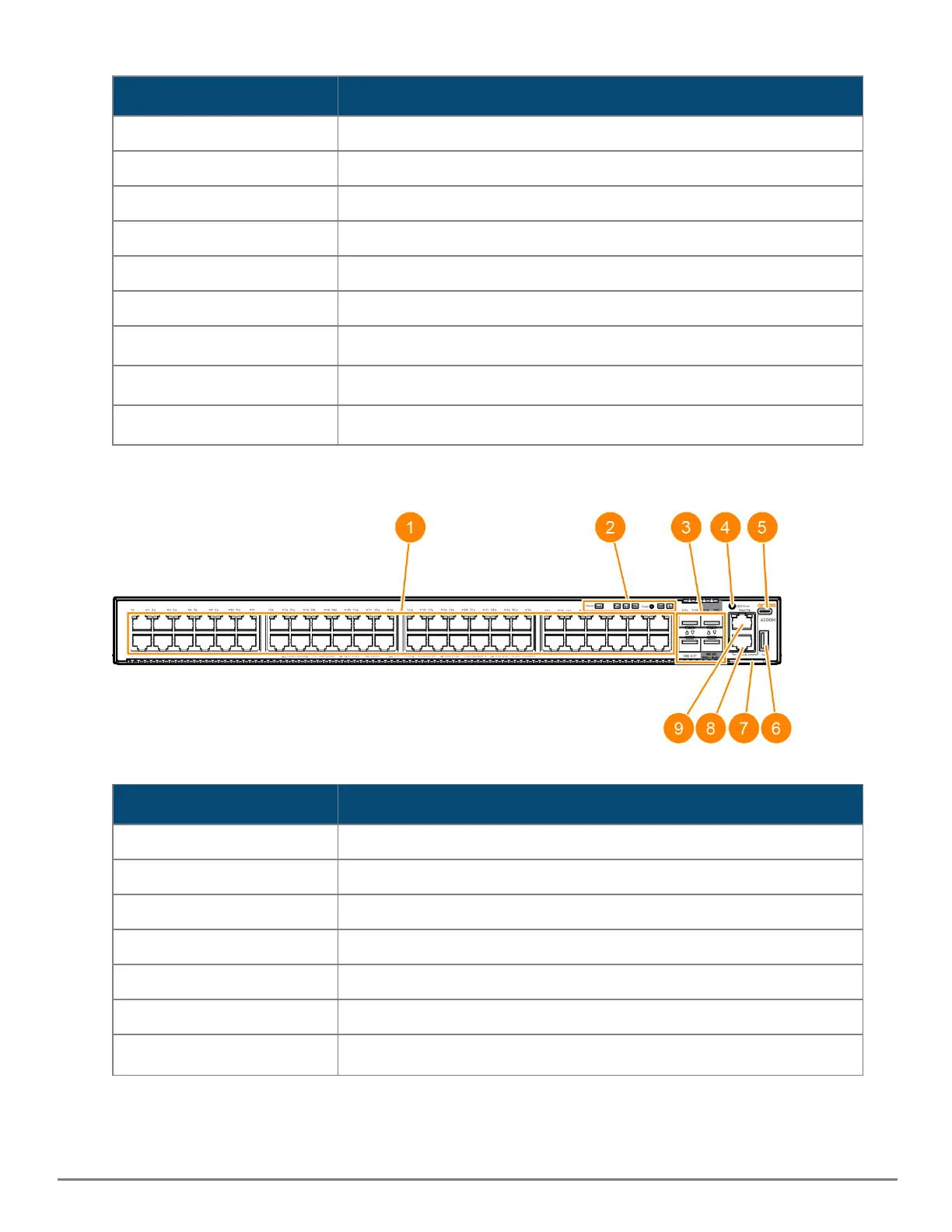

Figure 3 Switch and port LEDs for 6200M switches: HPEAruba Networking CX 6200M 48G 4SFP+ switch
(R8Q69A) and HPE Aruba Networking CX 6200M 48G 4SFP+ TAA switch (R8V10A)
Label
Description
1 48p 1G Base-T ports
2 System Status LEDs
3 x4 10G SFP ports (x2 MACsec Enabled / x2 LRM Enabled)
4 LED mode select button
5 USB Type-C serial console port
6 USB Type-A Auxiliary port
7 Identification tab
Table 8: Switch and Port LEDs: Labels and Description

HPE Aruba Networking CX 6200 Series Specifications

General

Brand	HPE
Model	Aruba Networking CX 6200 Series
Category	Switch
Language	English
