Introducing the switches | 16
Label
Description
1 36p 1G Base-T Class6 PoE ports, and
12p 1G/2.5G/5G Smart Rate Class 6 PoE ports
2 System Status LEDs
3 x4 10G SFP ports (x2 MACsec Enabled / x2 LRM Enabled)
4 LED mode select button
5 USB Type-C serial console port
6 USB Type-A Auxiliary port
7 Identification tab
8 RJ-45 console port
9 10/100/1000 Mbps Out-of-Band Management port
Table 10: Switch and Port LEDs: Labels and Description

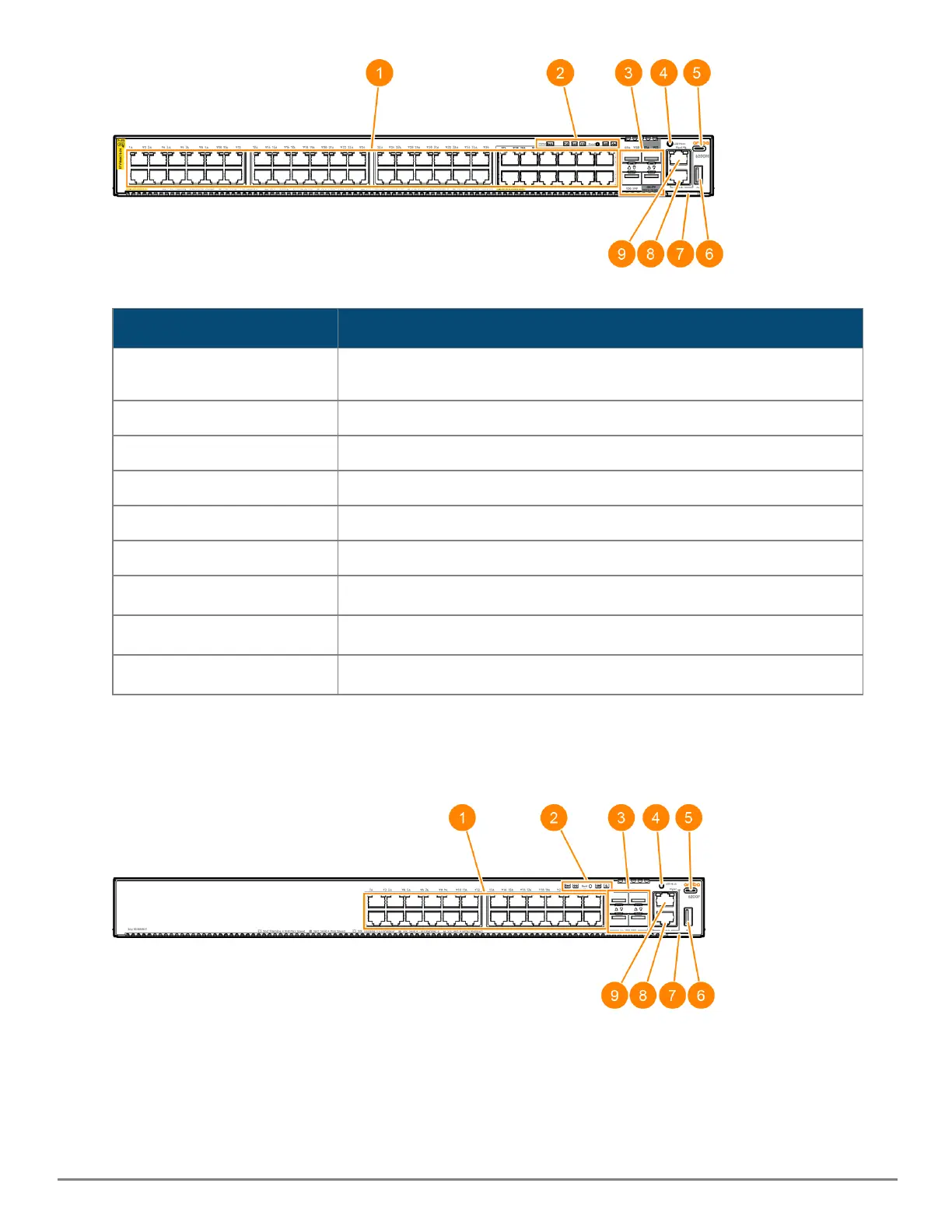

Figure 6 Switch and port LEDs for 6200F switches: HPE Aruba Networking CX 6200F 24G 4SFP+ Switch
(JL724B), Aruba 6200F 24G 4SFP+ Switch (JL724A), HPE Aruba Networking CX 6200F 24G 4SFP+ TAA-compliant
Switch (S0M86A), HPE Aruba Networking CX 6200F 24G 4SFP Switch (S0M81A), and HPE Aruba Networking CX
6200F 24G 4SFP TAA-compliant Switch (S0G13A)
