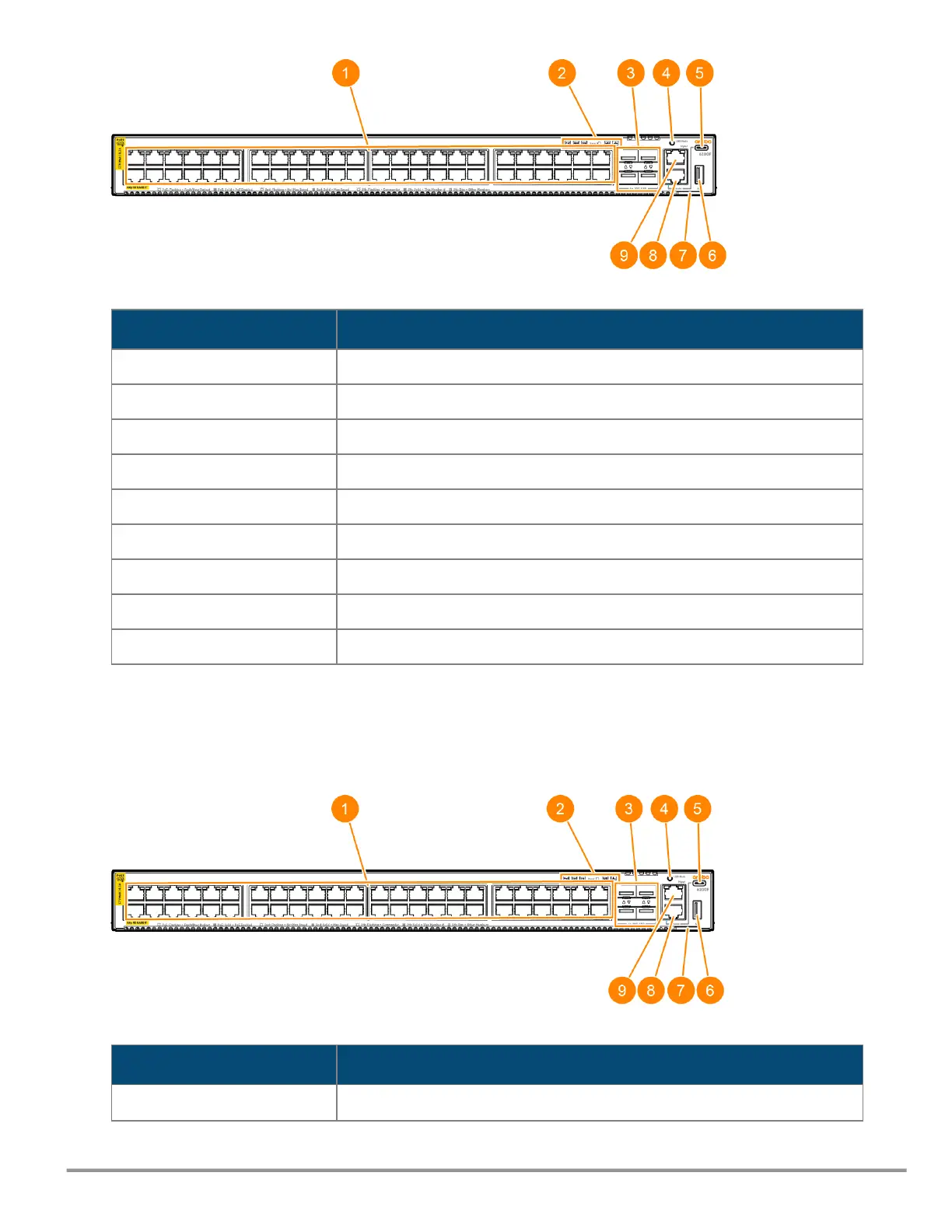

HPE Aruba Networking CX 6200 Series

Label
Description
1 48p 1G Base-T Class4 PoE ports
2 System Status LEDs
3 4p 10G SFP ports
4 LED mode select button
5 USB Type-C serial console port
6 USB Type-A Auxiliary port
7 Identification tab
8 RJ-45 console port
9 10/100/1000 Mbps Out-of-Band Management port
Table 14: Switch and Port LEDs: Labels and Description
Figure 10 Switch and port LEDs for 6200F switches:HPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP+
740W Switch (JL728B), Aruba 6200F 48G Class 4 PoE 4SFP+ 740W switch (JL728A), HPE Aruba Networking CX
6200F 48G Class 4 PoE 4SFP+ 740W TAA-compliant Switch (S0M90A), HPE Aruba Networking CX 6200F 48G
Class 4 PoE 4SFP 740W Switch (S0M85A), and HPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP 740W
TAA-compliant Switch (S0G17A)
Label
Description
1 48p 1G Base-T Class4 PoE ports
Table 15: Switch and Port LEDs: Labels and Description
