1. In the required location, mark the position for the mounting screws. The hole-to-hole distance is 7
inch (178 mm) (x-axis) and 5.8 inch (147 mm) (y-axis).
2. Use two screws with heads sized correctly for the mounting holes and with sufficient strength to
hold the switch to the wall. Set the screw heads s approximately 2 mm away from the mounting
surface to allow the switch to slide onto the screws.

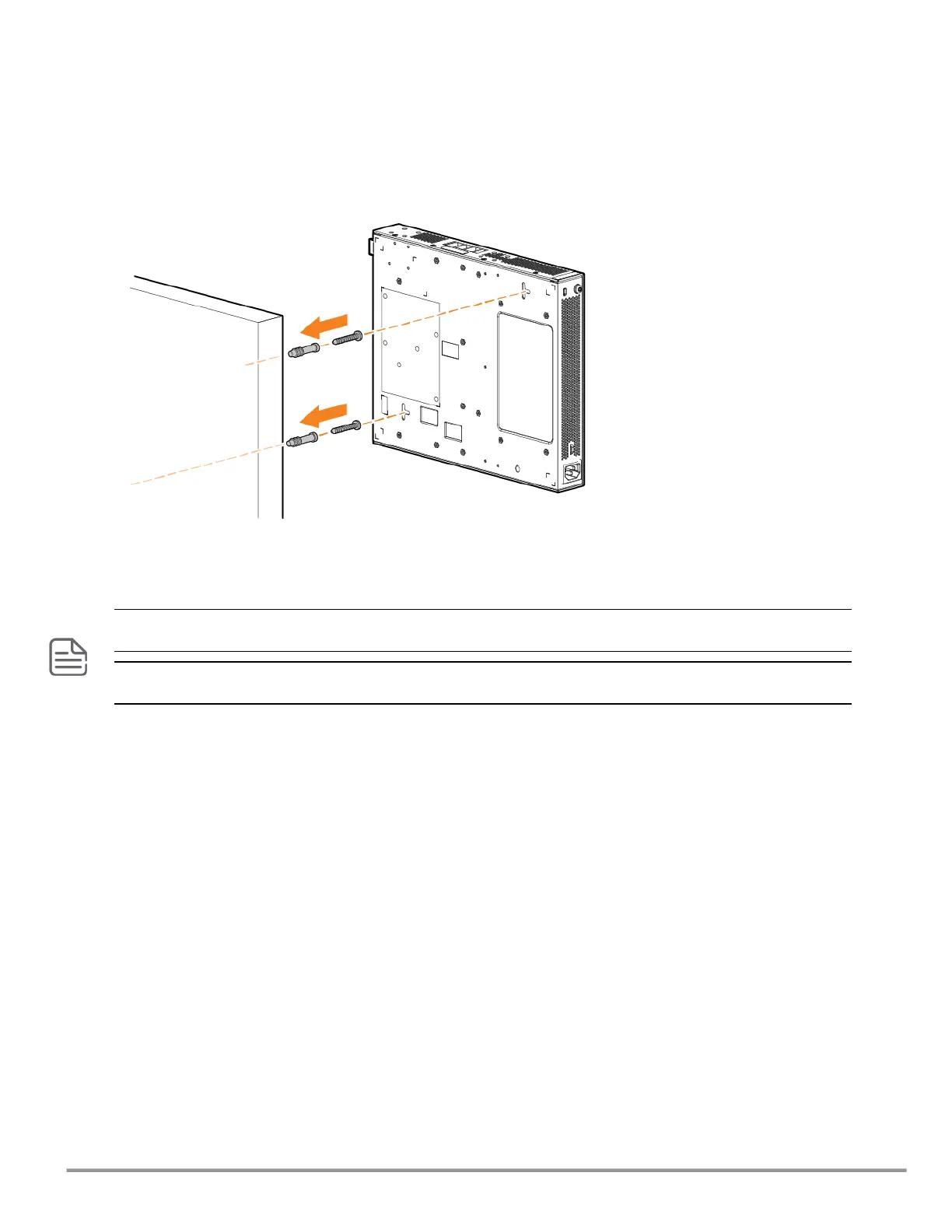

Figure 10 Attaching screws into wall
Under-table mounting for 12-port switch
Position the switch with its top facing upward. Inverting the switch (top vents facing downward) in an under-table
mounting, reduces ventilation from inside the switch and is not supported.
The switch must be secured using the long rack mount brackets (included) that provide a 3" (76.2 mm) gap
between the top of the switch and the underside of the table top.
1. Attach the long (rack/table) mounting brackets to the switch.
2. Secure the rack/table mounting brackets to the underside of the table/horizontal surface.
Figure 11 Securing switch to under-table surface
HPE Aruba Networking CX 6200F/M Switch Series Installation and Getting Started Guide |
44
