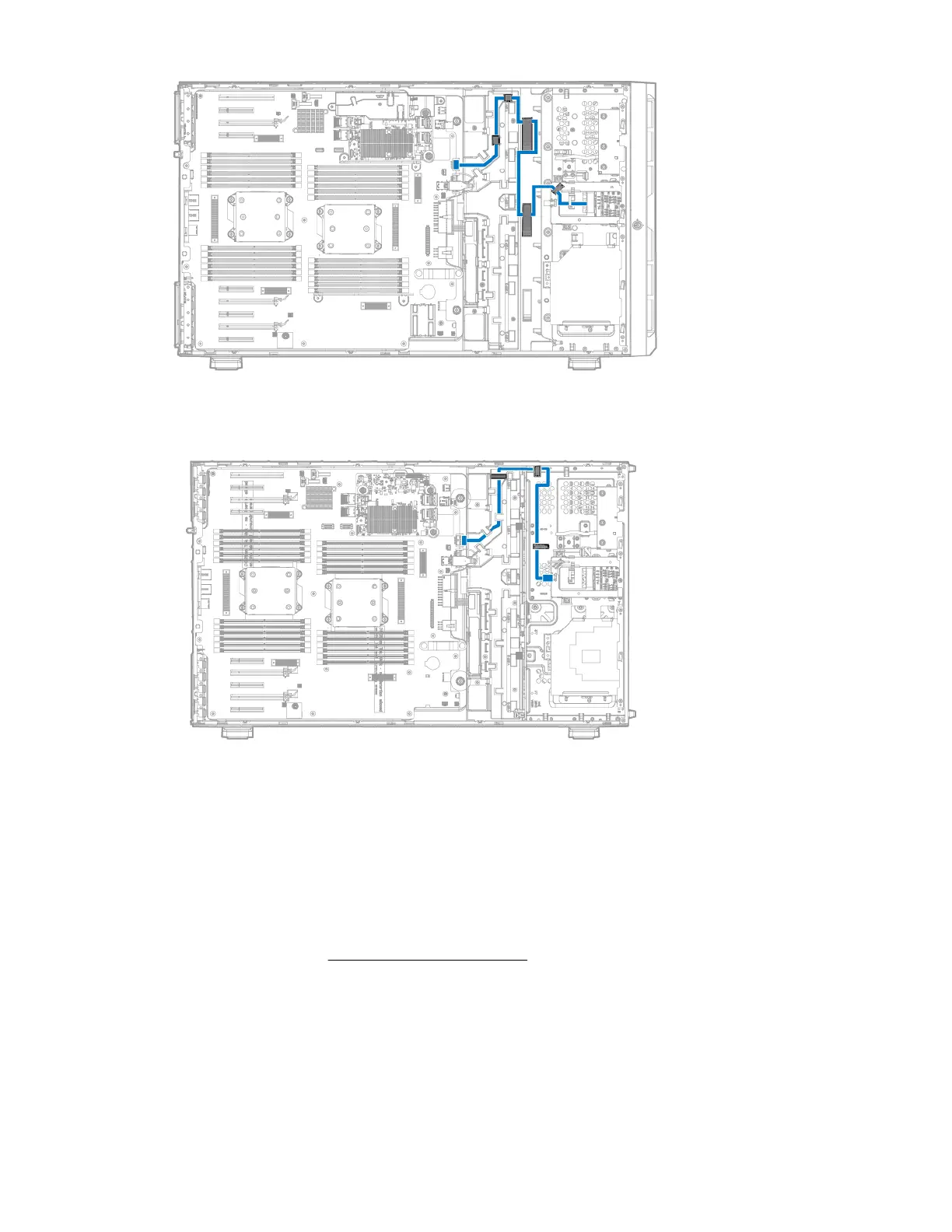

• LFF configuration
FBWC module backup power cabling
The FBWC solution is a separately purchased option. This server only supports FBWC module installation
when a Smart Array P-Series controller is installed.
Depending on the controller option installed, the actual storage controller connectors might look different from
what is shown in this section.
There are two FBWC module backup power cable connectors available for each group of PCIe connectors.
For more information, see "System board components."
• Storage controller installed in slot 1 to 4
FBWC module backup power cabling 105
