Item Description
21 Power supply 2
22 USB 2.0 connectors (2)
23 USB 3.0 connectors (2)
24 Power supply 1

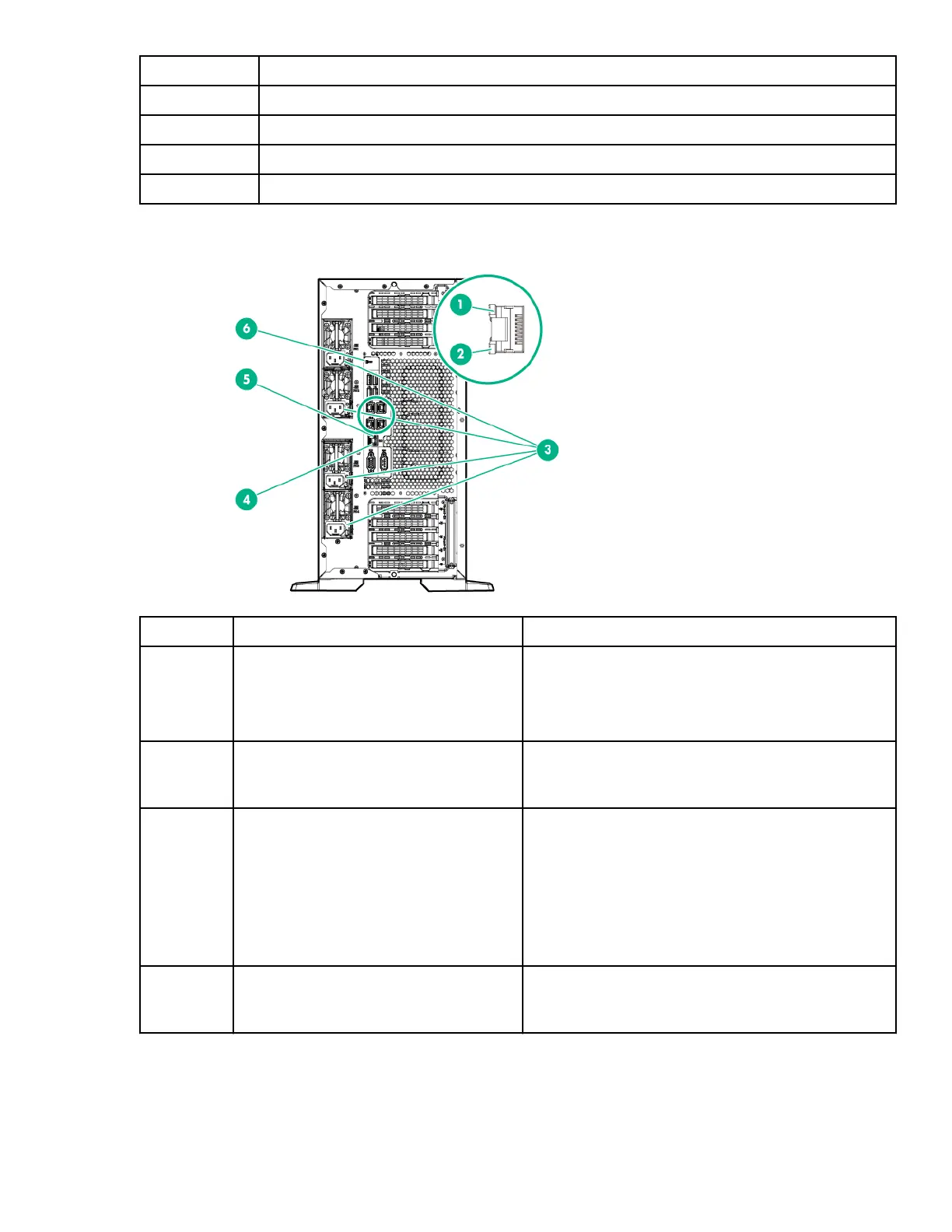

Rear panel LEDs
Item Description Status
1 NIC activity LED
Solid green = Link to network
Flashing green = Network active
Off = No network activity
2 NIC link LED
Green = Network link
Off = No network link
3 Power supply LED
Solid green = Normal
Off = One or more of the following conditions exists:
• Power is unavailable
• Power supply failed
• Power supply is in standby mode
• Power supply error
4 iLO link LED
Green = Linked to network
Off = No network connection
Table Continued
Rear panel LEDs 81
