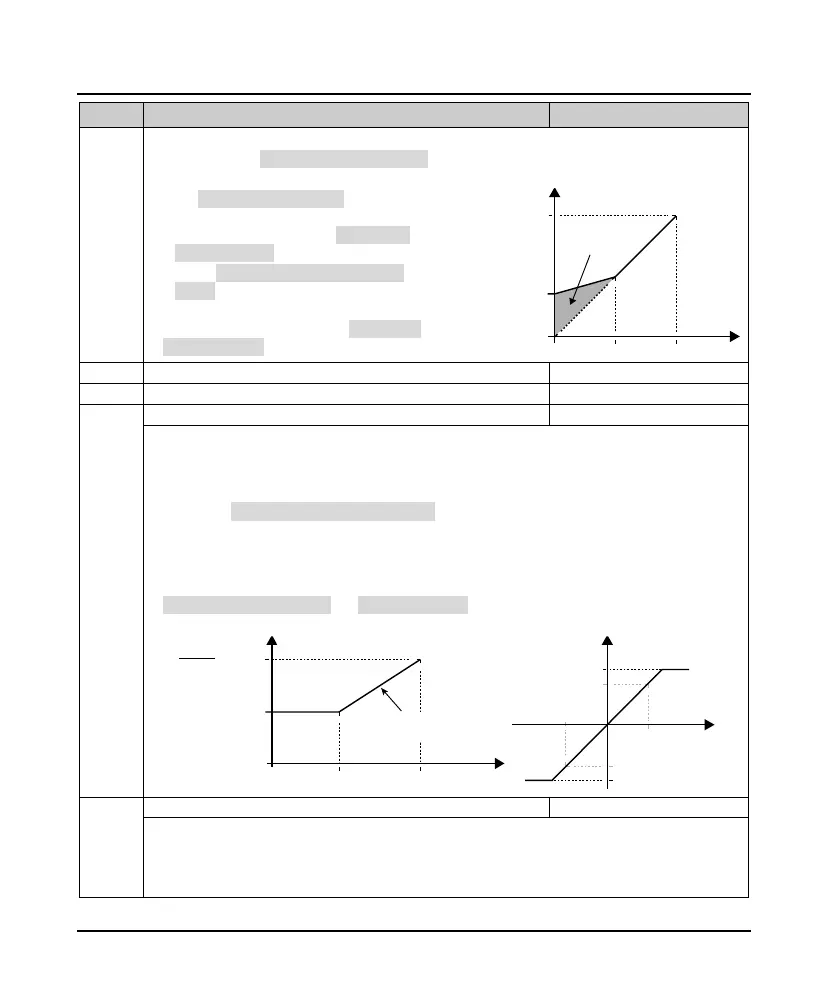

Chapter 7 Detailed Function Introduction Shenzhen Hpmont Technology Co., Ltd.
- 46 - HD09-S Series User Manual V1.1
Ref. Code Function Description Setting Range [Default]
F09.07 = 0, the automatic torque boost mode is meant.
In this case, the motor rated frequency (F08.03) should be correctly set according to the motor
nameplate parameter.
The rated motor speed (F08.04) should be set
according to the motor nameplate or by rotating
autotuning. And the accurate motor stator
resistance (F08.07);
Set the slip compensation gain (F09.09) =
100.0%, to enable slip compensation; In order to
obtain a good carrying capacity.
F09.08 is percentage cpmpared to motor rated
frequency (F08.03).
F09.09
Motor slip compensation gain
0.0 - 300.0 [0.0%]
F09.10 Motor slip compensation filtering time 0.01 - 10.00 [0.10s]
F09.11
Motor slip compensation limit
0.0 - 250.0 [200.0%]
Motor load torque changes will affect the motor running slip, resulting in changes of motor speed. This effect
can be reduced by slip compensation (automatically adjusting the inverter output frequency based on the
motor load torque).
The motorized state (actual speed < set speed), power generation status (actual speed > set speed) can
increase the compensation gain gradually (F09.09).
Slip compensation is limited within a constant torque range (frequency command motor nominal
frequency) as a fixed value, which increases proportionately with the output frequency over a constant
power range.
The amount of automatic slip compensation is related to the rated slip of the motor. When used, set the
motor rated frequency (F08.03) and rated speed (F08.04) correctly.
Slip compensation range = Actual slip compensation limit × rated slip.
F09.12
Motor iron loss
0.000 - 9.999kW [Type confirmed]
It is used for V/f control torque compensation. It is determined according to the rated power of the motor
when it leaves the factory.
Generally, it is not necessary to change. If accurate iron loss can be obtained from the motor test report, set
F09.12 to this value.
Voltage
0
Frequency
F08.03
F08
.01
F09.08max
Voltage of manual
tor
que bo
ost
Boo
sted
value
Slip
-100%
100%
Load
Positive slip
compensation
Negative slip
compensation
F09.11
F00.06
F08.03
×F09.11
F08.03 F00.06
Output frequency
Slip compensation limit
Actual slip
compensation limit
