hpmont HD09-S Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Detailed Function Introduction
HD09-S Series User Manual V1.1 - 35 -

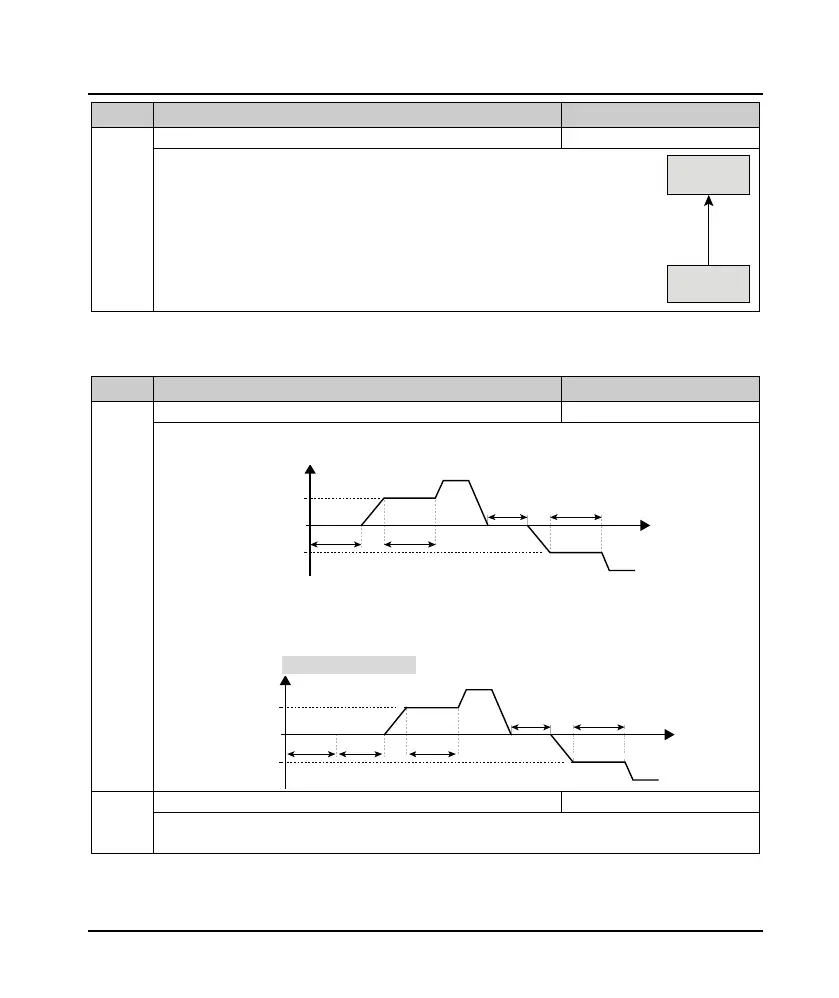

Ref. Code Function Description Setting Range [Default]
F01.03 Copy the parameters to keypad 0 - 2 [0]
0: No action.
• Converter is in normal reading status.
1: Current function code value is copied to keypad storage parameter 1.
2: Current function code value is copied to keypad storage parameter 2.
Note:
1. F01.00, F01.02, F01.03, F20.21 - F20.37 and group y not be copied.
2. Parameter copying is valid only in external keypad.
7.4 F02: Start and Stop Controlling Parameter
Ref. Code Function Description Setting Range [Default]
F02.00 Start mode selection 0,1 [0]
0: Start from starting DWELL frequency.
• Start DWELL frequency see F02.02, F02.03.
1: Brake firstly and then start from DWELL frequency.
• DC braking see F02.04, F02.05.
• Start-up DC-braking is valid only during start-up from stop to operating state. In the REV running
direction, the starting accelerating process in the other direction is invalid. As shown in the following
figure, there is no F02.05 (DC braking time) when reversing.
F02.01 Starting delay time 0.00 - 10.00 [0.00s]
When the inverter receives the run command, it will wait for the delay time set by F02.01 and then start
running.
F01.03 = 1/2
In
ver
ter
Keypad
Up
loa
d
HD09-S pr
ese
nt se
tti
ng
function pa
ram
ete
r
Forward
Reverse
Time
Frequency
F02.01
F02.02
F02.02
0
F02.03
F00.19 F02.03
F02.03
Forward
Reverse
Time
Frequency
F02.01 F02.05
F02.02
F02.02
0
F02.03
F00.19
