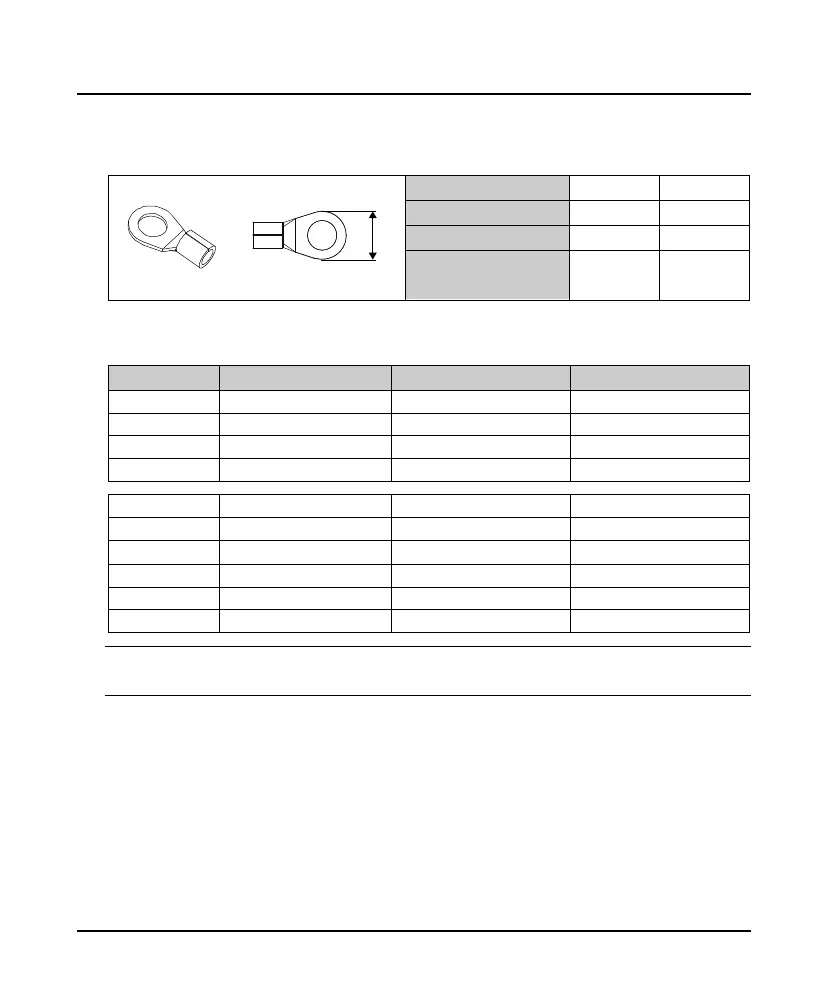

5.1.2 Power Terminal Lug
The terminal lugs (round bare terminals) of the power terminals can be selected according to the
terminal wiring specifications, screw specifications and the max. outer diameter of the lugs.
Size Size A Size B
Screw size M3 M3.5
Tightening torque (N. M) 0.6 - 0.8 0.8 - 1.2
Max. outer diameter of lug
d (mm)
6.1 7
5.2 Braking Resistor
Size Model Resistance Value (Ω) Resistance Power (W)
Size A HD09-2S0P4G-B-S 200 - 300 50
Size A HD09-2S0P7G-B-S 150 - 250 100
Size A HD09-2S1P5G-B-S 100 - 150 200
Size A HD09-2S2P2G-B-S 80 - 100 250
Size A HD09-4T0P4G-S 300 - 400 80
Size A HD09-4T0P7G-S 250 - 350 100
Size A HD09-4T1P5G-S 200 - 300 200
Size A HD09-4T2P2G-S 150 - 250 250
Size B HD09-4T4P0G-S 100 - 150 300
Size B HD09-4T5P5G-S 80 - 100 500
Note:
Only three-phase power (4T) and HD09-B-S built-in braking unit, braking resistor can be optional.
