hpmont HD09-S Series User Manual

Chapter 6 Operation Shenzhen Hpmont Technology Co., Ltd.
- 26 - HD09-S Series User Manual V1.1
6.4 Terminal Control Running
When the terminal controls the operation (F00.11 = 1), the inverter can be started and stopped directly
with the terminal, and the running frequency and the motor running direction.
As follows:

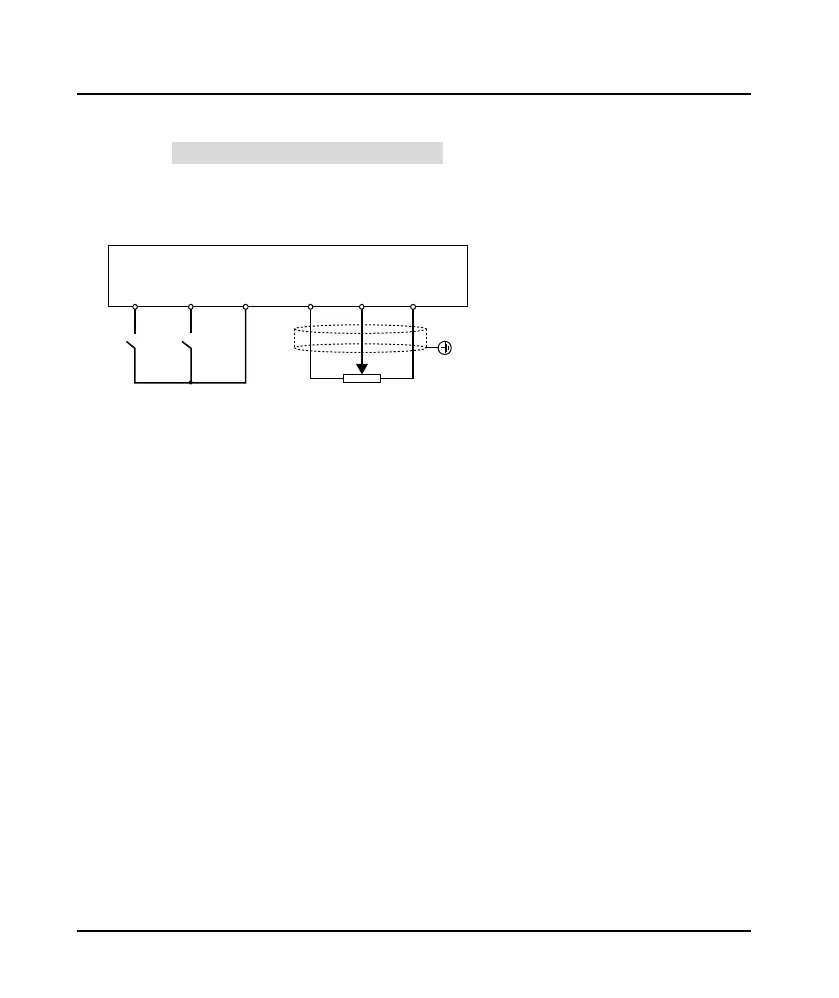

1. After wiring as shown below, turn on the input power.
2. Set the command channel to terminal control (F00.11 = 1).
3. Set the AI setting frequency (F00.10 = 3, F16.01 = 2).
3. Set DI1 terminal FWD (F15.00 = 2), DI2 terminal REV (F15.01 = 3).
4. Set the motor parameters according to the motor nameplate: F08.00 (Rated power), F08.01 (Rated
voltage), F08.02 (Rated current), F08.03 (Rated frequency), F08.04 (Rated speed).
6. Set Acc. / Dec. time: F03.01 (Acc. time), F03.02 (Dec. time).
7. When the K1 is closed, the motor is running; When K2 is closed, the motor is running in REV.
8. K1, K2 are closed or disconnected at the same time, the inverter stops.
DI1
K1
K2
DI2 GND
HD09-S
+10
AI GND
