hpmont HD09-S Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Detailed Function Introduction
HD09-S Series User Manual V1.1 - 43 -
7.8 F06: Multistage Speed Function
Ref. Code Function Description Setting Range [Default]
F06.00 Multiple frequency instruction 1 F00.09 – F00.08 [5.00Hz]
F06.01
Multiple frequency instruction 2
F00.09 – F00.08 [5.00Hz]
F06.02 Multiple frequency instruction 3 F00.09 – F00.08 [5.00Hz]
F06.03
Multiple frequency instruction 4
F00.09 – F00.08 [5.00Hz]
F06.04 Multiple frequency instruction 5 F00.09 – F00.08 [5.00Hz]
F06.05
Multiple frequency instruction 6
F00.09 – F00.08 [5.00Hz]
F06.06 Multiple frequency instruction 7 F00.09 – F00.08 [5.00Hz]
Define the multistage speed operation mode in the speed of initial value.
7.9 F08: Motor Parameter
Mutual inductance is calculated by the following formula:
Mutual inductance F08.10 =
F08.01 /
√
3
2π × F08.03 × F08.11
− F08.09
Ref. Code Function Description Setting Range [Default]
F08.00
Motor rated power
0.2 - 5.5kW [Type confirmed]
F08.01
Motor rated voltage
0 - 999V [Type confirmed]
F08.02
Motor rated current
0.01 - 99.99A [Type confirmed]
F08.03
Motor rated frequency
1.0 - 400.0 [50.0Hz]
F08.04
Motor rated RPM
1 - 24000rpm [Type confirmed]
F08.00 - F08.04 motor rated parameters need to be in accordance with the motor nameplate.

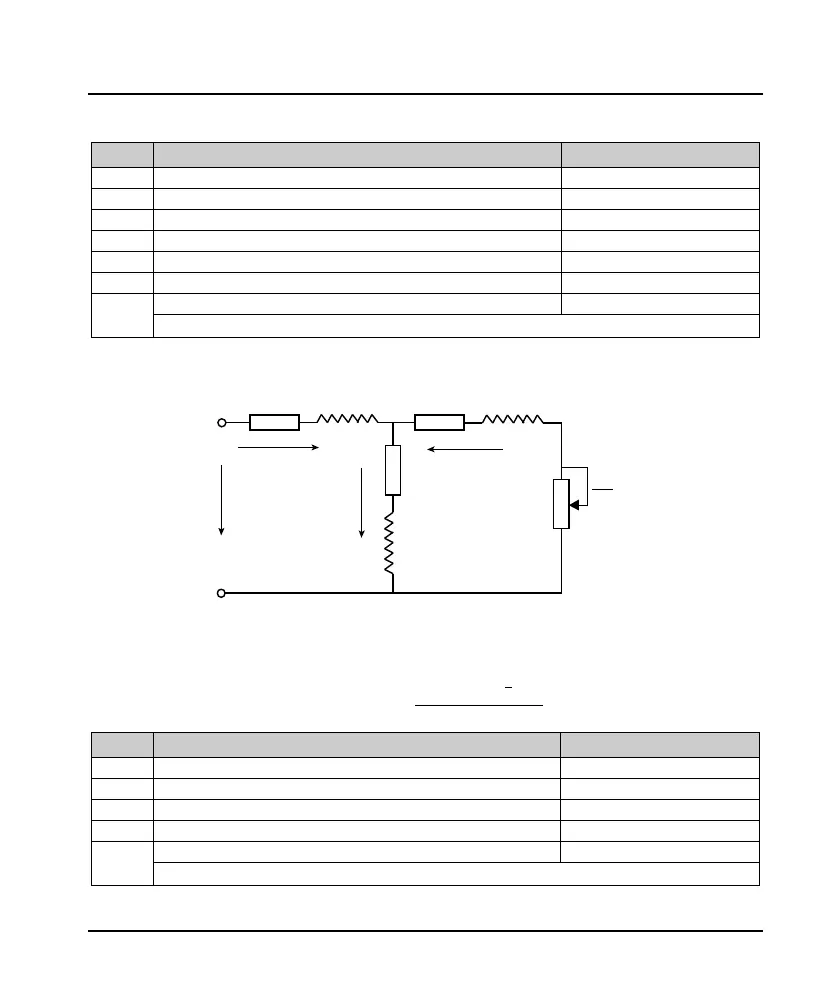

L m
R1=F08.07 (Stator resistance)
R2=F08.08 (Rotor resistance)
Io=F08.11 (Excitation current)
R1 R2LI
I1 I2
S
1-S
R2
LI
LI=F08.09 (Leakage inductance)
Lm=F08.10 (Mutual inductance)
S=Slip ratio
U1
Io
