HT 400 Series User Manual

400 Series
EN - 9

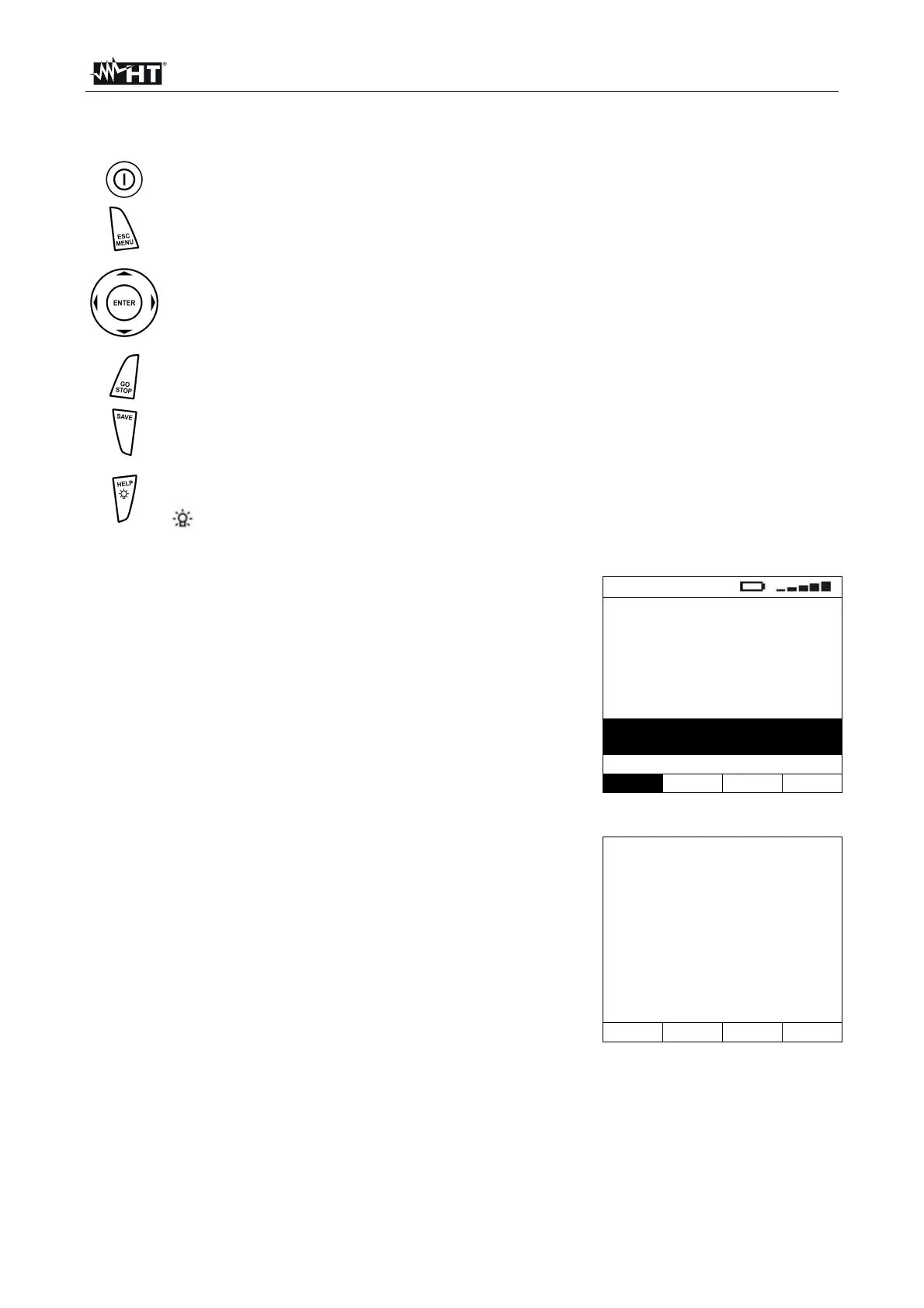

4.3. KEYBOARD DESCRIPTION
The keyboard includes following keys:
ON/OFF key to switch on/off the instrument
ESC key to exit the selected menu without confirming
MENU key to activate menu management
    keys to move the cursor through the different screens in order to
select the desired programming parameters
ENTER key to confirm the modifications and the selected programming
parameters and to select the function from the menu
GO key to start measurements
STOP key to stop measurements
SAVE key to save the measured values
HELP key (long pressure) to display an indicative scheme of the connections
between the instrument and the system being tested in the function set
key (short pressure) to turn on the display’s backlighting
4.4. DISPLAY DESCRIPTION
The display is a graphic module with a resolution of 128 x 128
dots. The display’s first line indicates the type of active
measurement and the battery charge indicator
LOW
-.-- 
R+ R-
-.-- -.--
--- mA --- mA
Measuring…
AUTO
1.00 0.12
Func Lim CAL
4.5. INITIAL SCREEN
When turning on the instrument the instrument displays an
initial screen for a few seconds. It displays the following:
 the instrument’s model
 the manufacturer’s name
 the serial number (SN:) of the instrument
 the firmware version (FW:) in the instrument's memory
 the date of calibration (Calibration:).
COMBI 421
HT ITALIA
SN: 14020100
FW: 1.22
Calibration:
22/05/2014
Then, the instrument switches to the last function selected.

HT 400 Series Specifications

General

Type	Digital Multimeter
Diode Test	Yes
Auto Ranging	Yes
Data Hold	Yes
Operating Temperature	0°C to 40°C
DC Current Range	400μA to 10A
AC Current Range	400μA to 10A
Resistance Range	400Ω to 40MΩ
Continuity Test	Yes
Display	LCD, 4000 counts
Measurement Range	As per individual functions
