AIR air speed by means of air-speed transducer
RH air humidity by means of humidity transducer
TMP °F air temperature in °F by means of thermometric transducer
TMP °C air temperature in °C by means of thermometric transducer
Lux lighting by means of luxmetric transducer
VOLT input voltage (without applying any transduction constant)

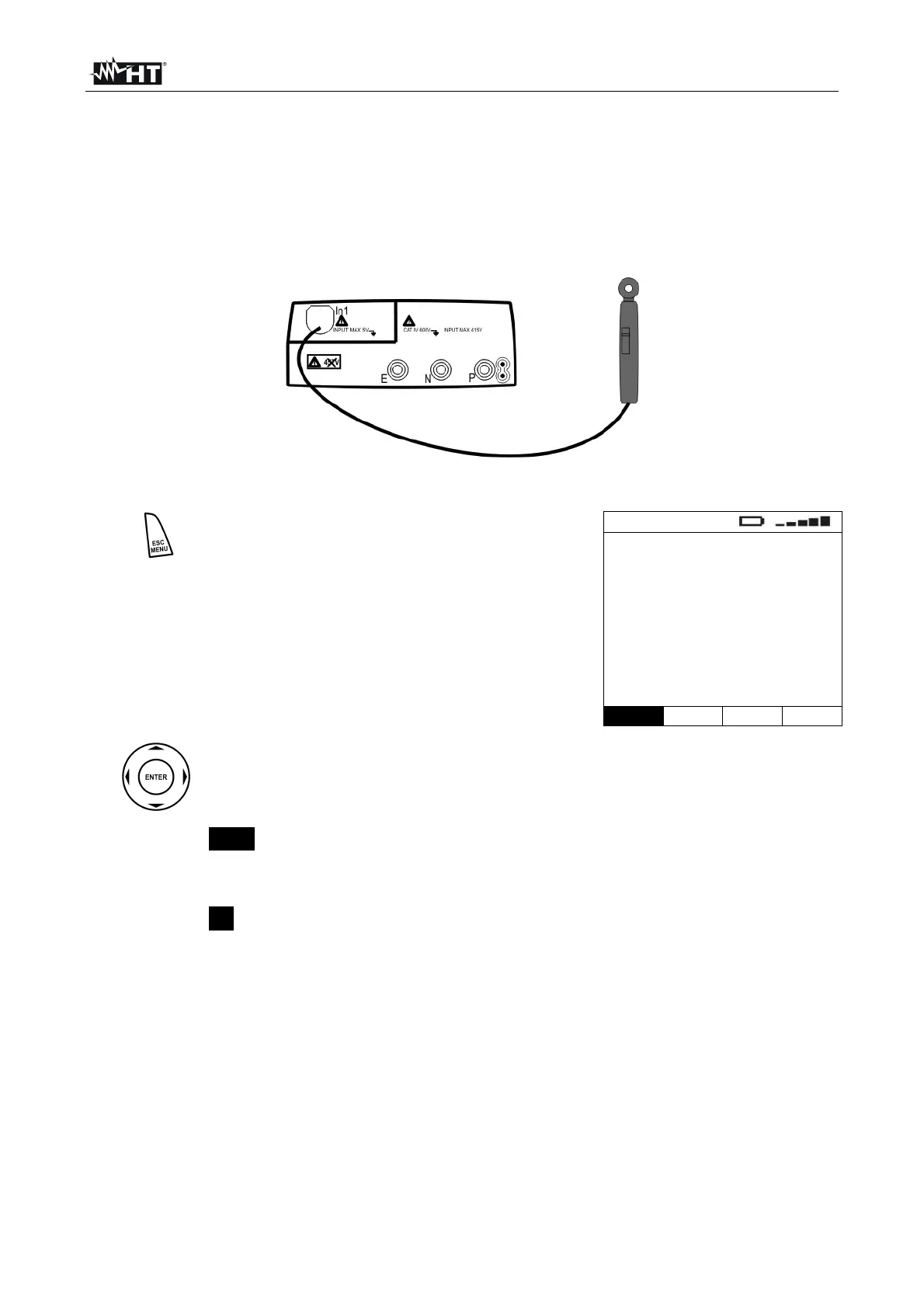

Fig. 28: Connection between an environmental probe and the instrument
1.
Press the MENU key, move the cursor to AUX
in the main menu by means of the arrow keys
(,) and confirm with ENTER. Subsequently
the instrument displays a screen similar to the
one reported here to the side. The instrument
measures and shows on the display the instant
value of the input parameter in real time, and
RUN appears in the right bottom part of the
display
AUX
In1 = 7.08 Lux
Lux LX 20
RUN
Func FS
2.
Use the , keys to select the parameter to be modified, and the , keys
to modify the parameter value.
It is not necessary to confirm the selection with ENTER.
Func
The virtual Func key allows setting the the type of environmental
measurement to perform, which may be: AIR, RH, TMP °F, TMP
°C, Lux, VOLT
FS
The virtual FS key, active only when the Lux mode has been
selected with the Func key, allows selecting the clamp full scale
among the values: 20, 2k, 20k
