HT GSC60 - Page 34

GSC60
EN - 32

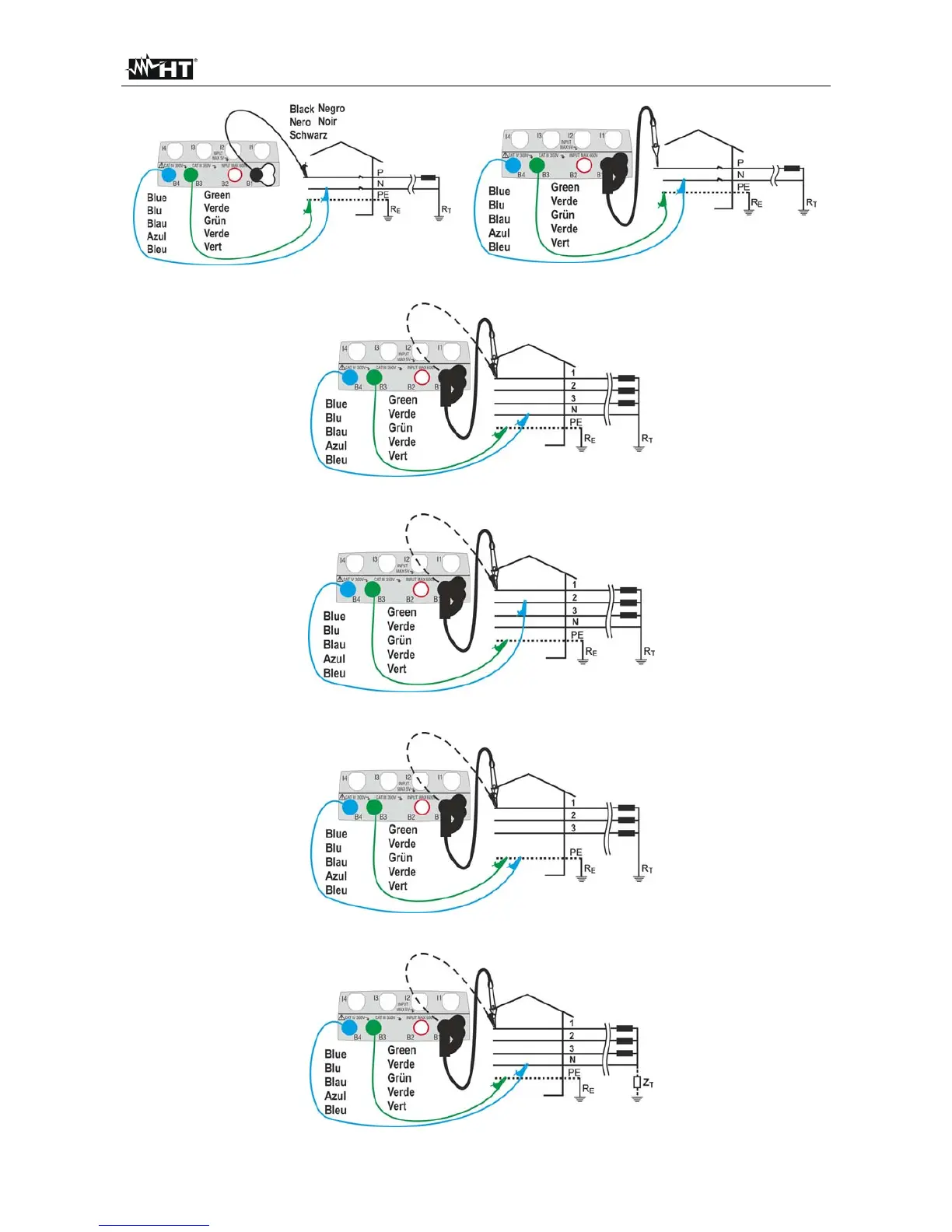

Fig. 18: P-N/P-PE measure for single-phase/two-phase 230V with cables and remote lead
Fig. 19: P-N/P-PE test for 400V+N+PE by means of single cables and remote lead
Fig. 20: P-P test for 400V+N+PE three-phase systems
Fig. 21: P-PE/P-N test for 400V + PE (no N) by means of single cables and remote lead
Fig. 22: P-PE measurement for IT systems by means of single cables and remote lead
