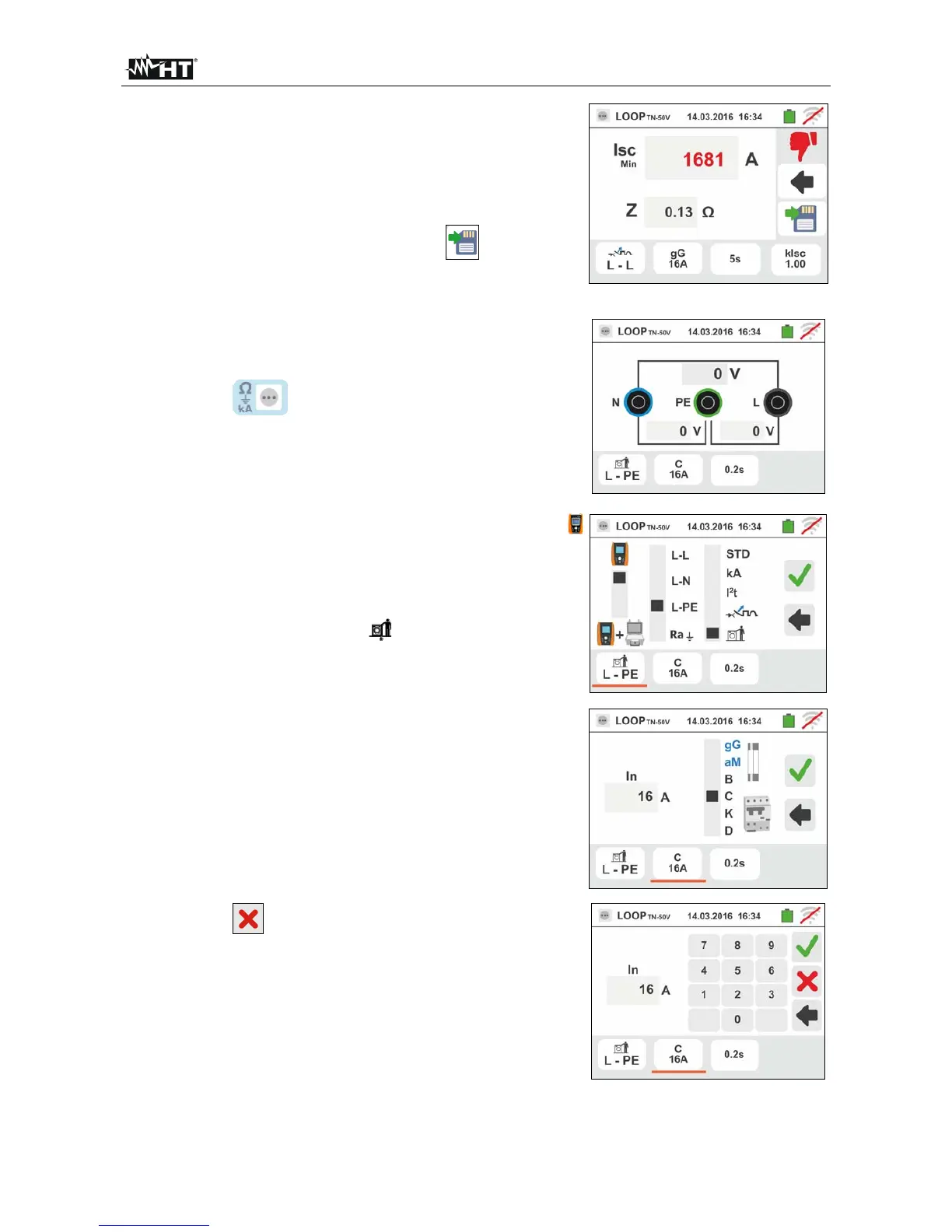

9. In case of negative result (minimum short-circuit current
NOT interrupted by the protection device within the time
indicated by the performed selections), the screen to
the side is displayed by the instrument.
Note the presence of the measurement result
highlighted in red.
Press the SAVE button or touch the icon to save
the measurement (see § 7.1).
6.4.7. Verify of protection against indirect contacts (TN system)
1. Select the options "TN", “25 or 50V”, “50Hz or 60Hz”
and the reference voltage in the general settings of the
instrument (see § 5.1.4).
Touch the icon. The screen to the side appears
on the display.
Touch the lower icon. The following screen appears on
the display:
2.
Move the left slide bar reference by selecting the
icon to execute the measurement.
Move the central slide bar reference by selecting the
"L-PE" option. The right slide bar reference is
automatically set in position .
Confirm the choice by going back to the initial
measurement screen.
3. Move the slide bar reference by selecting the type of
protection (Fuse of type gG or aM or magnetothermal
MCB in curve B, C, K, D).
Touch the “In” field. The following screen appears on
the display
4.
Touch the icon to zero the value in the In field and
use the virtual keyboard to set the value of the nominal
current of the protection within the values allowed by
the instrument (see § 6.4.4)
Confirm the choice by going back to the previous
screen.
Touch the icon in the lower right corner to set the
tripping time of the protection. The following screen
appears on the display
