6.6. LEAKAGE: LEAKAGE CURRENT MEASUREMENT AND RECORDING

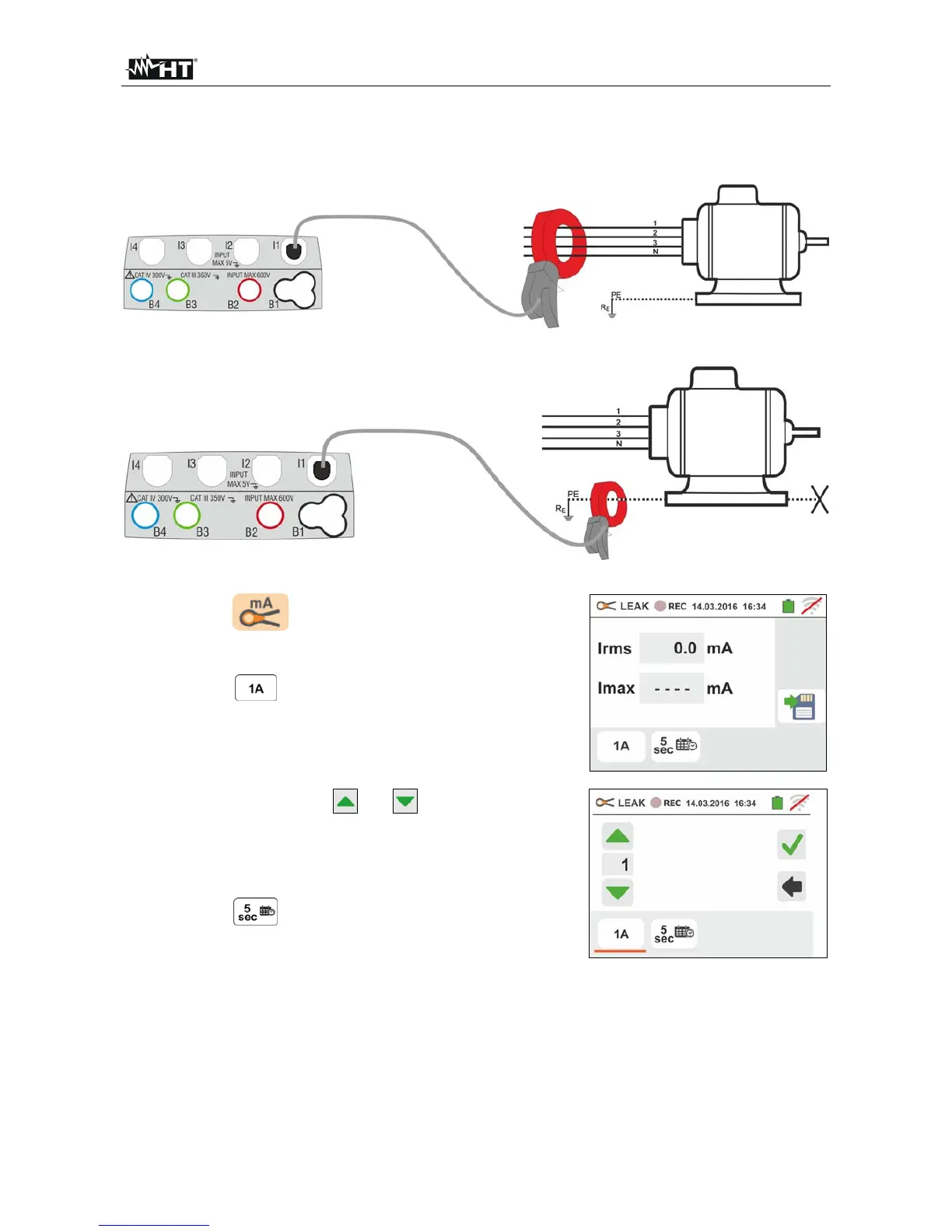

This function allows measuring and recording the leakage current in single-phase or three-
phase systems by means of the optional accessory HT96U clamp.
Fig. 25: Indirect measurement of leakage current in three-phase systems
Fig. 26: Direct measurement of leakage current in three-phase systems
1.
Touch the icon. The screen to the side appears
on the display.
Touch the icon to set the full scale of the used
clamp. The following screen appears on the display:
2.
Touch the arrow keys
or to set the full scale
value of the selected HT96U clamp in the 1A ÷ 3000A
range. Press and hold the keys for a quick selection of
values
Touch the icon to set recording parameters. The
following screen appears on the display
:
To Next Page
