GSC60
EN - 88

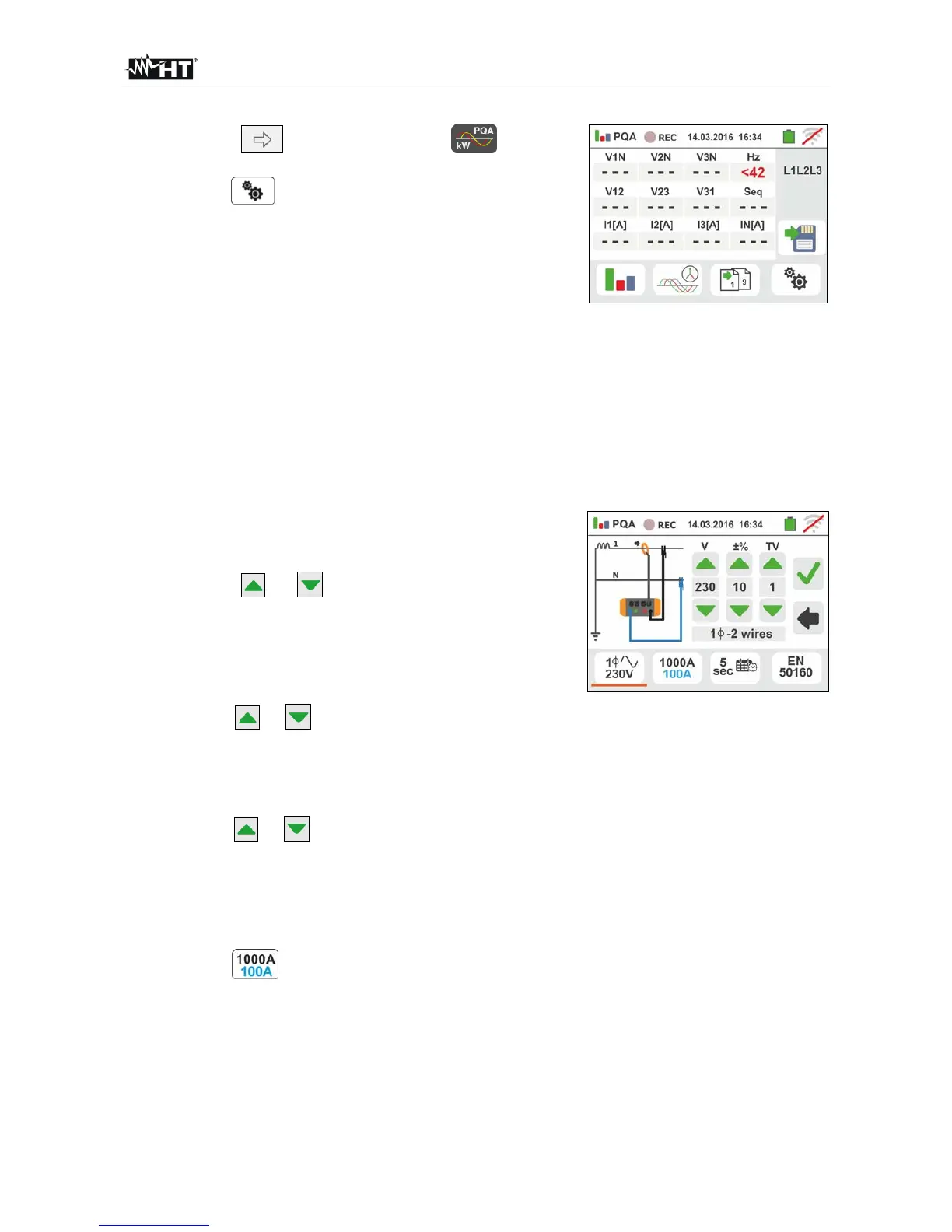

6.10.2. General settings
1.
Touch the icon and then the icon. The
display shows the screen on the right.
Touch the icon in order to set:
The type of connection
The nominal reference voltage and the percentage
of positive and negative thresholds for the detection
of voltage anomalies
The ratio of possible VT transformers presents on
the installations
The type and the full scale of transducers clamps
used for phase and neutral currents
The aggregation time and the type of recording
start/stop
The type of possible pre-set configuration
The display shows the following screen
2. Touch the interactive scheme to select the type of
connection among the possible situations of § 6.10.1.
Note the description in the bottom part of the display.
Touch the or icon keys in order to set the
nominal value V of the phase-neutral voltage (single-
phase or three-phase 4-wire systems) for the detection
of voltage anomalies (sags, swells) within the range:
12V 600V. Press and hold the keys for a quick
selection of value.
Touch the or icon keys in order to set the %
percentage of positive (sags detection) and negative
(swell detection) thresholds with respect to the nominal
voltage within the range: 3% 30%. Press and hold the
keys for a quick selection of values
Touch the or icon keys in order to set the ratio
of possible VT transformers presents on the
installations within the range: 1 3000. Press and hold
the keys for a quick selection of values. With no VT on
the installation (direct connection) the value of this
parameter must be always 1
Touch the icon in order to set the type and the full
scale of the used transducer clamps. The display
shows the following screen
