GSC60
EN - 40
4.

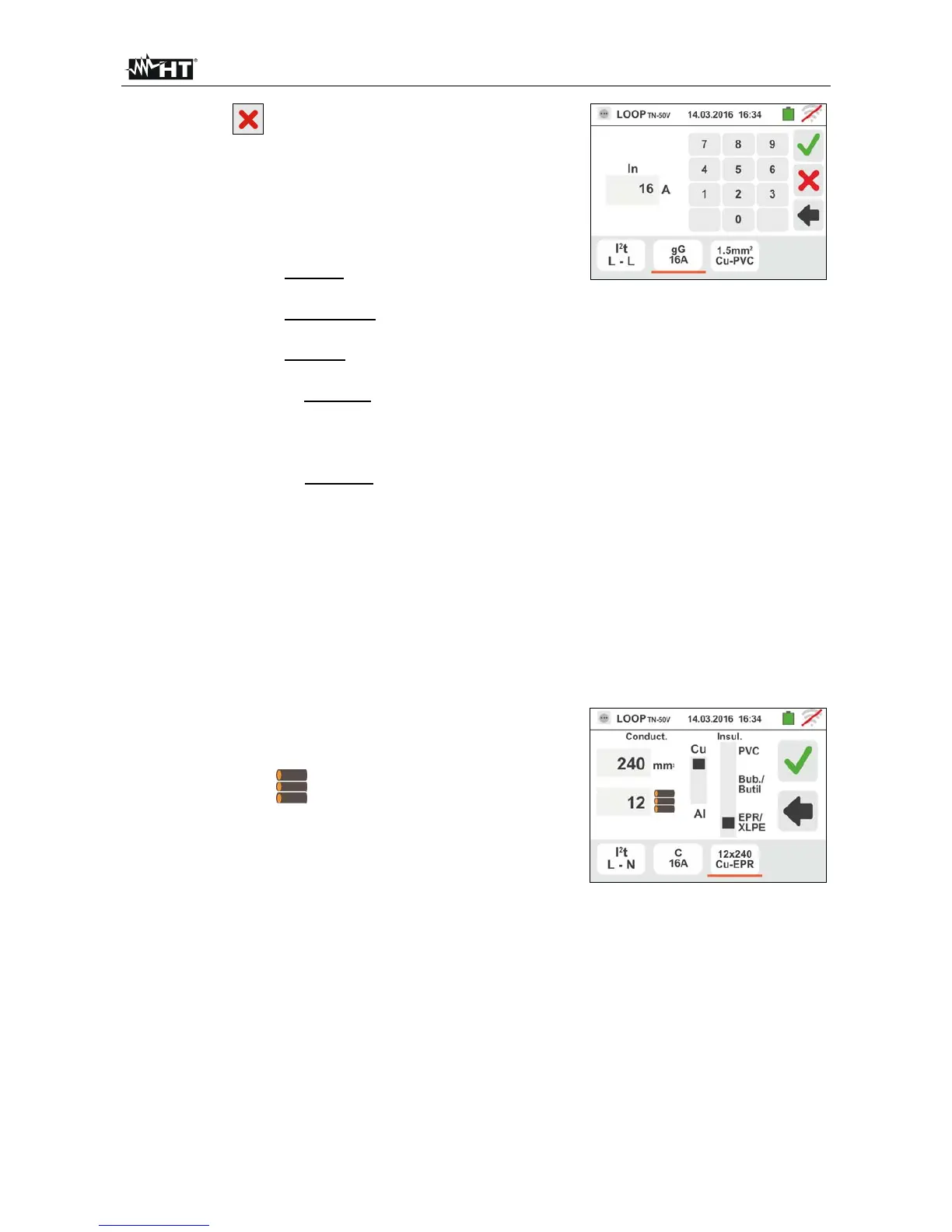

Touch the icon to zero the value in the In field and
use the virtual keyboard to set the value of the RCD
rated current within the values allowed by the
instrument.
The following selections are available on the instrument
MCB current (B curve) selectable among:
6,10,13,15,16,20,25,32,40,50,63A
MCB current (C, K curves) selectable among:
0.5,1,1.6,2,4,6,10,13,15,16,20,25,32,40,50,63A
MCB current (D curve) selectable among:
0.5,1,1.6,2,4,6,10,13,15,16,20,25,32A
Nominal current Fuse gG selectable among:
2, 4, 6, 8, 10, 12, 13, 16, 20, 25, 32, 40, 50, 63, 80,
100, 125, 160, 200, 250, 315, 400, 500, 630, 800,
1000, 1250A
Nominal current Fuse aM selectable among: 2, 4, 6,
8, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125,
160, 200, 250, 315, 400, 500, 630A
Confirm the choice by going back to the previous
screen.
Touch the icon in the bottom right corner to set the
type, section and material forming the inner insulation
of the cable of the line under test. The following screen
appears on the display:
5.
Touch the “mm
2
” field and, by using the virtual
keyboard, set and confirm the section value of the
single cable free selectable
Touch the field “ ”and, by using the virtual keyboard,
set and confirm the possible number of parallel cords.
In the case that the circuit have only one conductor set
the “1” value
Move the central slide bar reference by selecting the
type of conductor. The available options are Cu
(Copper) and Al (Aluminum).
Move the right slide bar reference by selecting the
insulation type of the cable between the options: PVC,
Rub/Butil (Rubber/Butyl rubber) and EPR/XLPE
(Ethylene propylene rubber/Cross-linked polyethylene)
Confirm the choice by going back to the initial
measurement screen.
