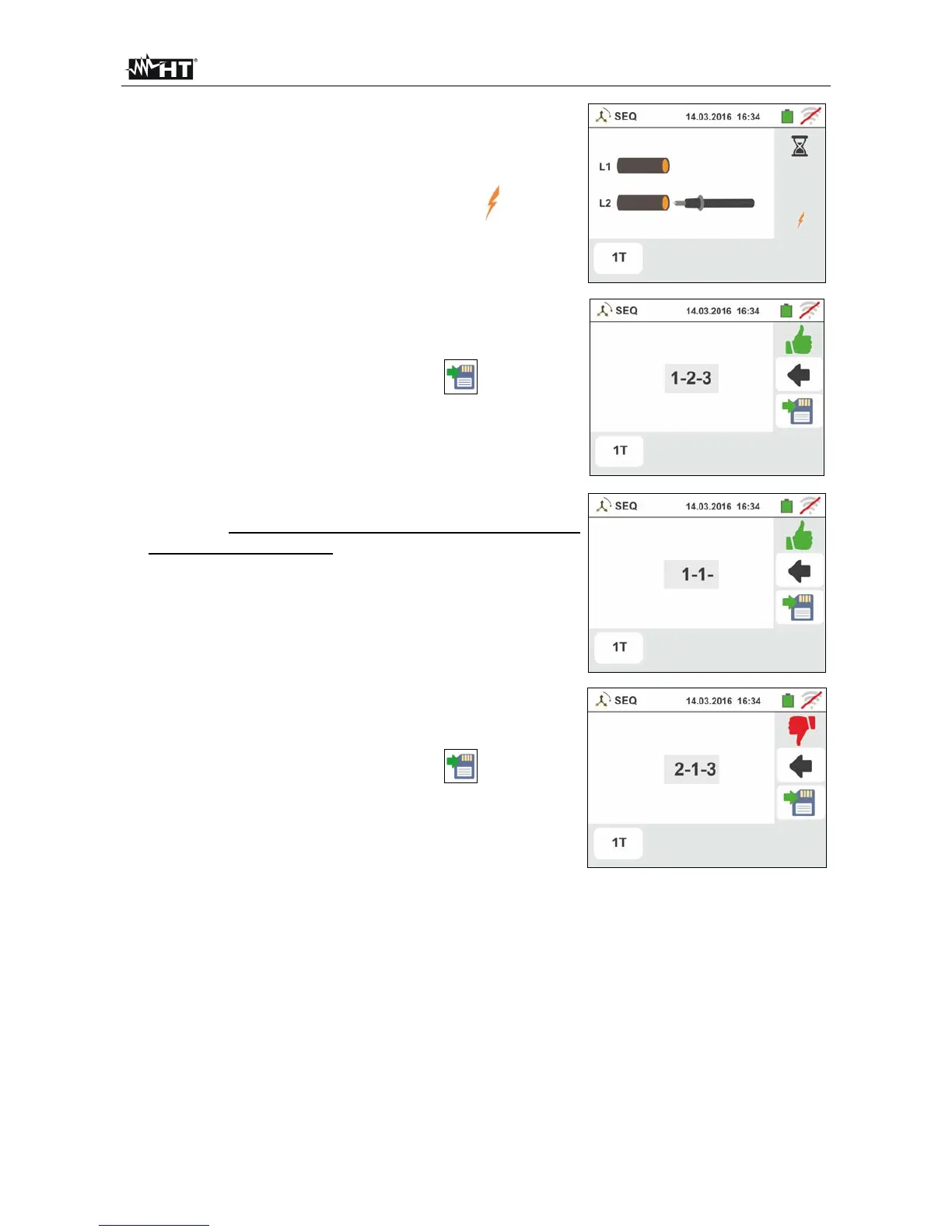

7. The symbol for the tip on phase L2 and the hourglass
indicating the status of pending recognition of a voltage
higher than the maximum allowed.
Once the correct voltage recognized, the symbol is
shown on the display.
8. At the end of the test, if the detected phase sequence
is correct, the instrument displays a screen like the one
shown to the side (result "1-2-3").
Press the SAVE button or touch the icon to save
the measurement (see § 7.1).
9. At the end of the test, if the two detected voltages are
in phase (phase concordance between two distinct
three-phase systems), the instrument displays a
screen like the one to the side (result "1-1-").
10 At the end of the test, if the detected phase sequence
is not correct, the instrument displays a screen like the
one shown to the side (result "2-1-3").
Press the SAVE button or touch the
icon to save
the measurement (see § 7.1).
