GSC60
EN - 66
11Drive the auxiliary rods into the ground keeping to the distance instructions provided by the
standards (see § 12.12).
12Connect the alligator clips to the auxiliary rods and to the installation under test
according to Fig. 27, Fig. 28, Fig. 29 or Fig. 30.
13
Press the GO/STOP key. During this whole stage, do
not disconnect the measuring leads of the instrument
from the system under test. The symbol is shown on
the display for the entire duration of the test.

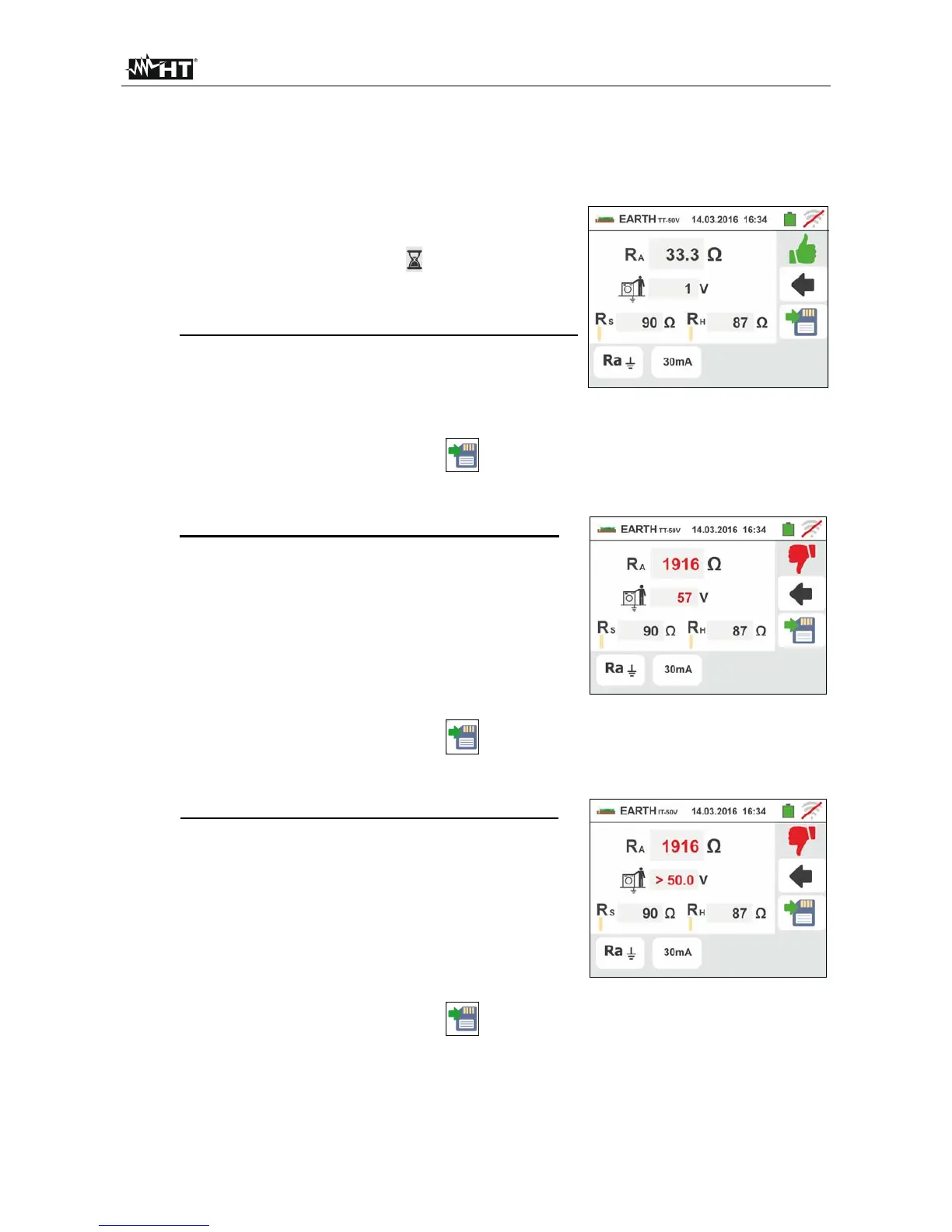

For earth resistance measurement in TT/IT systems,
in case of positive result, the screen to the side is
displayed by the instrument. It contains the value of
contact voltage in the secondary display, the value of
contact resistance of the voltage probe (Rs) and the
value of contact resistance of the current probe (Rh).
Press the SAVE button or touch the icon to save
the measurement (see § 7.1).
14
For earth resistance measurement in TT systems, in
case of negative result (see § 12.7), the screen to the
side is displayed by the instrument. It contains the
value of contact voltage in the secondary display, the
value of contact resistance of the voltage probe (Rs)
and the value of contact resistance of the current probe
(Rh).
Note the presence of the measurement result
highlighted in red.
Press the SAVE button or touch the icon to save
the measurement (see § 7.1).
15
For earth resistance measurement in IT systems, in
case of negative result (see § 12.8), the screen to the
side is displayed by the instrument. It contains the
value of contact voltage in the secondary display, the
value of contact resistance of the voltage probe (Rs)
and the value of contact resistance of the current probe
(Rh).
Note the presence of the measurement result
highlighted in red.
Press the SAVE button or touch the
icon to save
the measurement (see § 7.1)
