GSC60
EN - 93
16

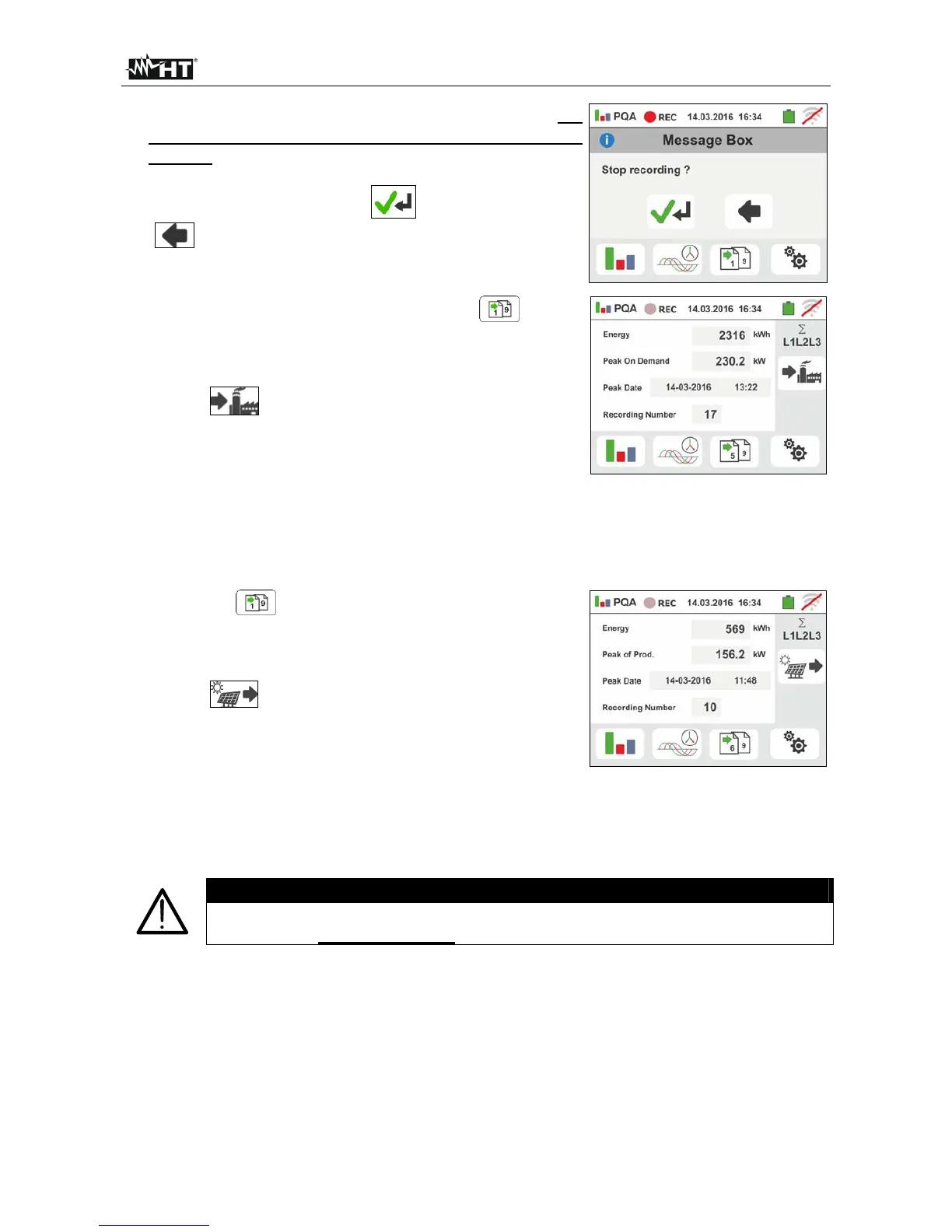

Press the GO/STOP key to stop recording; the
instrument automatically saves the result in its
memory (see § 7.1.3). The message to the side is
shown.
Confirm by touching the “ ” icon or touch the
“ ” icon to go back to the previous screen
17
After recording has stopped, touch the icon in
order to select the display of the absorbed
power/energy measured by the instrument as shown in
the screen to the side. The following items are included:
The icon, which indicates the consumption of
power/energy absorbed by the load
The value of absorbed energy while recording
The peak of power absorbed while recording
The date/time of the above-mentioned peak of
power
The number of recordings to which the above
results are referred
18
Touch the icon in order to select the display of
generated power/energy measured by the instrument
as shown in the screen to the side. The following items
are included:
The icon, which indicates the consumption of
power/energy generated by the load
The value of generated energy while recording
The peak of power generated while recording
The date/time of the above-mentioned peak of
power
The number of recordings to which the above
results are referred
CAUTION
The visualization of powers/energies absorbed/generated are only real time
readings and cannot be saved inside the instrument’s memory.
