Table 5-4 Fuses for models with MCCB input
Fuse No.
Description
FU1
Fuse of L1 indicator for route I
FU2
Fuse of L2 indicator for route I
FU3/4/5
Main route input L1/L2/L3 fuses (AC INPUT VOLT
SAMPLE)
FU6/7/8
UPS output U/V/W fuses (IT INPUT VOLT SAMPLE)
FU9
Fuse of L3 indicator for route I
FU10
Reserved

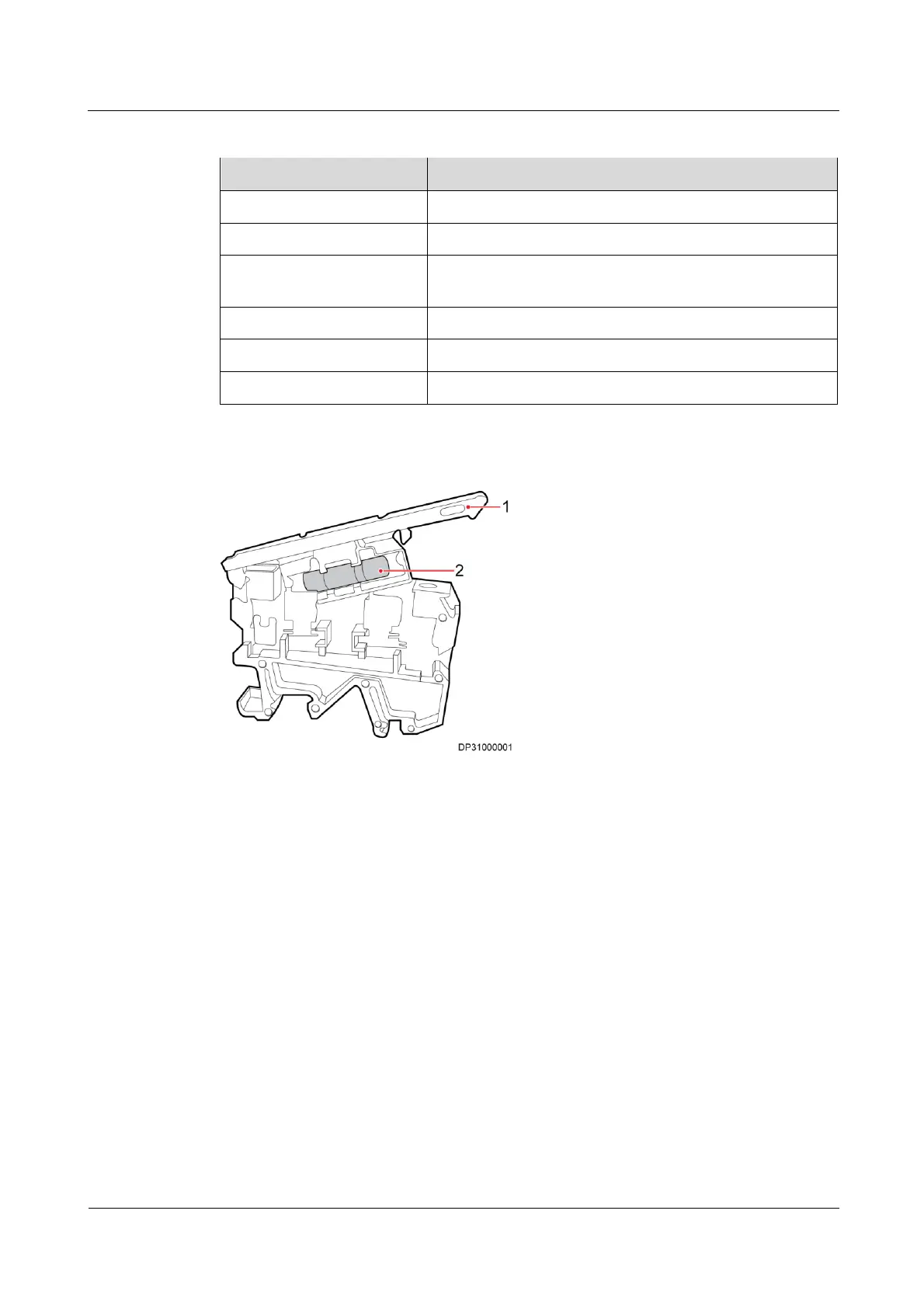

Figure 5-16 Fuse
(1) Cover
(2) Fuse
Procedure
Step 1 Remove the protective panel, as shown in Figure 5-17.
