Step 3 Remove the air filters.
Step 4 Remove the condensate pump, as shown in Figure 5-33.

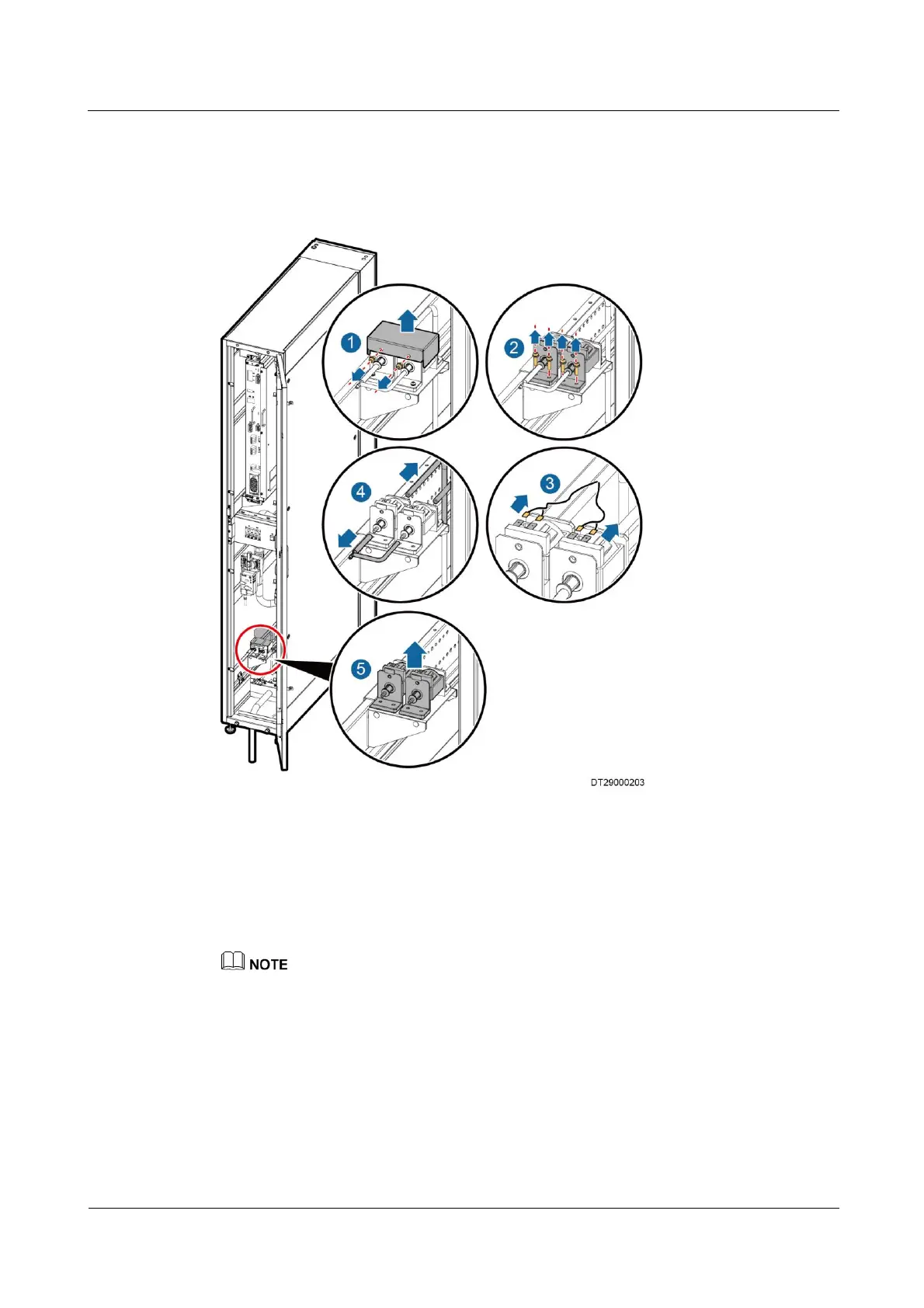

Figure 5-33 Removing condensate pump components
1. Remove the two screws from the cover of the condensate pump using a Phillips
screwdriver and take off the cover.
2. Use a Phillips screwdriver to remove the four screws that secure the condensate pump.
3. Remove the control cables from the condensate pump.
4. Remove the forcible consulate drainpipe.
Pre-heat the forcible condensate drainpipe to facilitate removal.
5. Take off the condensate pump.
Step 5 Install a new condensate pump and connect cables in a reverse order of Step 4.1 to Step 4.4.
