Huawei FusionModule5000 Maintenance Guide

FusionModule5000 Smart Modular Data Center
Maintenance Guide (ECC800)
5 Parts Replacement
Issue 01 (2019-03-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
167
Name
Exterior
Description
Pad power connector holder
Obtain it from the pad
mounting kit materials
(BOM number: 21242016).
Procedure
Step 1 Remove the pad power connector and its holder from the door box, as shown in Figure 5-62.

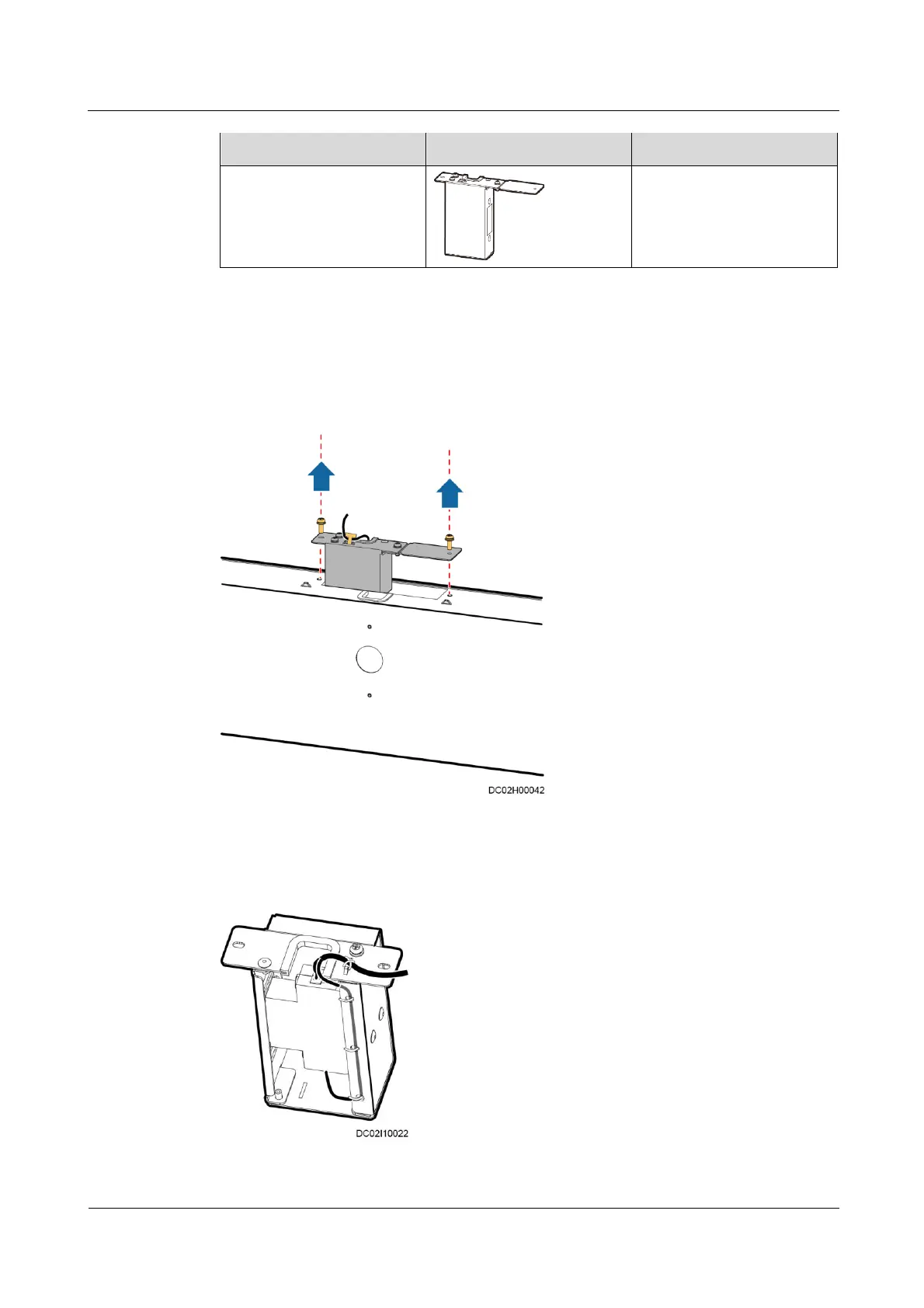

Figure 5-62 Removing a pad power connector holder and its holder
Step 2 Disconnect cables from the power connector, as shown in the following figures.
Figure 5-63 Disconnecting cables from the power connector (BOM number: 14190892)
