A water sensor consists of a water detection rope, water detector, and conversion cable. The
water detection cable is laid out on the floor, connected to the water detector placed near the
collector by the conversion cable. Figure 5-73 shows the components.

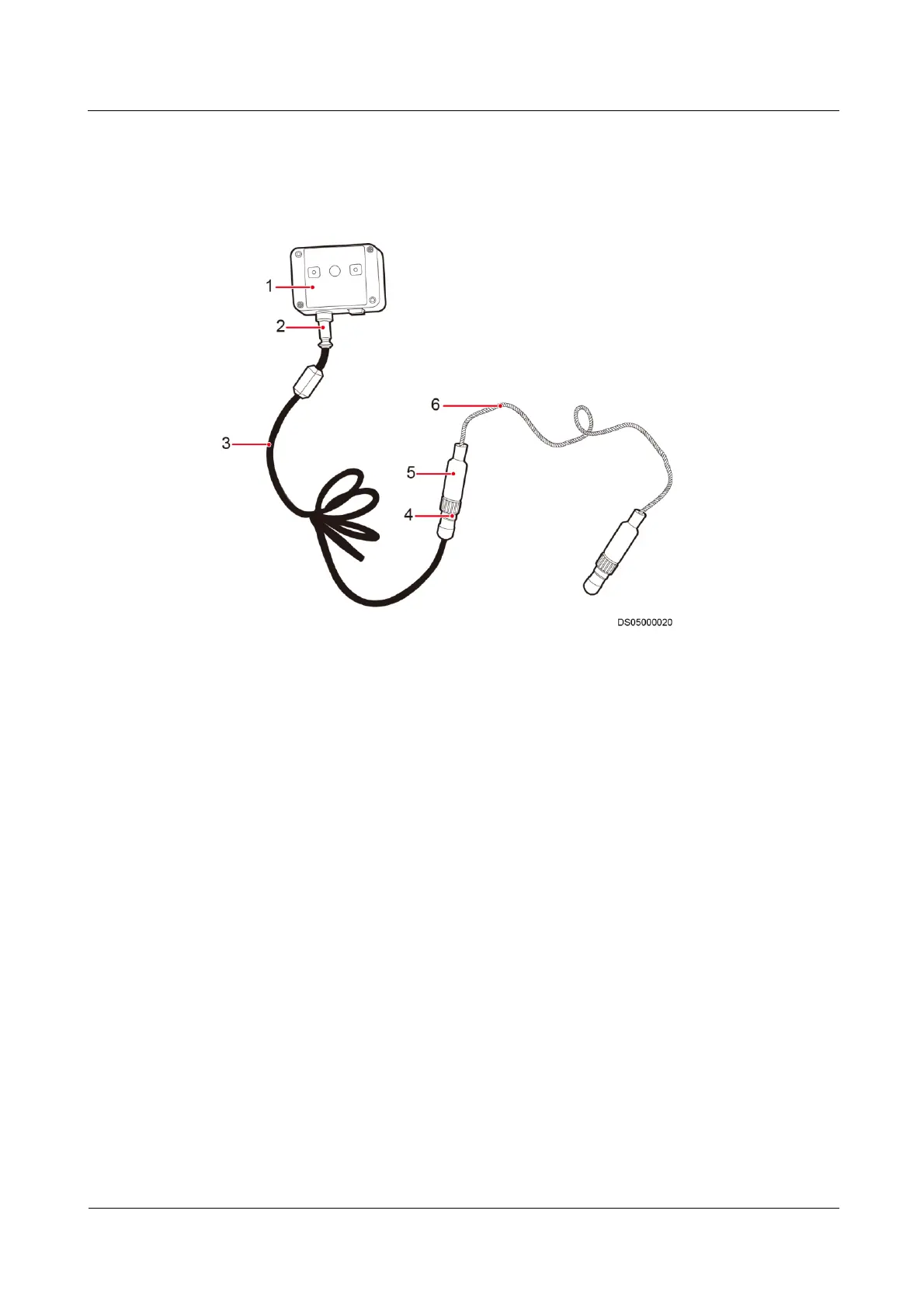

Figure 5-73 Water sensor components
(2) Conversion cable end A,
connecting to the water detector
(4) Conversion cable end B,
connecting to water the
detection rope
(5) Water detection rope end A,
connecting to the conversion
cable
Recommended tools and materials: crimping tool
Procedure
Step 1 Replace the water detector.
1. Remove the conversion cable at the conversion port for the water detector and
conversion cable.
2. Connect a new water detector to the conversion cable, as shown in Figure 5-74.
3. Secure the new water detector.
