5.4.5 Replacing a Smart ETH Gateway
Prerequisites
Tools: ESD wrist strap, ESD gloves, Phillips screwdriver, step ladder, labels, marker
Materials: A spare smart ETH gateway of the same model is available and functional.
Context
A smart ETH gateway can be installed in the following two positions based on the project
conditions:
If the M-shaped cable troughs are deployed for the module, install the smart ETH
gateway on the M-shaped cable trough on the top of the Converged Cabinet, as shown in
Figure 5-50.

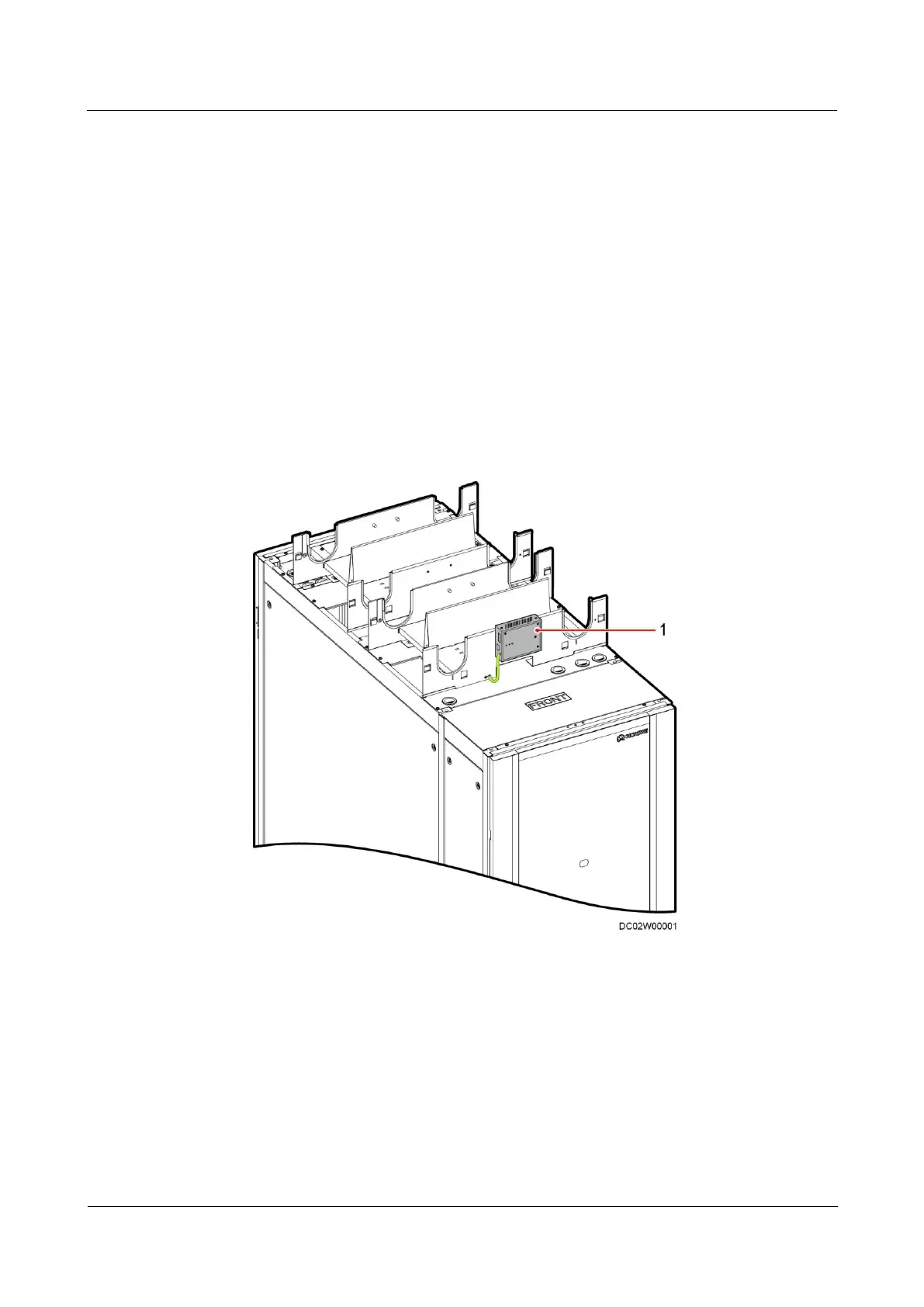

Figure 5-50 Position 1 for installing the smart ETH gateway
If M-shaped cable troughs are not deployed for the module, install the smart ETH
gateway on the top of the Converged Cabinet, as shown in Figure 5-51.
