FusionModule800 Smart Small Data Center
Maintenance Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

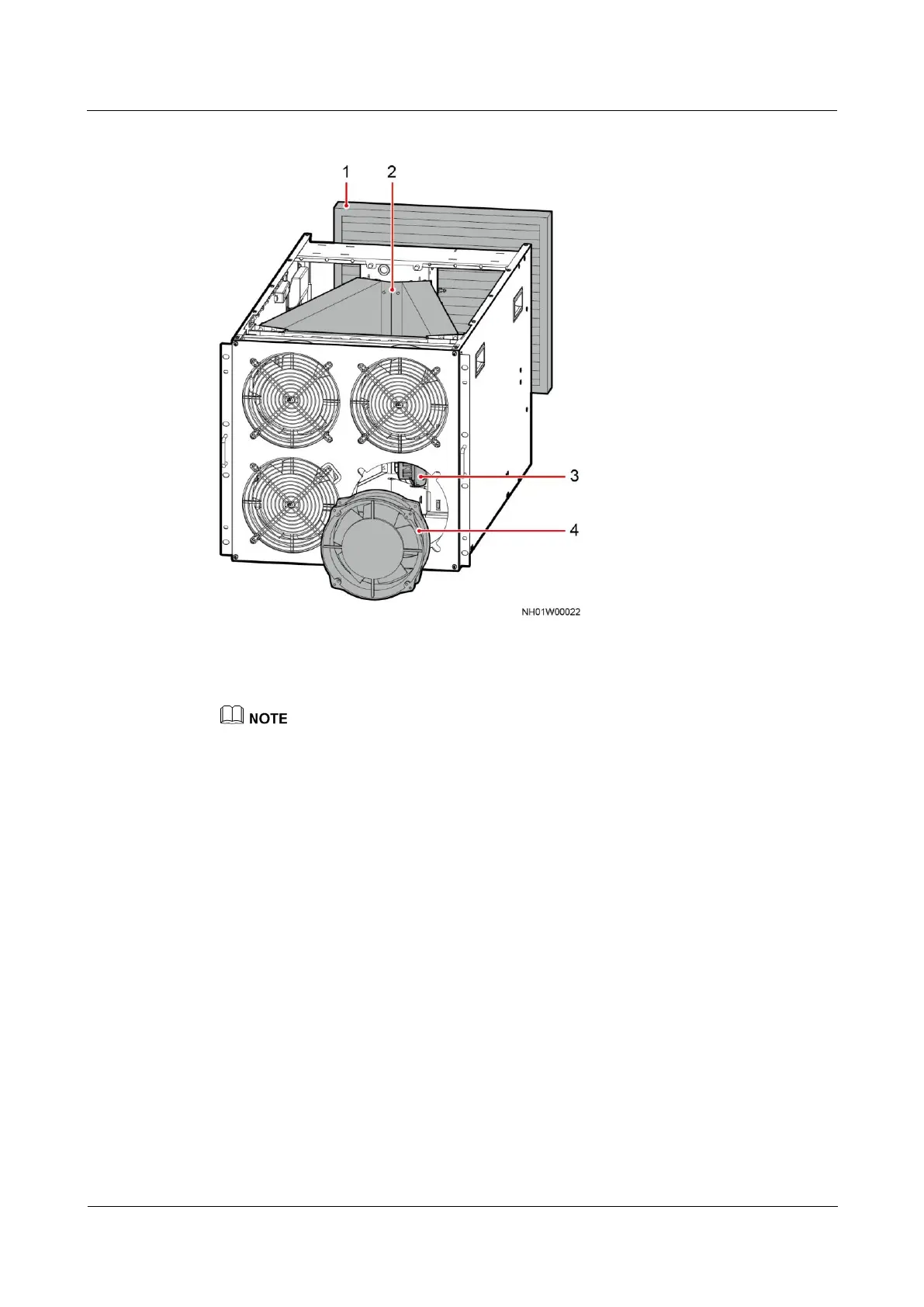

Figure 5-25 Indoor unit components (front)
(3) Electric heater (optional)
There are four fans in the front. The left one at the bottom is fan 2, and the right one at the bottom is fan
4.
5.3.1.1 Replacing a Return Air Filter
Prerequisites
Tool: Phillips screwdriver.
A return air filter needs to be replaced.
A spare return air filter of the same model is available and functional.
Context
The return air filter is maintained from the rear.
Procedure
Step 1 Loosen (no need to remove) the screw on the baffle plate using a Phillips screwdriver.
Step 2 Stir the baffle plate, and take out the return air filter, as shown in Figure 5-26.
