FusionModule800 Smart Small Data Center
Maintenance Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

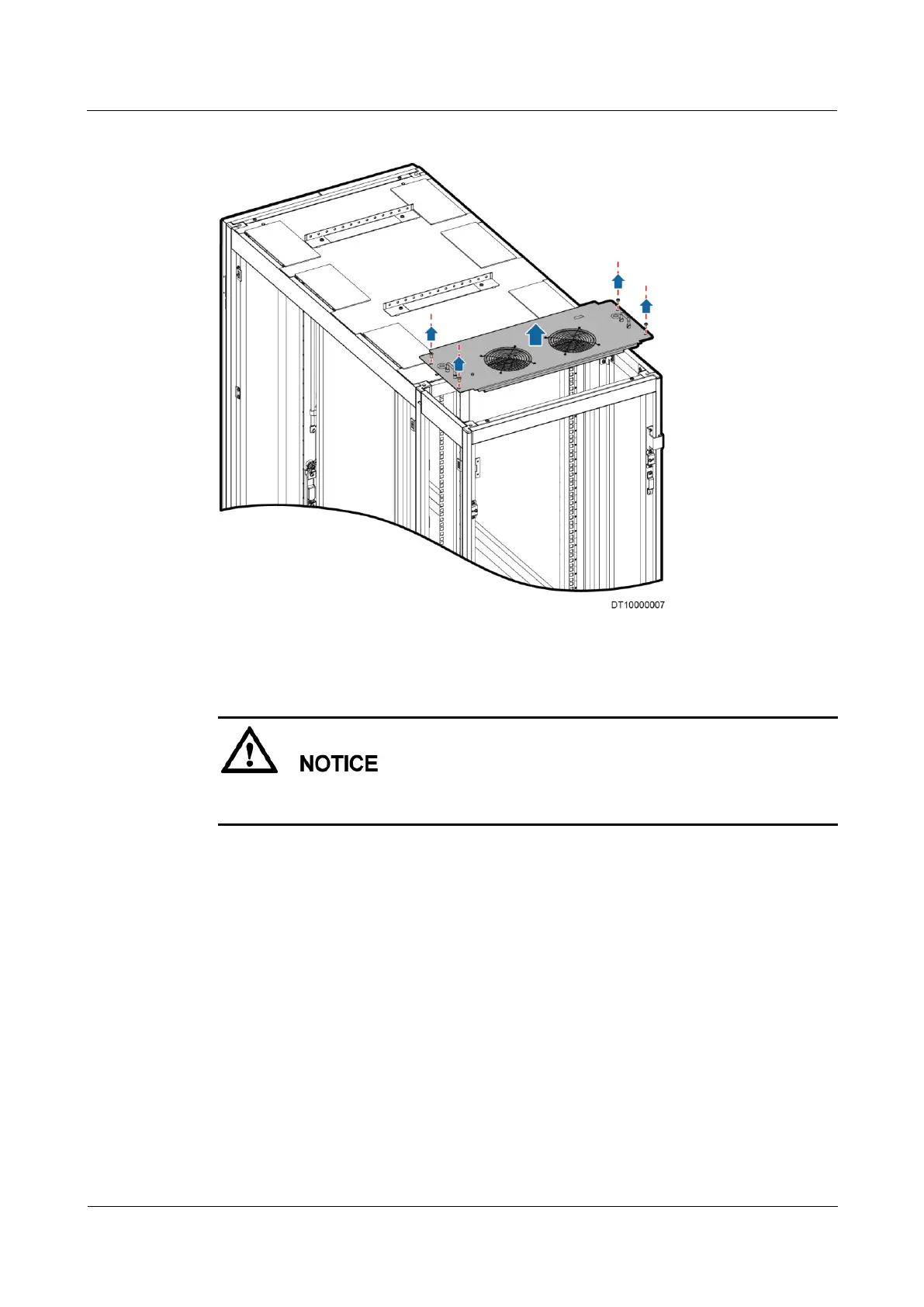

Figure 5-1 Removing a fan assembly
Step 3 Remove the cable from the temperature and humidity sensor (T/H sensor).
When removing cables, label the cables with corresponding terminal ports for later
connection.
Step 4 Install the new fan assembly on the top of the aisle containment using a Phillips screwdriver.
Step 5 Connect the power cable to the new fan assembly.
----End
5.1.2 Replacing a Door Status Sensor
Prerequisites
Tools: Phillips screwdriver, insulation tape, step ladder.
Materials: A spare door status sensor of the same model is available and functional.
