FusionModule800 Smart Small Data Center
Maintenance Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Context
The BOM number of the door status sensor is 33010007. The door status sensor is usually
installed on the cabinet aisle door, as shown in Figure 5-2.

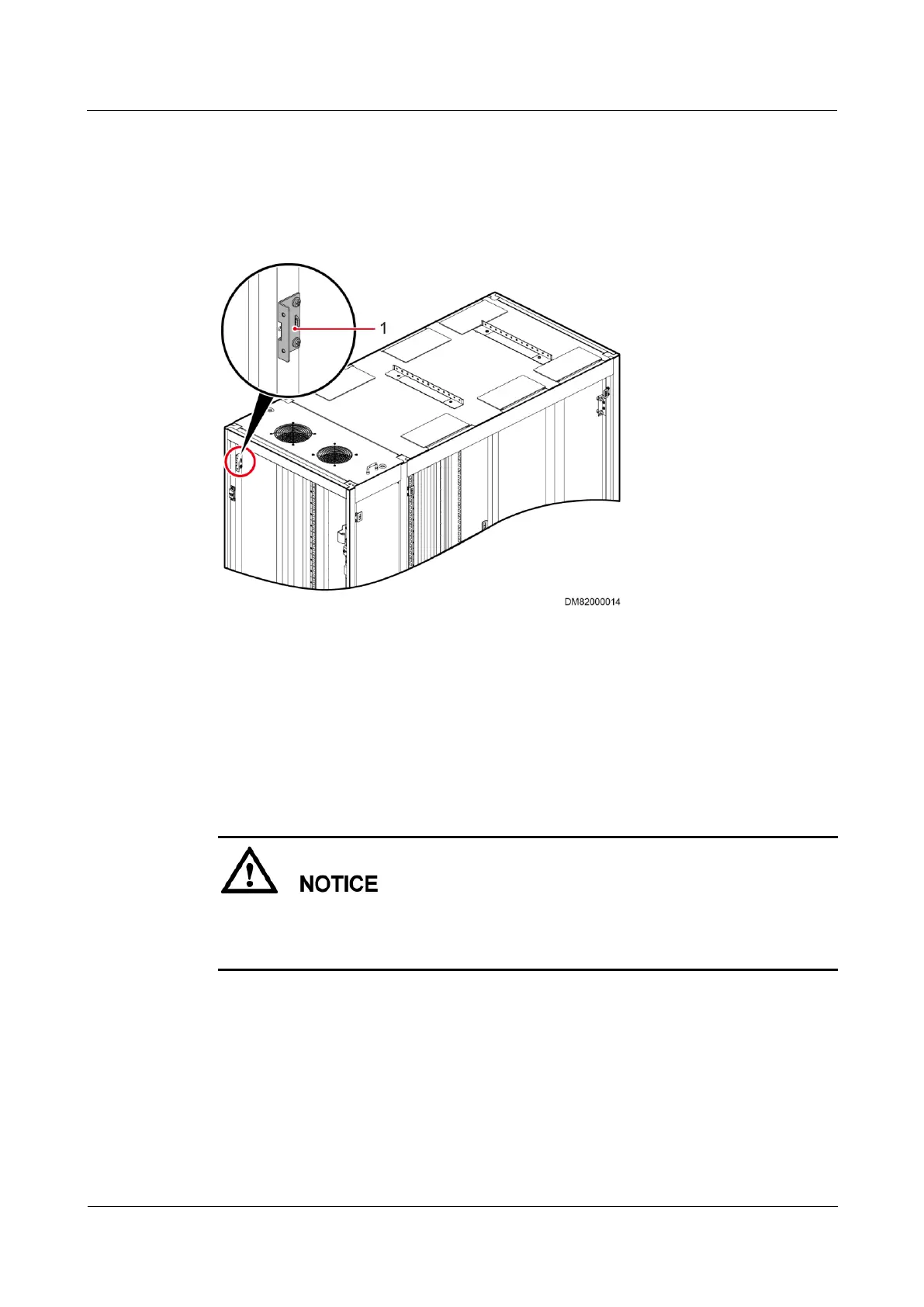

Figure 5-2 Door status sensor installation position
(1) Door status sensor installation position
Procedure
Step 1 Remove the cover of the door status sensor manually.
Step 2 Remove the communications cable using a Phillips screwdriver and insulate the cable.
When removing cables, label the cables with corresponding terminal ports for later
connection.
When removing cables, wrap bare cables with insulation tape to avoid hazards.
Step 3 Remove the door status sensor from the conversion bracket on the cabinet door using a
screwdriver, as shown in Figure 5-3.
