6.2.5 Supercapacitor
Installing the Supercapacitor
Step 1 Power off the G560. For details, see 3.1 Powering Off the Compute Node.
Step 2 Remove the G560. For details, see 3.3 Removing the G560.
Step 3 Place the G560 on the ESD floor.
Step 4 Remove the cover. For details, see Removing the Cover of a G560.
Step 5 Determine the location for installing the supercapacitor. See Figure 6-9.

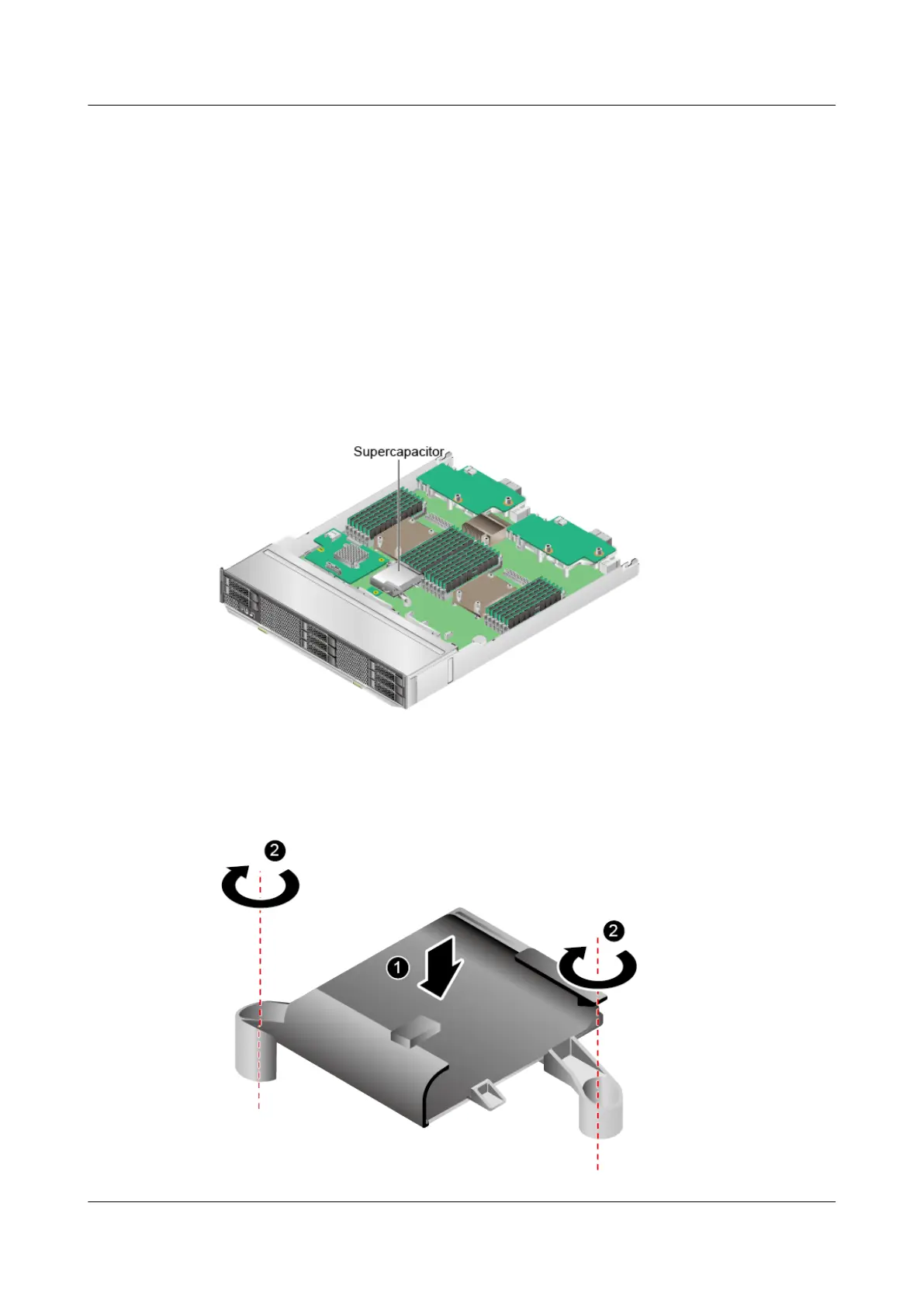

Figure 6-9 Location of the supercapacitor
Step 6 Place the supercapacitor tray vertically on the mainboard, align the screw holes on the
supercapacitor tray with those on the mainboard, and tighten the screws using a Phillips
screwdriver. See (1) and (2) in Figure 6-10.
Figure 6-10 Installing the supercapacitor tray
