NOTICE
An ESD bag can hold only one GP316.
----End
3.7 Cover
Removing the Cover of the G560
Step 1 Remove the G560 from the G5500 chassis. For details, see 3.3 Removing the G560.
Step 2 Place the G560 on the ESD floor.
Step 3 Press the button on the cover and push the cover backwards until it cannot move. See (1) and
(2) in Figure 3-10.

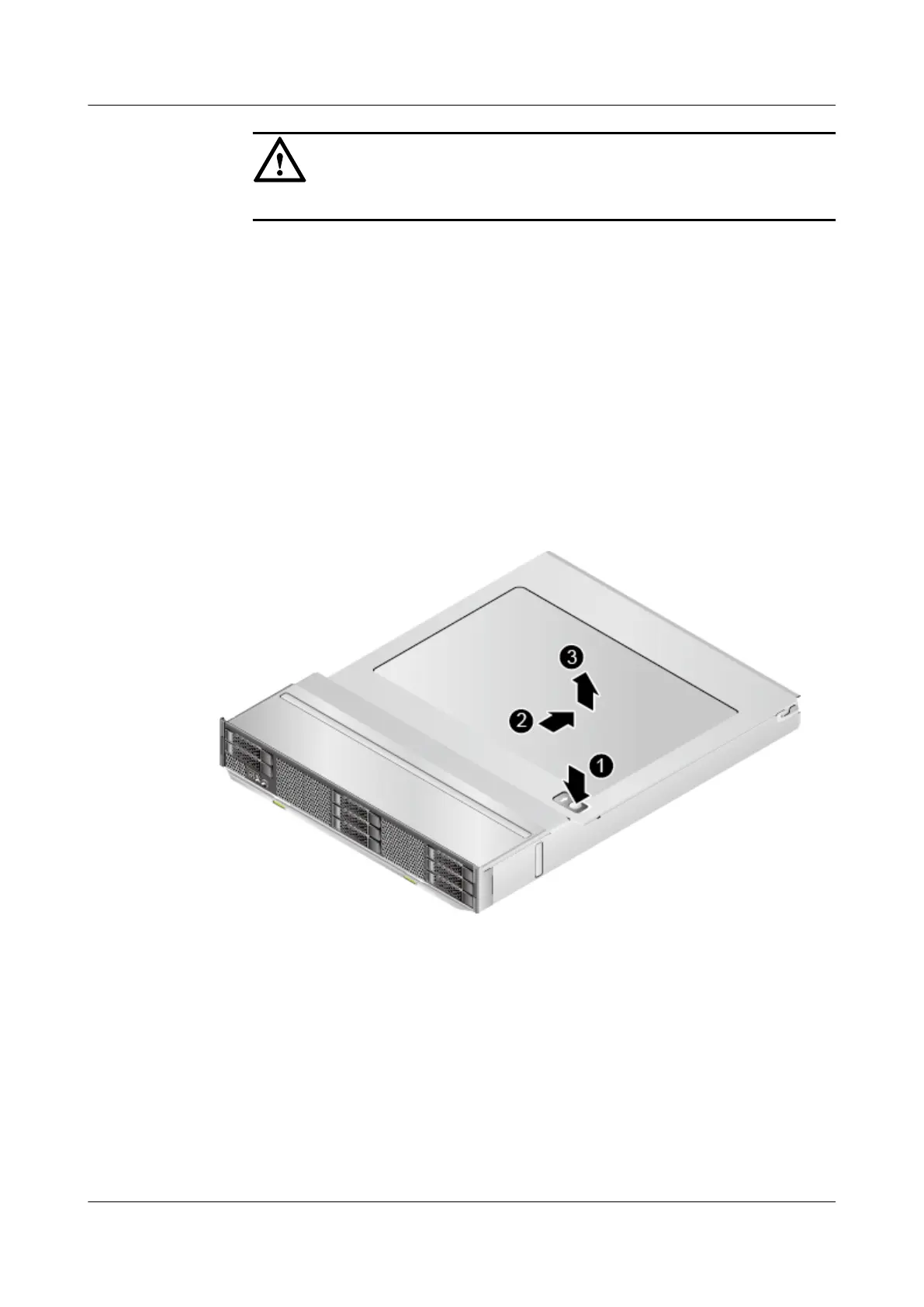

Figure 3-10 Removing the cover of the G560
Step 4 Lift the cover off the G560 and set it aside. See (3) in Figure 3-10.
----End
Installing the Cover of the G560
Step 1 Place the G560 on the ESD floor.
Step 2 Align the bottom tabs of the cover with the U-shaped slots in the G560 case, and place the
cover vertically on the G560. See (1) in Figure 3-11.
