Huawei FusionServer G5500 - 2.6 Hard Disk Slot Numbers

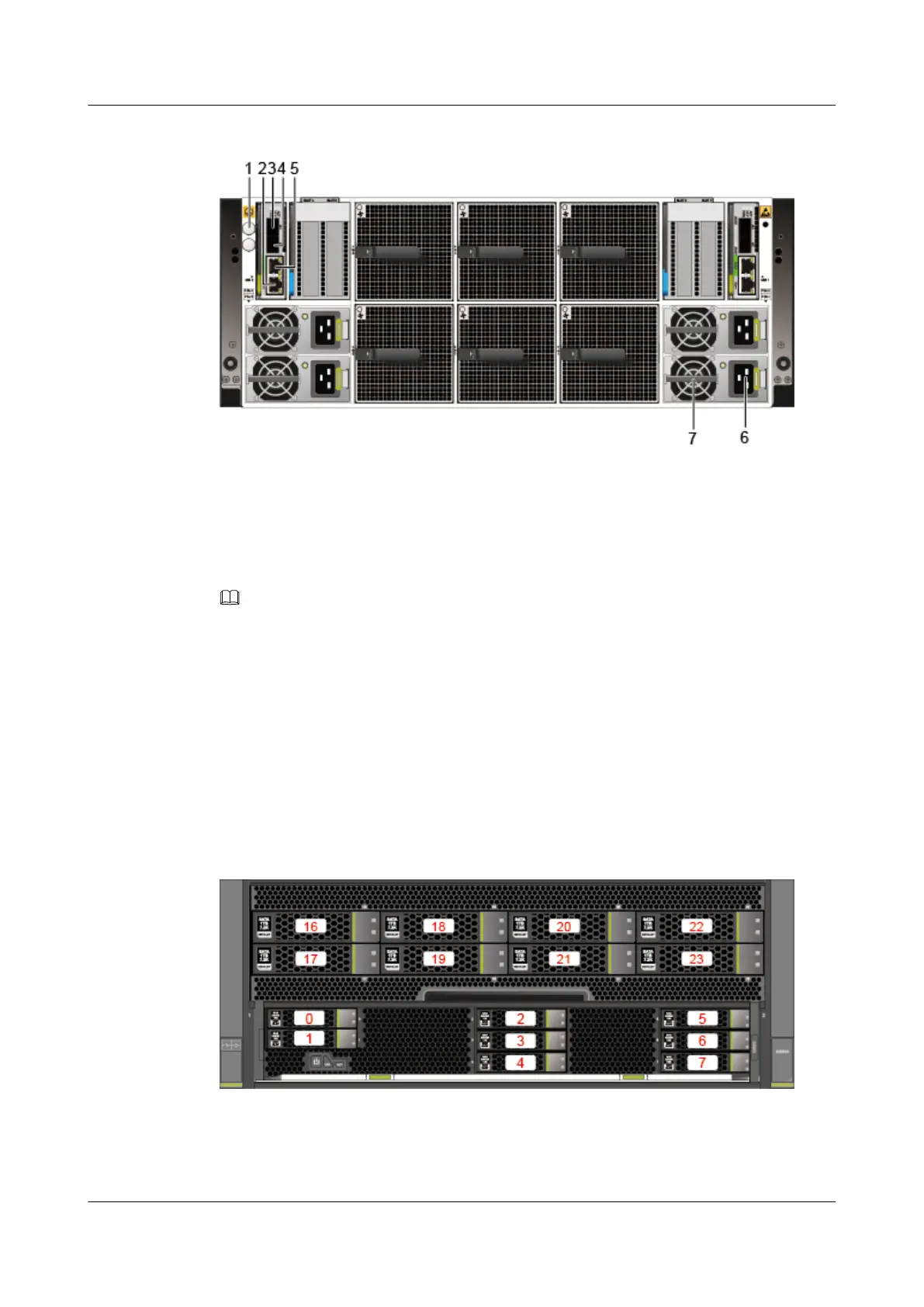

Figure 2-13 Ports on the rear panel of a server
1 PGND port 2 GE electrical port
3 10GE optical port 1 (LOM) 4 10GE optical port 2 (LOM)
5 Serial port 6 PSU socket
7 PSU handle - -
NOTE
l Lower the handle of a PSU after it is installed.
l If the G560 is installed, the 10GE optical ports are reserved. If the G530 V2 nodes are installed, they
serve as LOM ports.
2.6 Hard Disk Slot Numbers
Figure 2-14 shows hard disk slot numbers of a full-width compute node.
Figure 2-14 Hard disk slot numbers of a full-width compute node
Figure 2-15 shows hard disk slot numbers of a half-width compute node.
FusionServer G5500 Server
User Guide
2 Components
