Installing the Subrack
1
2
3

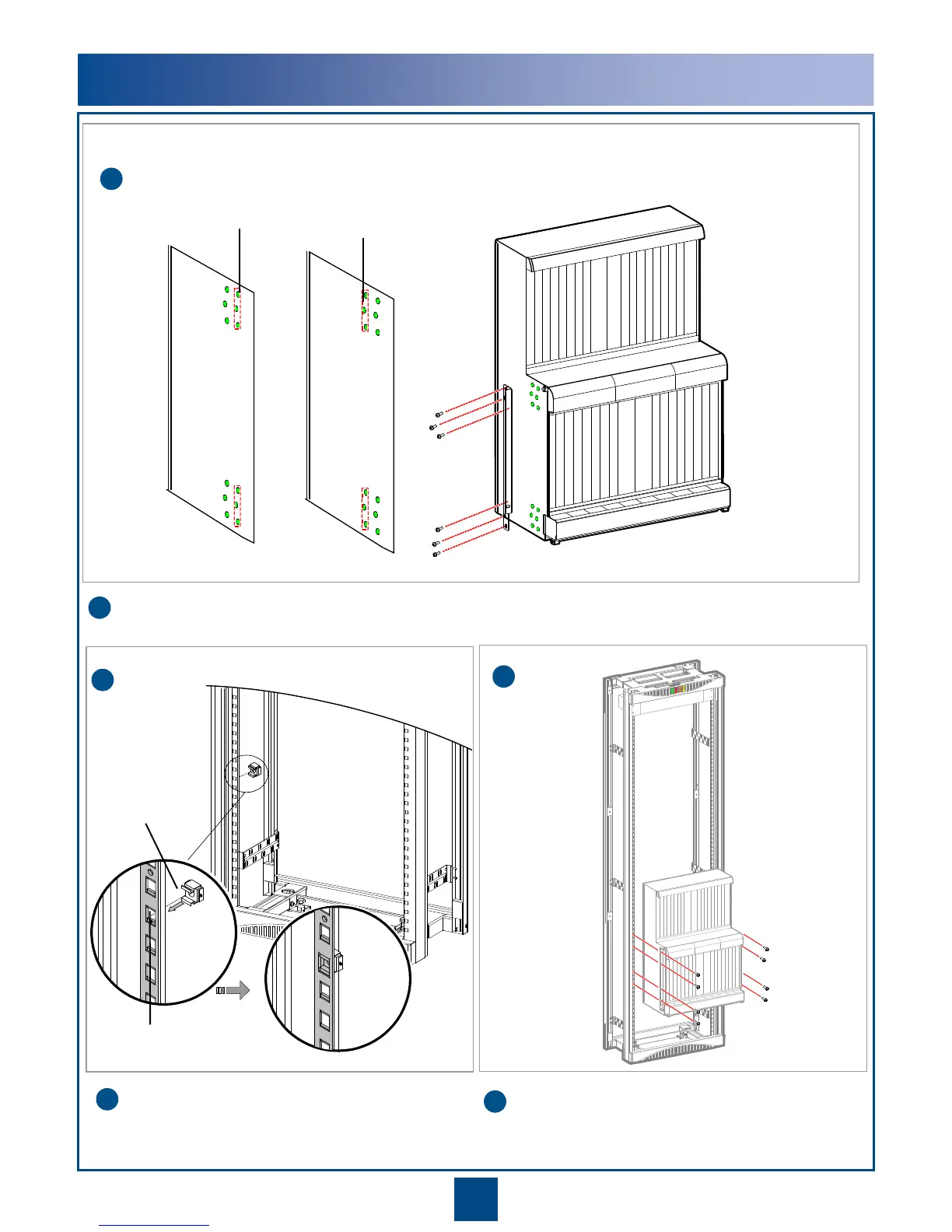

Ensure that the installation position of the mounting ears of the subrack matches the cabinet to be installed.
Install the floating nuts.
Place the subrack along the guide rail and insert it in
slowly. Use panel screws to fix the subrack to the front
column of the cabinet through the holes on the
mounting ears.
Floating nut
Holes for installing
mounting ears of the
subrack in the N63E
cabinet
Installation hole
1
2
3
Holes for installing
mounting ears of the
subrack in the T63
cabinet
