Huawei OptiX OSN 3500 - Board Configuration

Power
module
CPU
J13
J8
J12
J9
J10
J11
C
F
card
J18
3 21
9
3

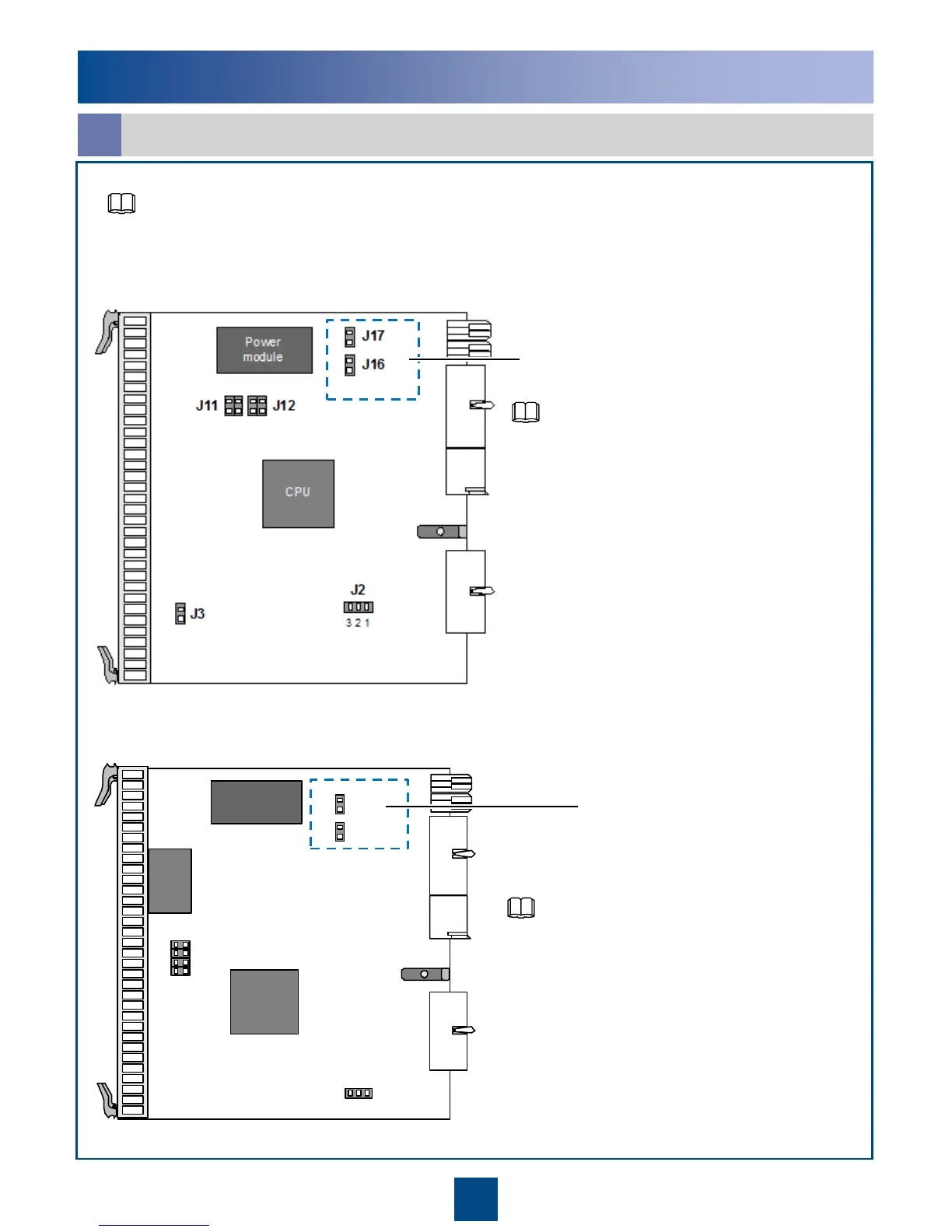

Checking the Power Jumpers on the Board
Check the power jumper settings and modify the settings as required. By default, the power jumpers are capped.
• Position of the jumpers of the N1GSCC (layout 1)
To set the input voltage of the
equipment
When the jumpers are not capped, the equipment is
supplied with the –60 V power.
When the jumpers are capped, the equipment is
supplied with the –48 V power.
• Position of the jumpers of the N1GSCC (layout 2)
To set the input voltage of the
equipment
NOTE
NOTE
NOTE
Checking Power Jumpers on the GSCC
a
When the jumpers are not capped, the equipment is
supplied with the –60 V power.
When the jumpers are capped, the equipment is
supplied with the –48 V power.
