Procedure
Step 1 Insert the power cable into the heat shrink tubing A, as shown in Figure A-7.
Step 2 Peel off a section of the insulation layer C from the power cable based on the cross-sectional
areas of the power cable conductors. A section of power cable conductor D with a length of L1
is exposed, as shown in Figure A-6. Table A-3 lists the recommended lengths of the insulation
layer to be peeled off (L1).

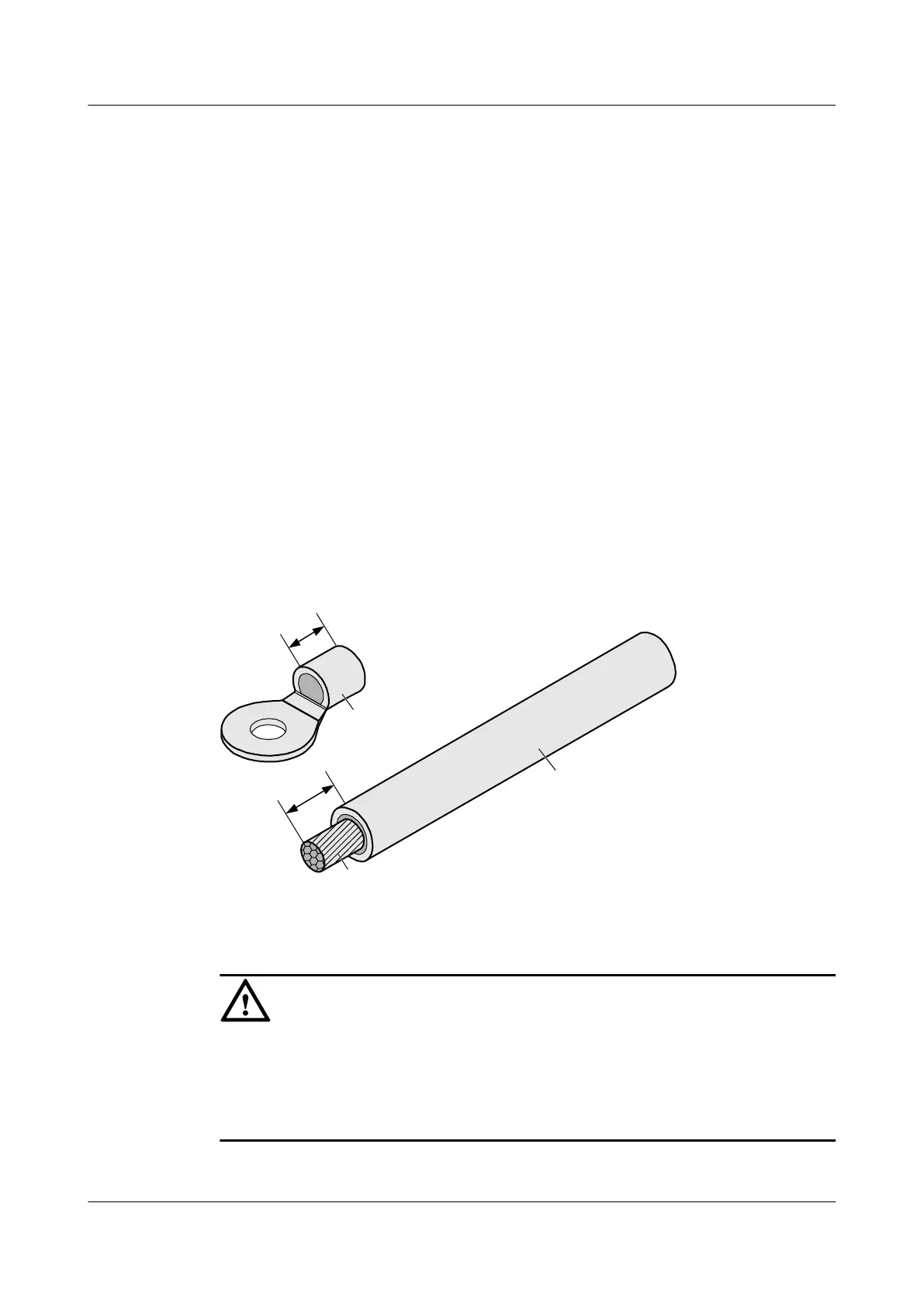

Figure A-6 Peeling off the insulation layer of the power cable
CAUTION
l When peeling off the insulation layer of the power cable, ensure that the conductor of the
power cable is not scratched.
l If the bare crimping terminals are not provided by Huawei, you can adjust L1 according to
the length of the crimping terminal. L1 = L + (1 or 2) mm.
