Cable Type External Diameter L1 (mm)
L2
(mm)
L3
(mm) Remarks
SFYV-75-2-2 4.4 mm 5-6 7-9 10-12 Dedicated to
national
backbone
155M-II

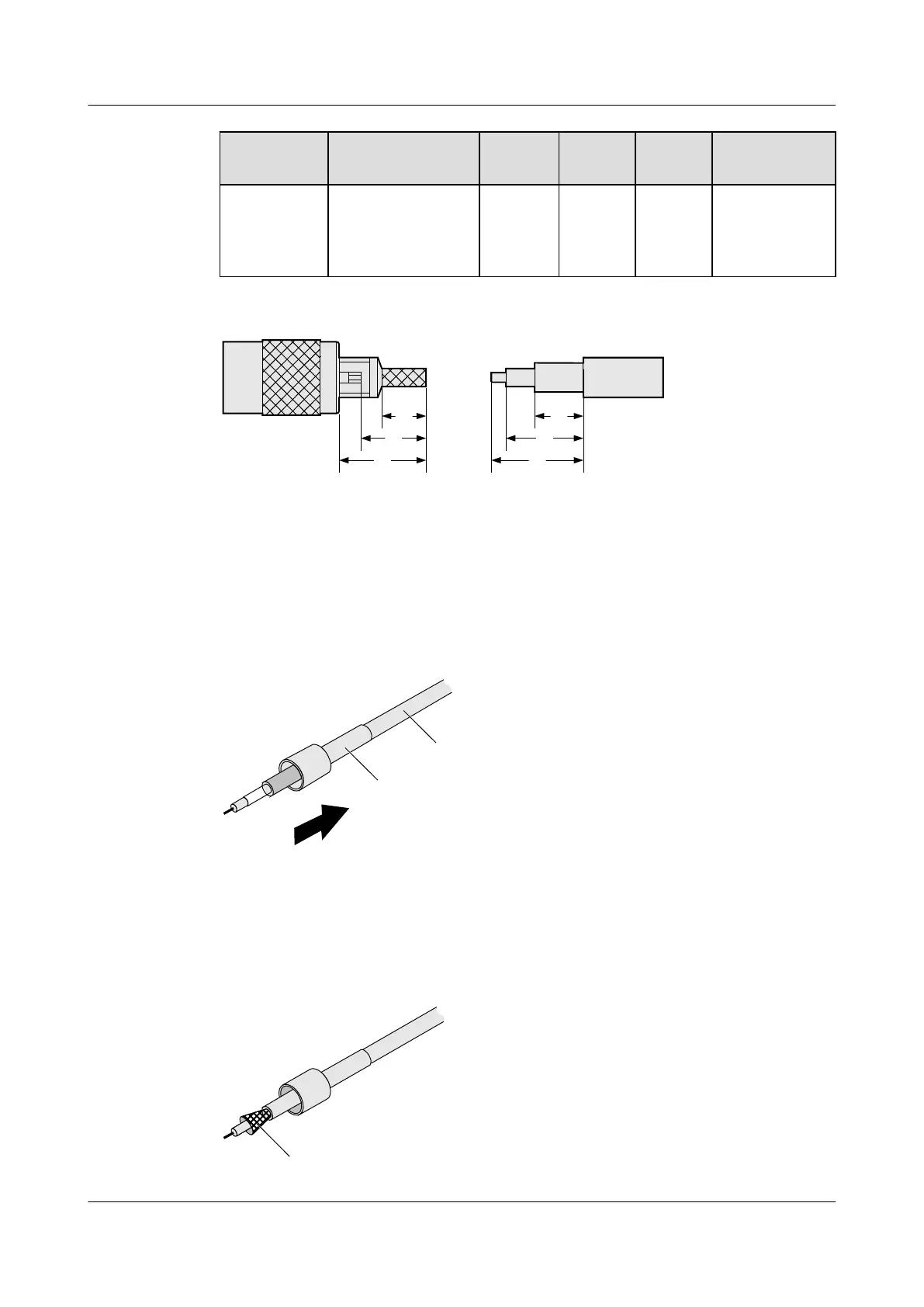

Figure A-22 Lengths of connectors and the peeled part of cables
L3
L2
L1
L3
L2
L1
Step 2 Put a coaxial cable into press-fitting sleeve A, as shown in Figure A-23.
Figure A-23 Putting a coaxial cable into a sleeve
C
A
Step 3 Expand outer conductor D of the coaxial cable into a bell-mouthed shape as shown in Figure
A-24.
Figure A-24 Expanding the outer conductor of a coaxial cable
D
