Step 4 Insert the inner conductor and the insulation part of the coaxial cable into plug B of the connector.
Wrap the outer conductor of the connector by using the outer conductor of the coaxial cable, as
shown in Figure A-25.

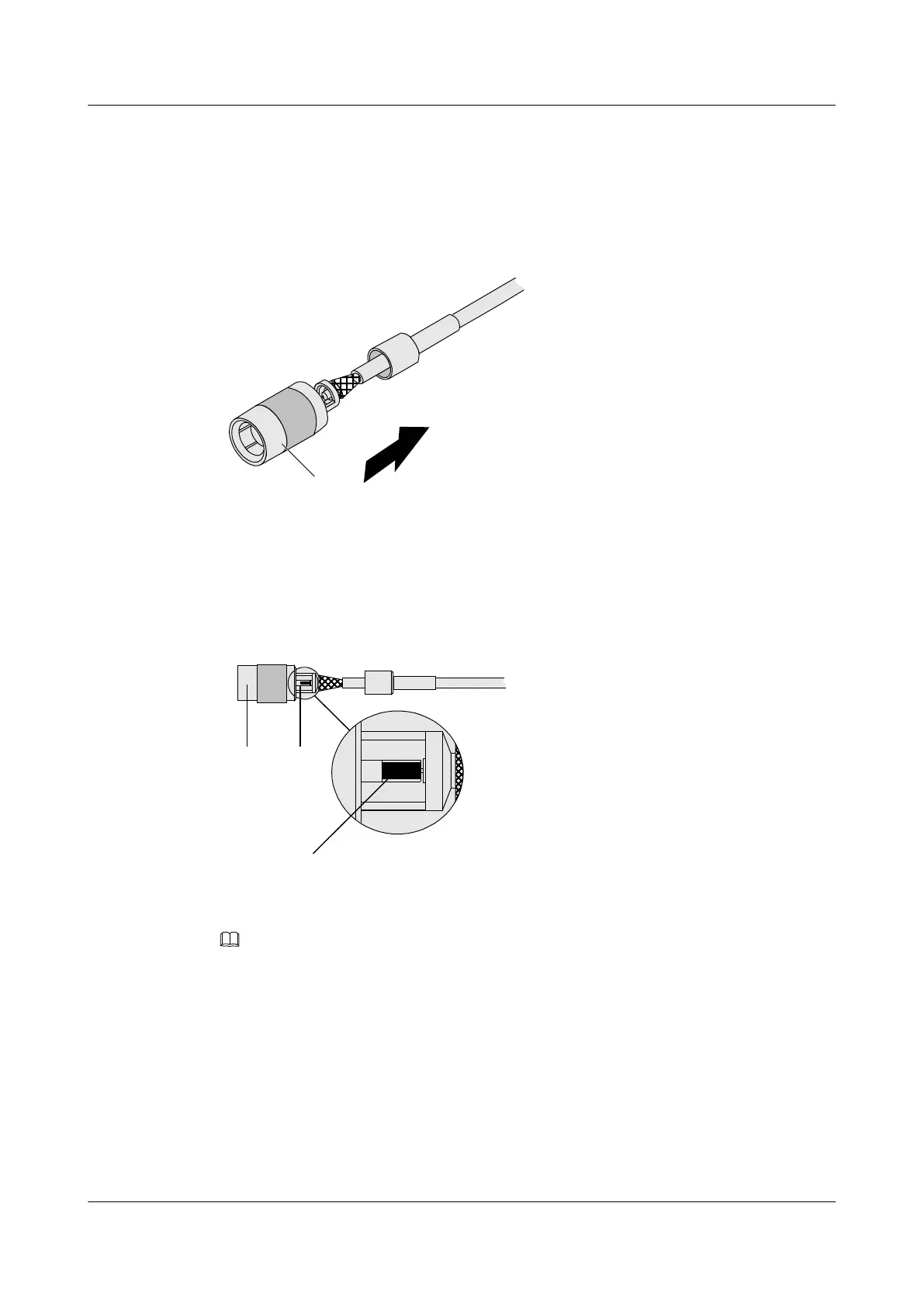

Figure A-25 Inserting a coaxial cable into a connector plug
Step 5 Solder inner conductor F of the coaxial cable with the inner conductor of plug B, as shown in
Figure A-26.
Figure A-26 Soldering the inner conductor
NOTE
After the welding, make sure that there is no metal wire (especially of the outer conductor) or redundant
soldering tin between the inner conductor and the outer conductor. Use the multimeter to test the insulation
state between the inner conductor and the outer conductor. Then, press-fit the outer conductor.
Step 6 Push press-fitting sleeve A towards the connector. Compact the outer conductor of the coaxial
cable. Press-fit sleeve A and the plug of the coaxial connector by using press-fitting tools, as
shown in Figure A-27.
