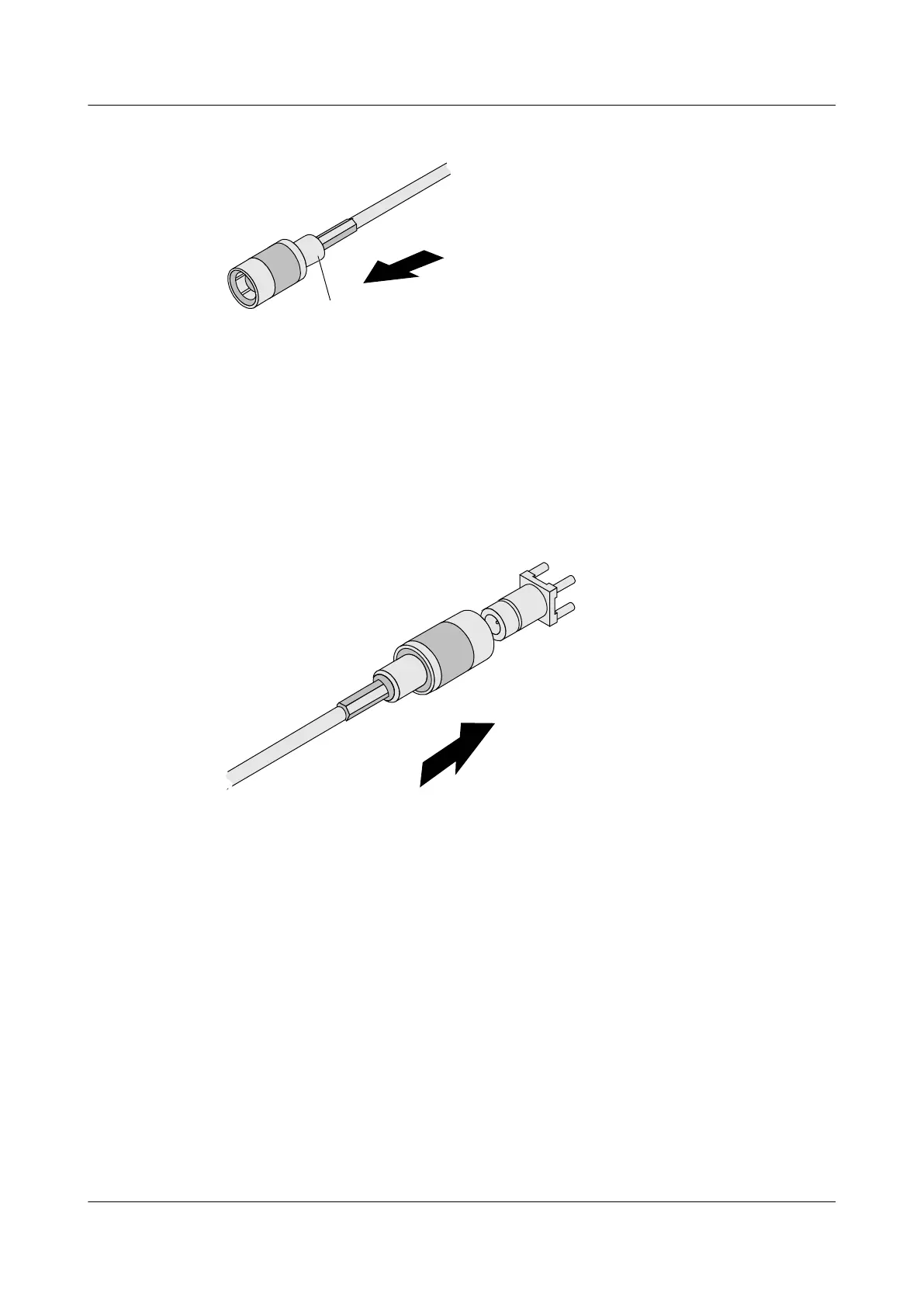

Figure A-27 Press-fitting the outer conductor
----End
Follow-up Procedure
After assembling the cable components, install the components on devices, as shown in Figure
A-28.
Figure A-28 Installing the components of a coaxial cable
Making the E1 Cable with the Straight SMB Male Connector
This topic describes how to make the E1 cable with the straight SMB male connector.
Recommended Tools
The recommended tools for making the E1 cable with the straight SMB male connector are as
follows:
l Wire stripper
l Wire crimping tool
l Diagonal pliers
l Wire clipper
l Electric soldering iron
