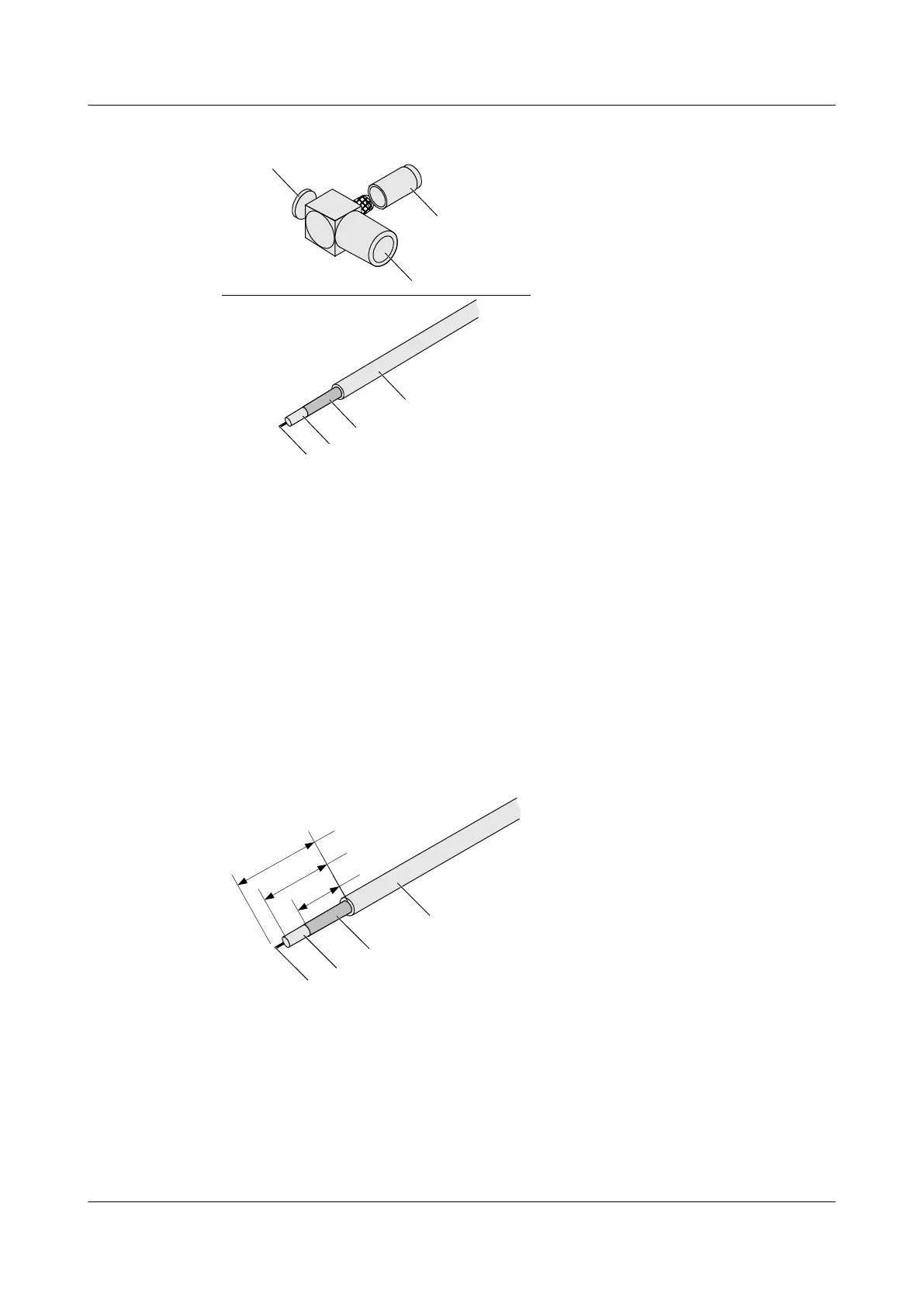

Figure A-38 Components
G
A
B
C
E
F
D
A: Press-fitting sleeve B: Screw of the connector C: Plug of connector D: Coaxial jacket
E: Outer conductor of the
coaxial cable
F: Insulation layer of the
coaxial cable
G: Inner conductor of the
coaxial cable
Procedure
Step 1 For the coaxial cable made of different materials, peel the coaxial cable to expose its outer
conductor (E), insulation layer (F), and inner conductor (G) according to the lengths shown in
Figure A-39. The lengths of the reserved outer conductor, the reserved insulation layer, and the
exposed jacket are L1, L2, and L3 respectively, as listed in Table A-7.
Figure A-39 Structure of the coaxial cable
E
F
D
G
L1
L2
L3
